Roland MC-09 - Manual (Page 68)

68

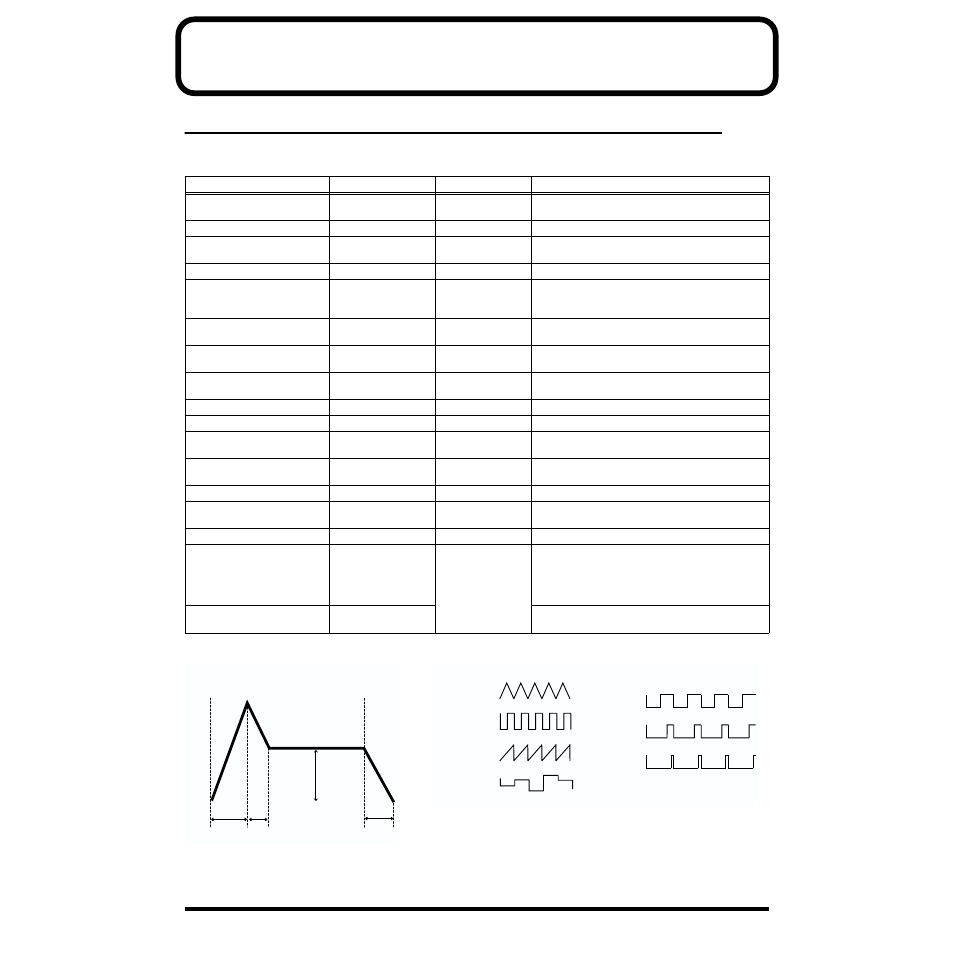

Parameter list
DSP synthesizer parameters
Common to LEAD and BASS
1
*1: For some tones, it is not possible to change the OSC waveform.
fig.2-4b
fig.wave
Parameter Range Controller Parameter function
LFO rate 0–120,
note value [SHIFT] + STEP [1] Specifies the LFO speed. If a note value is selected, the
LFO will synchronize to the tempo.
LFO waveform TRI, SQR, SAW, S-H [SHIFT] + STEP [2] Selects the LFO waveform
OSC waveform TRI, SAW, P10–P30,
P1S–P3S, P1D–P3D [SHIFT] + STEP [3] Selects the oscillator waveform
*1
OSC vibrato depth 0–127 [SHIFT] + STEP [4] Specifies the depth of vibrato
Filter type LP1, BP1, HP1, LP2,
BP2, HP2 [SHIFT] + STEP [5] Selects the type of filter (Low Pass Filter, Band Pass Fil-
ter, High Pass Filter)
* LP1: slope = -12 dB, LP2: slope = -24 dB
Filter envelope attack time 0–127 [SHIFT] + STEP [6] Specifies the time from when the keyboard pad is
pressed until the maximum filter change is reached
Filter envelope sustain level 0–127 [SHIFT] + STEP [7] Specifies the cutoff frequency at which the filter stops
changing
Filter envelope release time 0–127 [SHIFT] + STEP [8] Specifies the time from when the keyboard pad is re-
leased until the filter stops changing
Filter LFO depth 0–127 [SHIFT] + STEP [9] Applies a wah effect
Amp envelope depth 0–127 [SHIFT] + STEP [10] Adjusts the depth of the amp envelope
Amp envelope attack time 0–127 [SHIFT] + STEP [11] Specifies the time from when the keyboard pad is
pressed until the maximum volume is reached
Amp envelope decay time 0–127 [SHIFT] + STEP [12] Specifies the time from when the maximum volume is
reached until the sustain level is reached
Amp envelope sustain level 0–127 [SHIFT] + STEP [13] Specifies the level at which the volume stops changing
Amp envelope release time 0–127 [SHIFT] + STEP [14] Specifies the time from when the keyboard pad is re-
leased until the sound disappears
Amp LFO depth 0–127 [SHIFT] + STEP [15] Applies tremolo
Effect type
(when LEAD is selected) OD1-2 (overdrive 1–2),
DS1–2 (distortion 1–2),
PH1–4 (phaser 1–4),
SL1–2 (slicer 1–2),
OFF (no effect)
[SHIFT] + STEP [16]
Specifies the type of effect
Vintage mode
(when BASS is selected) OFF, ON Specifies whether the filter characteristics and parameter
ranges of a vintage synthesizer will be simulated
Attack
time
Decay
time
Sustain level
Release
time
Filter/Amplifier envelope
Note on
(pad ispressed)
Note off
(key is released)
TRI
(Triangle wave)
SQR
(Square wave)
SAW
(Sawtooth wave)
S-H
(Sample and
hold wave)
P10
P1S
P1D
P20
P2S
P2D
P30
P3S
P3D
LFO waveform OSC waveform
PWM = 0 : P10, P20, P30
PWM = slight : P1S, P2S, P3S
PWM = deep : P1D, P2D, P3D
