Master Roll Replacement

41

3

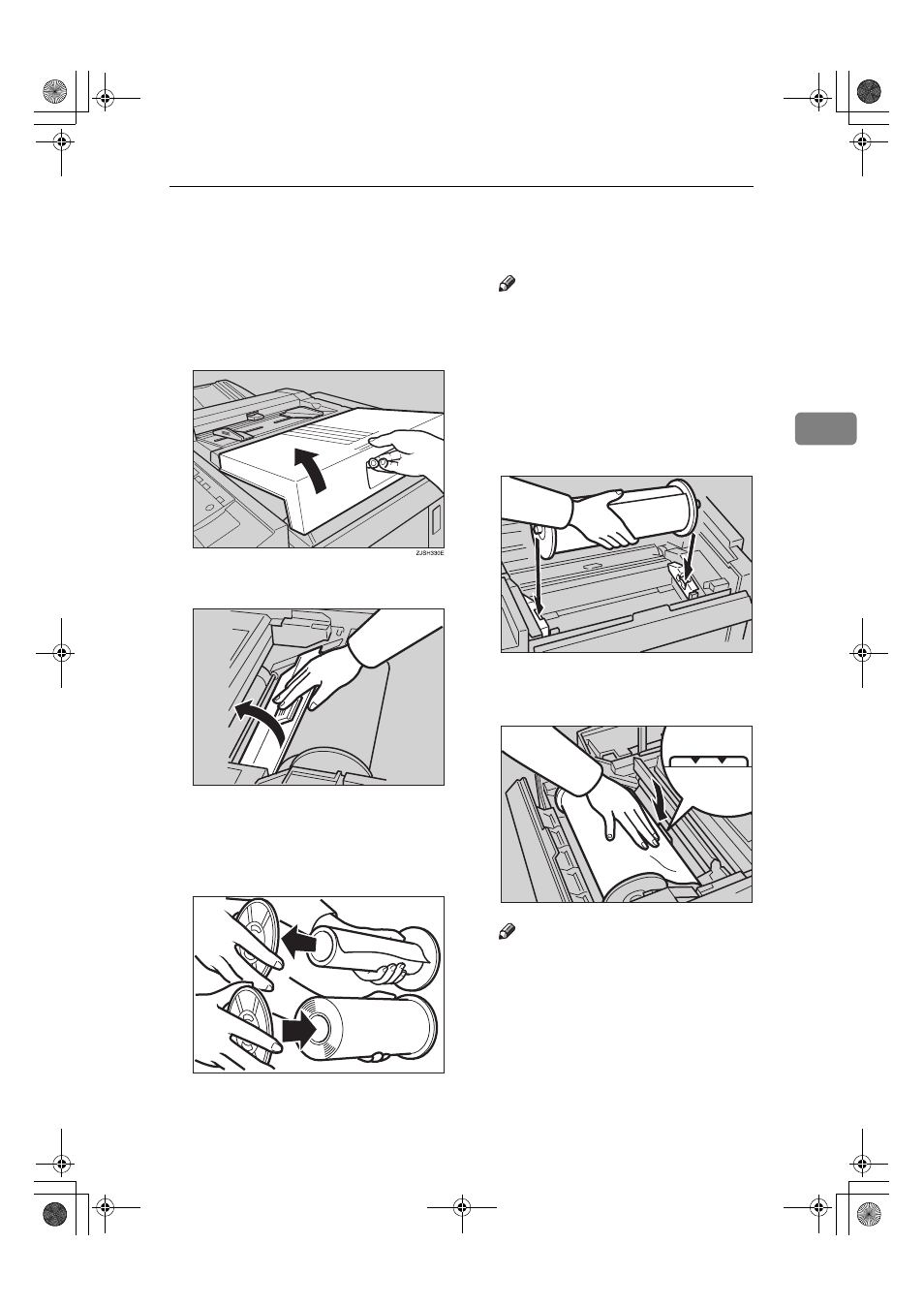

Master Roll Replacement

The Master End indicator (

C) lights

up when it is time to replace the mas-
ter roll.

AAAA

Open the right side cover.

BBBB

Open the plotter cover.

CCCC

Remove the used master roll and
pull out both spools. Then, insert
both spools into a new master
roll.

Note

❒ When the Master End indicator

lights up, it is necessary to re-
place the master roll even if
some master remains on the old
roll.

DDDD

Make sure that the new master
roll is positioned as shown in the
illustration.

EEEE

Set the paper edge of the master
roll as shown.

Note

❒ Rotate the spools backward to

take up any slack in the master.

TSLH02EE

TSLT010E

TSLH01XE

TSLH01UE
