Optional Functions
34
2
B

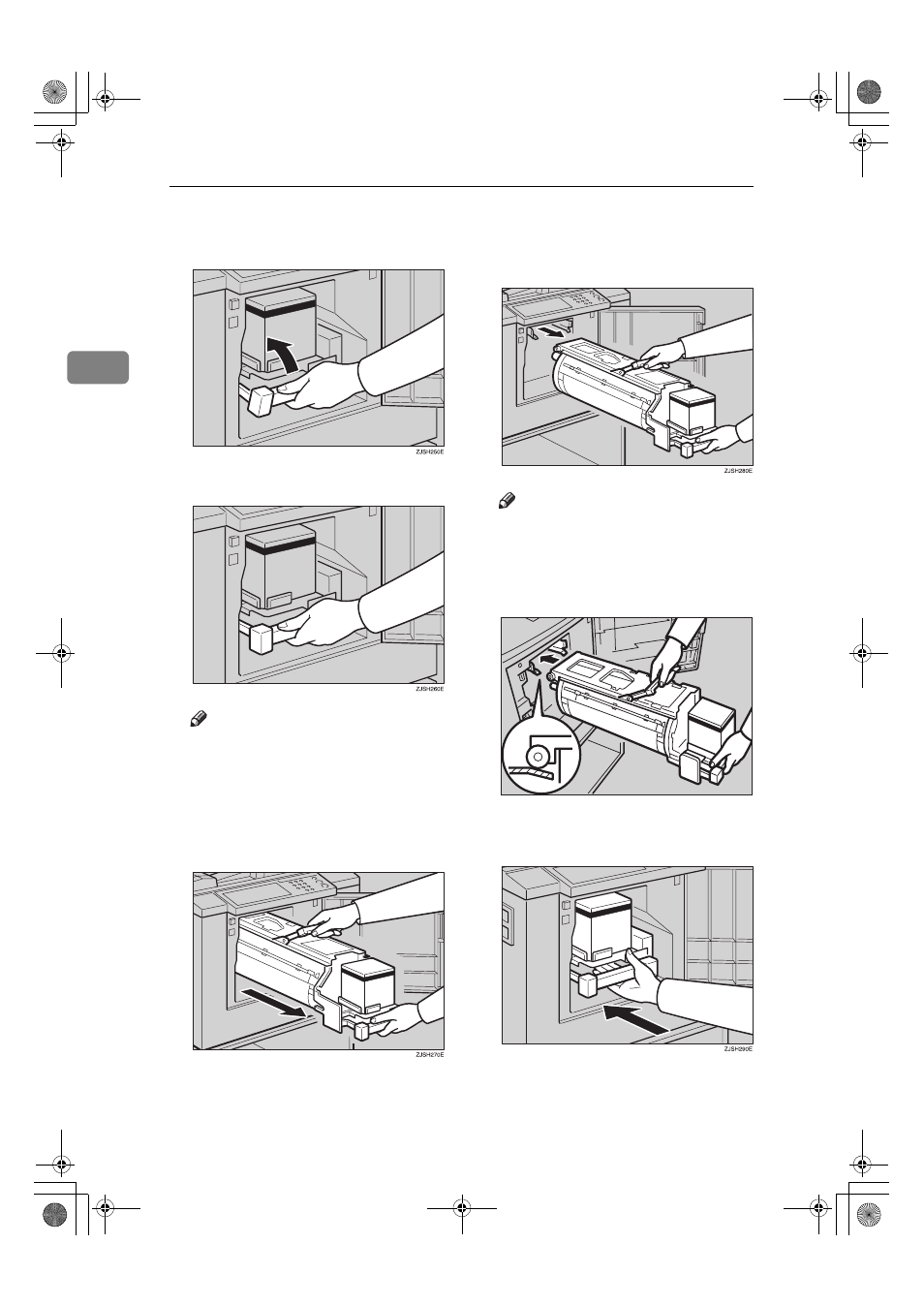

Lift the drum handle to unlock the
drum.
C
Slowly pull the drum out.
Note
❒ If you cannot pull out the drum
unit, turn off the main switch
and then try again.
D
Hold the rail on the drum and
slide out the drum while pulling
the release towards you.
E
Remove the drum unit from the
machine while holding the upper
drum stay.
Note
❒ Be careful not to let the drum
unit fall.
F
Set the color drum unit on the
guide rail.
G
Slide in the drum unit until it
locks in position.
TSLH01PE
