Replenishing Supplies
42
3

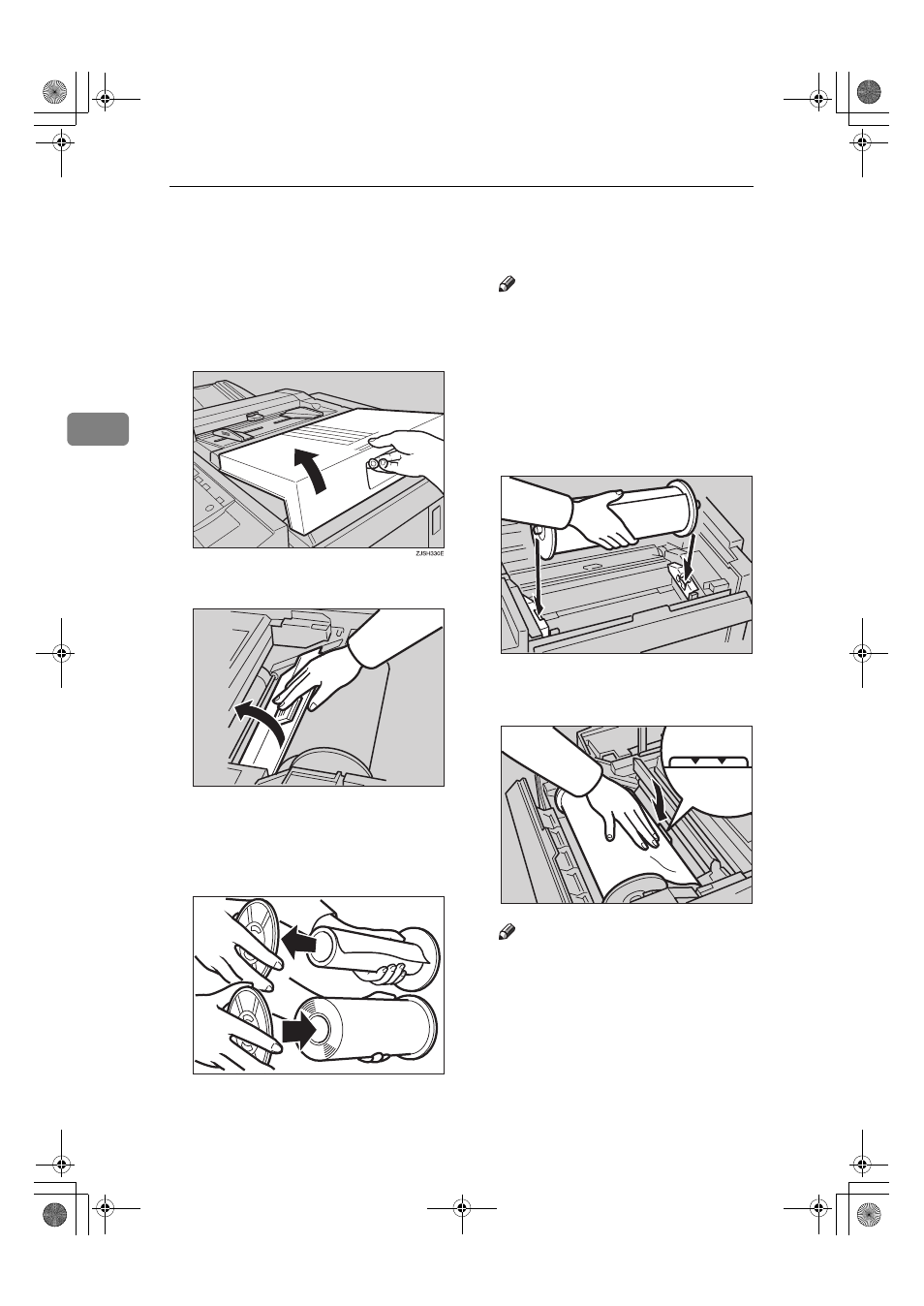

Master Roll Replacement
The Master End indicator (C) lights
up when it is time to replace the mas-
ter roll.
A
Open the right side cover.
B
Open the plotter cover.
C
Remove the used master roll and
pull out both spools. Then, insert
both spools into a new master
roll.
Note
❒ When the Master End indicator
lights up, it is necessary to re-
place the master roll even if
some master remains on the old
roll.
D
Make sure that the new master
roll is positioned as shown in the
illustration.
E
Set the paper edge of the master
roll as shown.
Note
❒ Rotate the spools backward to
take up any slack in the master.
TSLH02EE
TSLT010E
TSLH01XE
TSLH01UE
