Changing the colour drum unit – Ricoh PRIPORT JP730 User Manual
Page 40
Optional Functions
34
2

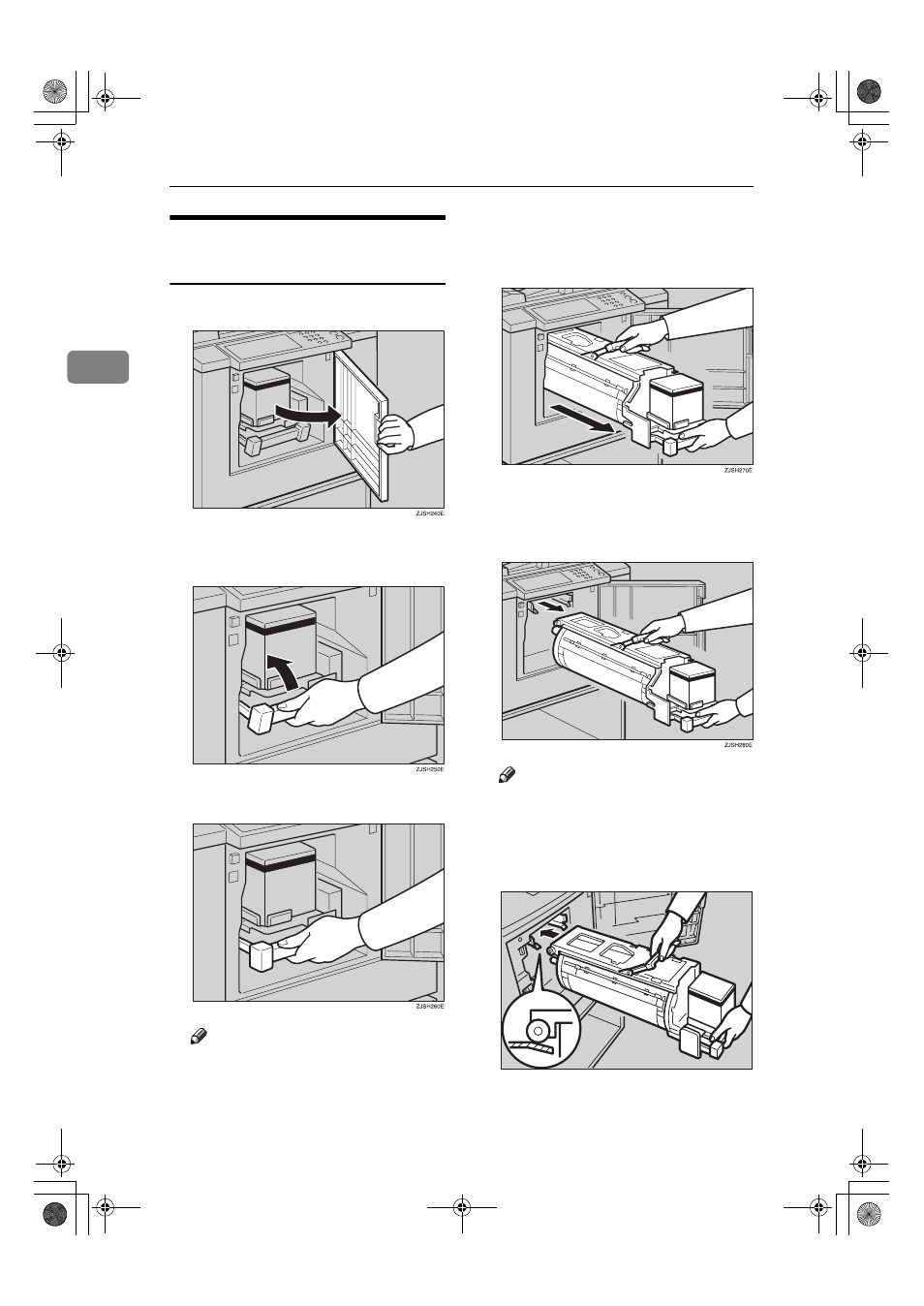

Changing the Colour Drum
Unit
AAAA
Open the front door.
BBBB
Lift the drum handle to unlock
the drum.
CCCC
Slowly pull the drum out.
Note
❒ If you cannot pull out the drum
unit, turn off the main switch
and then try again.
DDDD
Hold the rail on the drum and
slide out the drum while pulling
the release towards you.
EEEE
Remove the drum unit from the
machine while holding the upper
drum stay.
Note
❒ Be careful not to let the drum
unit fall.
FFFF
Set the colour drum unit on the
guide rail.
TSLH01PE
Titanium_GB-F_FM.book Page 34 Thursday, December 26, 2002 10:13 AM
