North Kingstown, RI 02852 USA

LDLINE

CONTROLS INC.

G

www.goldlinecontrols.com
888-921-7665

092042A

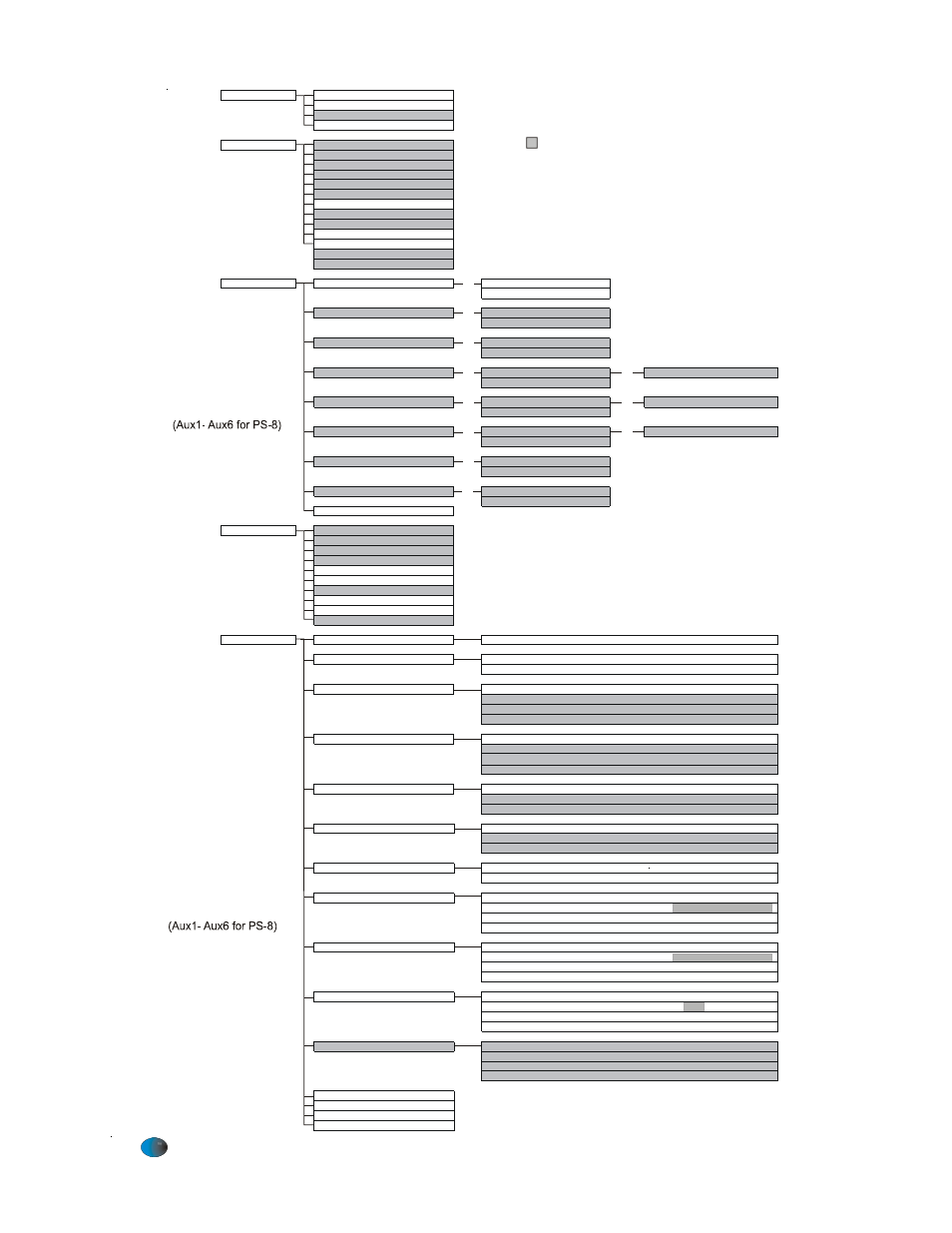

Aqua Logic Programming Flow Chart

denotes conditional items

}

}

PS-4 only

PS-4 only

pool/spa config.

lights config

aux1 config

aux2 config

valve3 config

valve4 config

all timeclocks (7 or 2/5 day)

time format (12 or 24 hr)

units (english/metric)

reset config to default

interlock (enabled/disabled)

freeze protection (enabled/disabled)

valve4 name

pool only / spa only / pool & spa

function (manual on/off, timeclock, countdown timer)

spillover (enabled/disabled)

aux2 name

interlock (enabled/disabled)

filter operation (pool only/spa spillover)

lights name

aux1 name

function (manual on/off, timeclock, countdown timer, solar, low speed filter pump)

function (manual on/off, timeclock, countdown timer, solar, low speed filter pump)

interlock (enabled/disabled)

freeze protection (enabled/disabled)

function (manual on/off, timeclock, countdown timer, solar, in-floor cleaner)

function (manual on/off, timeclock, countdown timer, solar, in-floor cleaner)

freeze protection (enabled/disabled)

valve3 name

interlock (enabled/disabled)

freeze protection (enabled/disabled)

default menu

day and time

air/water temperature

chlorinator setting

salt level

settings menu

spa heater1 temp (off, 65ºF-104ºF)

pool heater1 temp (off, 65ºF-104ºF)

spa heater2 temp (off, 65ºF-104ºF)

pool heater2 temp (off, 65ºF-104ºF)

spa solar temp (off, 65ºF-104ºF)

pool solar temp (off, 65ºF-104ºF)

superchlorinate (on/off)

spa chlorinator setting (0-100%)

pool chlorinator setting (0-100%)

day and time

display light (always on/60 sec)

teach wireless remote

wireless channel

timers menu

filter pump -- all days

(or)

filter pump -- weekends

filter pump --weekdays

low speed -- all days

(or)

low speed -- weekends

low speed --weekdays

spa -- all days

(or)

spa -- weekends

spa --weekdays

lights -- all days

(or)

lights -- weekends

(or)

lights -- countdown

lights -- weekdays

aux1 -- all days

(or)

aux1 -- weekends

(or)

aux1 -- countdown

aux1 -- weekdays

aux2 -- all days

(or)

aux2 -- weekends

(or)

aux2 -- countdown

aux2 -- weekdays

valve3 -- all days

(or)

valve3 -- weekends
valve3 -- weekdays

valve4 -- all days

(or)

valve4 -- weekends
valve4 -- weekdays

super chlorinate hours (1-96)

diagnostic menu

chlorinator diagnostics

instant salt
flow switch

cell temperature sensor

water sensor

air sensor

solar sensor

main software revision

display software revision

RF base software revision

configuration menu

chlorinator

filter config.

heater1 config

heater1 name

heater extend (enabled/disabled)

heater2 config

heater2 name

heater extend (enabled/disabled)

solar config.

solar (enabled/disabled)

solar extend (enabled/disabled)
solar priority (enabled/disabled)

chlorinator (enabled/disabled)

heater2 (enabled/disabled)

heater cooldown (enabled/disabled)

1 speed, 2 speed

freeze protection (enabled/disabled)

heater1 (enabled/disabled)

heater cooldown (enabled/disabled)
