If multiple remote display/keypads are installed: Never connect more than 2 wires to any terminal
block. Two remotes can be wired back to the Aqua Logic main unit or the second display/keypad (and
third, if applicable) can be “daisy chained” with one display/keypad wired to the next. The maximum wire
run from the Aqua Logic main unit to the furthest remote display/keypad is 500 ft (160m).

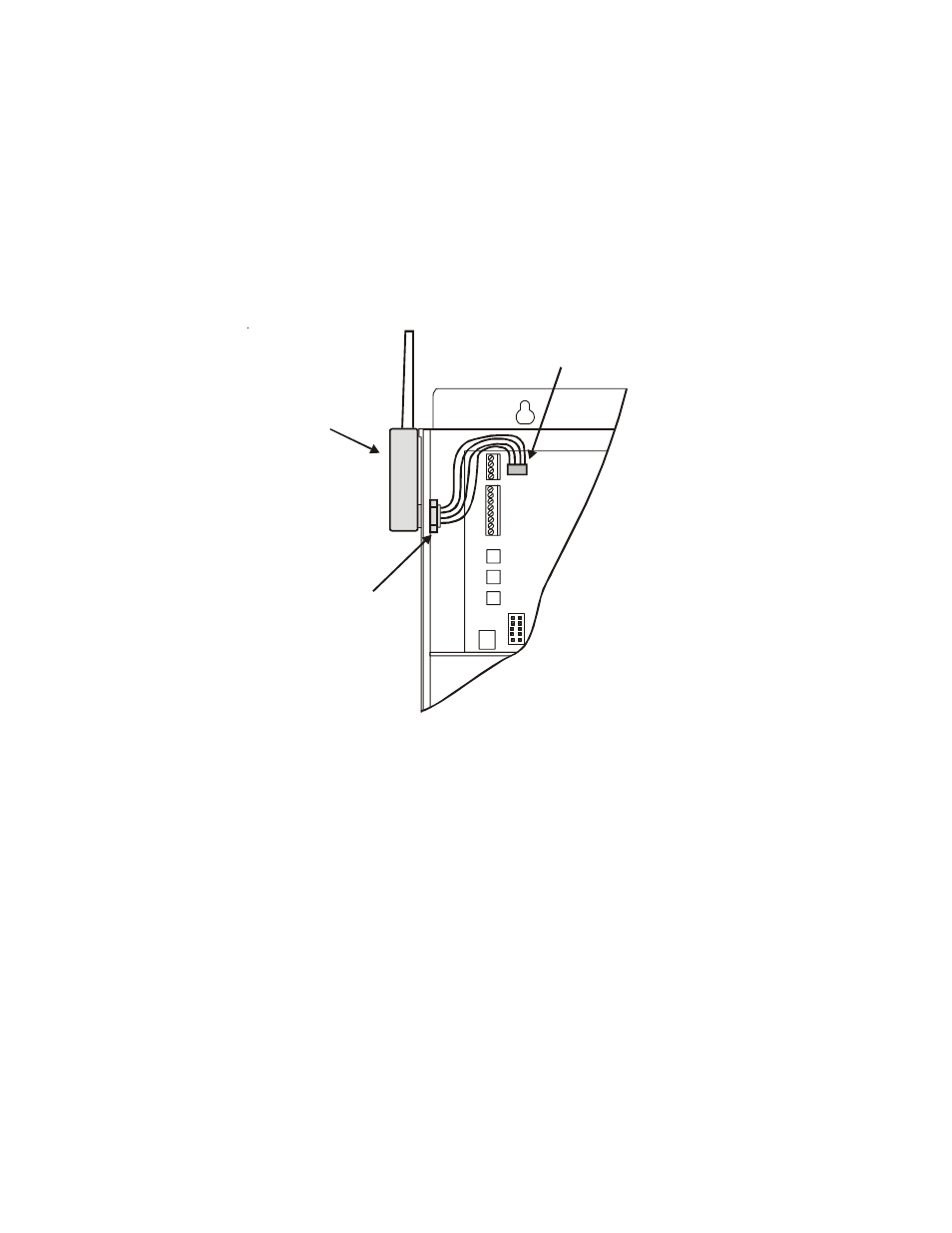

Base Receiver
Plug in the pigtail connector from the wireless base receiver into the “wireless” connector on the main PCB
in the Aqua Logic control unit.
Flow Switch
Only applicable if the chlorinator function is enabled. The flow switch cable plugs into the Aqua Logic
Control Center at the position shown in the diagram on page 10. Ensure that the connector catch “snaps”
in order to provide a reliable connection.
Turbo Cell
Only applicable if the chlorinator function is enabled. The Turbo Cell should be plugged in after the
Aqua Logic cover panel is put back in place. Refer to the diagram on page 10 for the location of the
connector.
18
Base Receiver
(AQL-BASE-RF)
Tighten nut
Aqua Logic
Main PCB
Connector for
Base Receiver
