Temperature Sensors

The Aqua Logic utilizes 10K ohm thermistor type sensors. Two sensors (water temperature and air

temperature) are included. If the Aqua Logic is being used to control a solar heating system, a third “solar”

sensor will be required. The sensors are provided with a 12 ft. cable. If a longer cable is required, contact

the Goldline service dept. (921-888-7665) for information on suitable cable types and splices.

See

Temperature Sensors on page 6 for directions on installing the sensors.

Wired Remote Display/Keypad

The Aqua Logic main unit can connect to a maximum of 3 remote wired display/keypads. One remote

wired display/keypad is included with the Aqua Logic, additional wired display/keypads must be ordered

separately.

Use four conductor cable (typically phone cable) to connect the wired remote display/keypad with the

Aqua Logic Control Center as shown below. The maximum wiring distance is 500ft. (160m). Note that

the terminals on both the Aqua Logic main unit and the wired remote display/keypad are numbered:

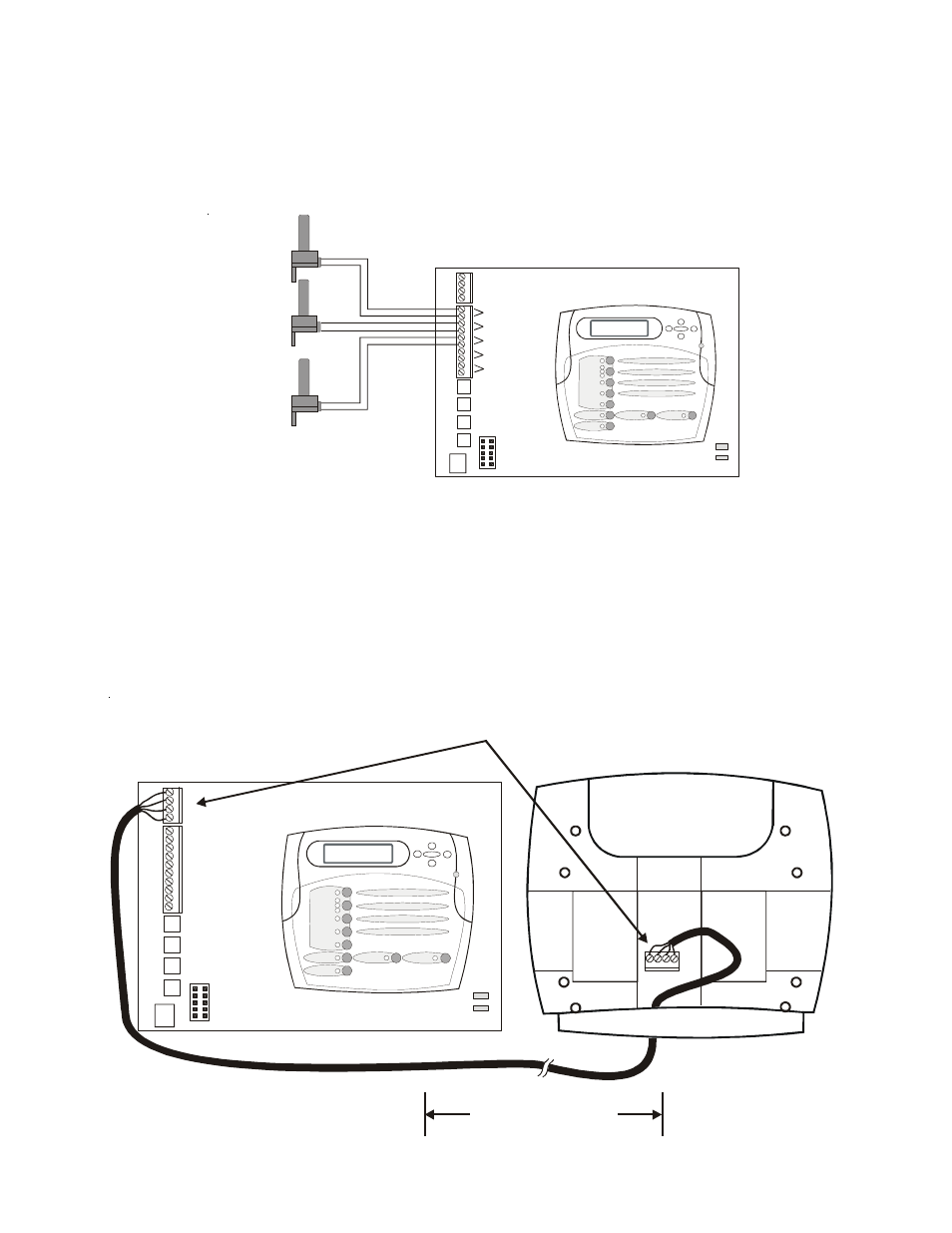

Connect 1 to 1, 2 to 2, etc. Refer to diagram below.

17

AIR

SENSOR

SOLAR

SENSOR

POOL/SPA

SENSOR

Air
Solar

Pool/Spa

Heater1
Heater2

Wired Remote

Display unit

Aqua Logic Control Center

500 ft max

1

2

3

4

Connect screw terminals
“1” to “1”, “2” to “2”, etc.

1

2

3

4
