Grounding and Bonding
Connect a ground wire from the primary electrical panel to the Aqua Logic ground bus bar. Also ground
each piece of high voltage (120 or 240VAC) equipment that is connected to the Aqua Logic control relays
or circuit breakers.
The Aqua Logic should also be connected to the pool bonding system by an 8AWG (6AWG for Canada)
wire. A lug for bonding (2 for Canada) is provided on the outside/bottom of the Aqua Logic enclosure.
Circuit Breaker Installation and Wiring
Circuit breakers are to supplied by the installer. See the chart below for a list of suitable circuit breakers
that can be used. Follow the code and the circuit breaker manufacturers rating requirements regarding the
size and temperature rating for wiring. Note that some pool equipment may be required to be connected
to ground fault circuit breakers—check local and NEC (CEC) codes.
General Purpose Outlet
If desired, a duplex receptacle with weatherproof cover (supplied by installer) may be installed in the
knockouts on the lower right side of the Aqua Logic enclosure. Per code, the receptacle should be a
GFCI type. Alternatively, connect a standard receptacle to a GFCB.

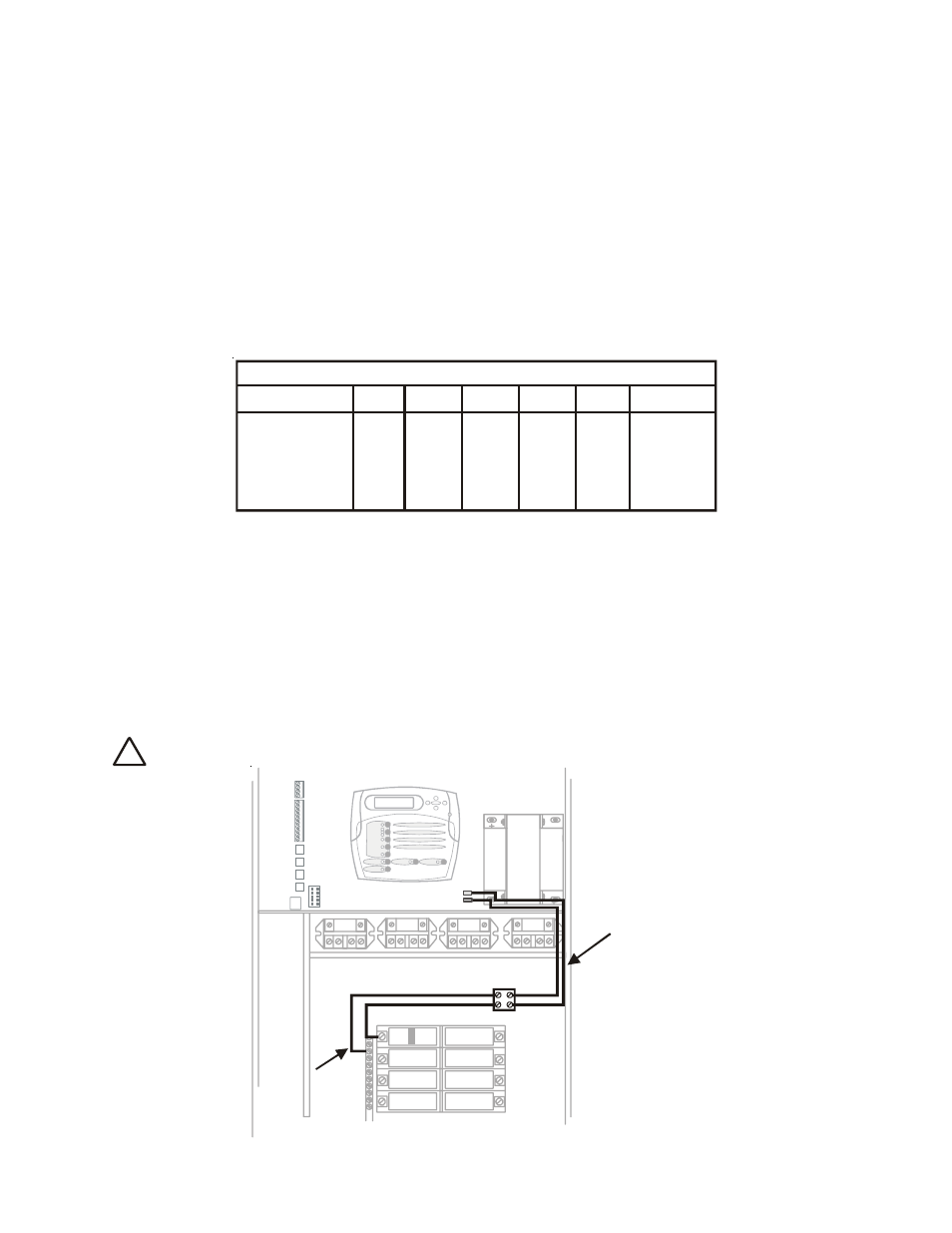

Aqua Logic Control Power
The Aqua Logic requires 120VAC, 2A power to operate the control logic circuits and the chlorinator.
This power should be connected to one of the circuit breakers.
! WARNING: 120VAC only (permanent damage if connected to 240V)
11
Cutler-Hammer
Murray
Siemens
Square D
Thomas & Betts
Manufacturer Single Double Quad Twin GFCB Filler Plates
BR
MP-T
QP
HOM
TB
BR
MP-T
QP
HOM
TB
BRD
MH-T
QT
HOMT
TBBD
BRD
MH-T
QT
HOMT
TBBQ
GFCB
MP-GT
QPF
HOM
GFB
BRFP
LX100FP
QF3
HOMFP
FP-1C-TB
SUITABLE LISTED BREAKERS
Factory
Prewired
Field
Wired
120, 2VA
