Raypak HI DELTA 1802B - Manual

Catalog No.: 6000.342D Effective: 9-01-09 Replaces: 6-22-08
Job:
Engineer:
Contractor:
Prepared By: Date:
Model: Indoor/Outdoor: MBTUH Input:
Sealed Combustion Chamber
100% Factory Fire Tested
Efficiency: 85%
Minimum Non-condensing Inlet Temperature: 105°F
Thermal Shock Proof Heat Exchanger
Limited Twenty-year Thermal Shock Warranty
Limited Five-year Heat Exchanger Warranty
Full Safety Diagnostics with Fault History
PolyTuf Powder Coated Cabinet
No Combustible Floor Shield Required
Fan-assisted
Non-ferrous Bypass
Patented Burner Security Blanket
Heat Exchanger
ƒ
Brass Headers
ƒ ASME Inspected and Stamped
160 PSIG Working Pressure
ƒ National Board Approved
ƒ Cupro Nickel Finned Tubing
ƒ ASME Steel Tube Sheet
ƒ Silicone High Temp O-Rings
ƒ 125 PSIG ASME Pressure Relief Valve
ƒ Temperature and Pressure Gauge
ƒ Water Connections
Left – Standard
Right – Option A-6
ƒ Bronze Pump, 120V, 60Hz
ƒ Non-ferrous Pool Bypass
Controls
ƒ
120V, 60Hz, 1 ∅ Power Supply
ƒ 120/24V 60Hz Transformer
ƒ 100% Shut-off/Lockout
ƒ Hot Surface Ignition Systems (2)
ƒ Remote Flame Sensors (2)
ƒ High Limit Control, Auto Reset
ƒ On/Off Power Switch
ƒ Manual Shut-off, Front-mounted
ƒ Flow Switch
ƒ Blocked Vent Pressure Switch
ƒ Combustion Air Proving Switches
ƒ Economaster Pump Time Delay
ƒ Poolstat
ƒ Diagnostic Panel with LCD Display
2 Lines, 20 Characters
Gas Train
ƒ
Combination Valves
ƒ On/Off Firing
ƒ Low Gas Pressure Switch, Manual
ƒ Fuel
Natural Gas
Propane Gas
ƒ Design Certified ANSI Z21.56/
CSA 4.7 (P models)
ƒ Design Certified ANSI Z21.10.3/
CSA 4.3 (WHP models)
Burner
ƒ
Ultra-low NOx:
Less than 20 PPM
Construction
ƒ
Indoor/Outdoor Construction
ƒ Enclosed Front Controls
Venting
ƒ
Vent Location
Top – Standard
Rear – Option D-14
ƒ Vent Termination Cap
Outdoor – Option D-11
Indoor, Horizontal –
Option D-15
Indoor, Vertical (by others)
ƒ Combustion Air
In-Line Filter Kit (TruSeal
only) – Option D-17
Air Intake Elbow –
Option D-16
Options
C-6 Ignition Module, Manual Reset
D-21 TruSeal™ Direct Vent
Right Side
Left Side (Model 1802B
Only)
F-10 Low Water Cut-off, Remote
Probe
P-__ Cold Water Run System
(See Page 3)
S-2 Dual High Gas Pressure
Switches, Manual Reset
X-1 SureRack Kit
X-2 SureRack Kit Above Grade
Add-on (used with X-1)
Y-241 Temperature Controller,
1-4 Stages
Regulatory Agency Requirements
G-1 CSD-1

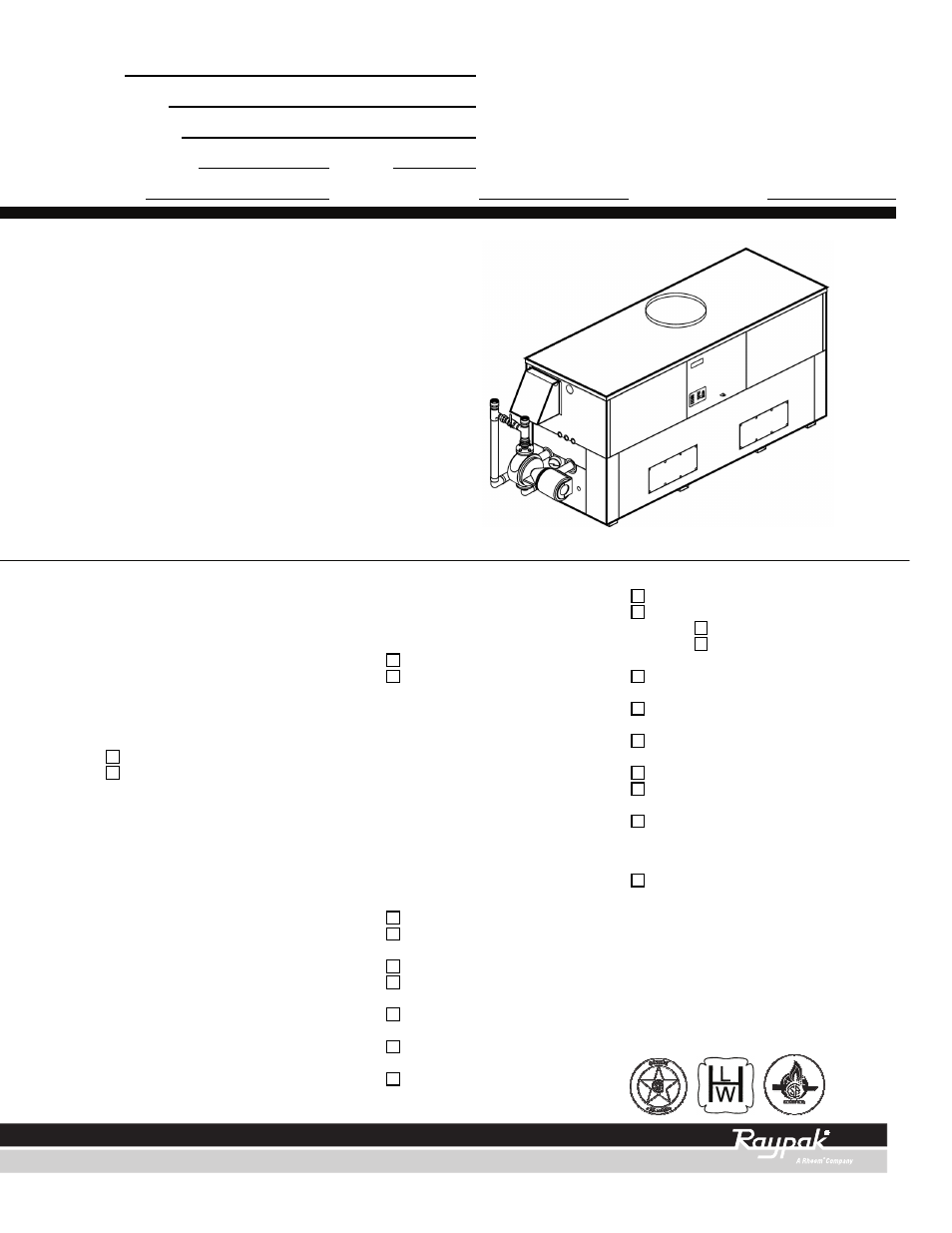

Hi Delta ® - Type P
Commercial Pool Heaters
Models 1802B-2342B
Standard “H” Bypass Shown
Patent No. 7,044,124
