High Voltage (120/240V) Pool Equipment
All Aqua Logic relays are double pole (they make/break both “legs” of 240V circuits) and are rated at

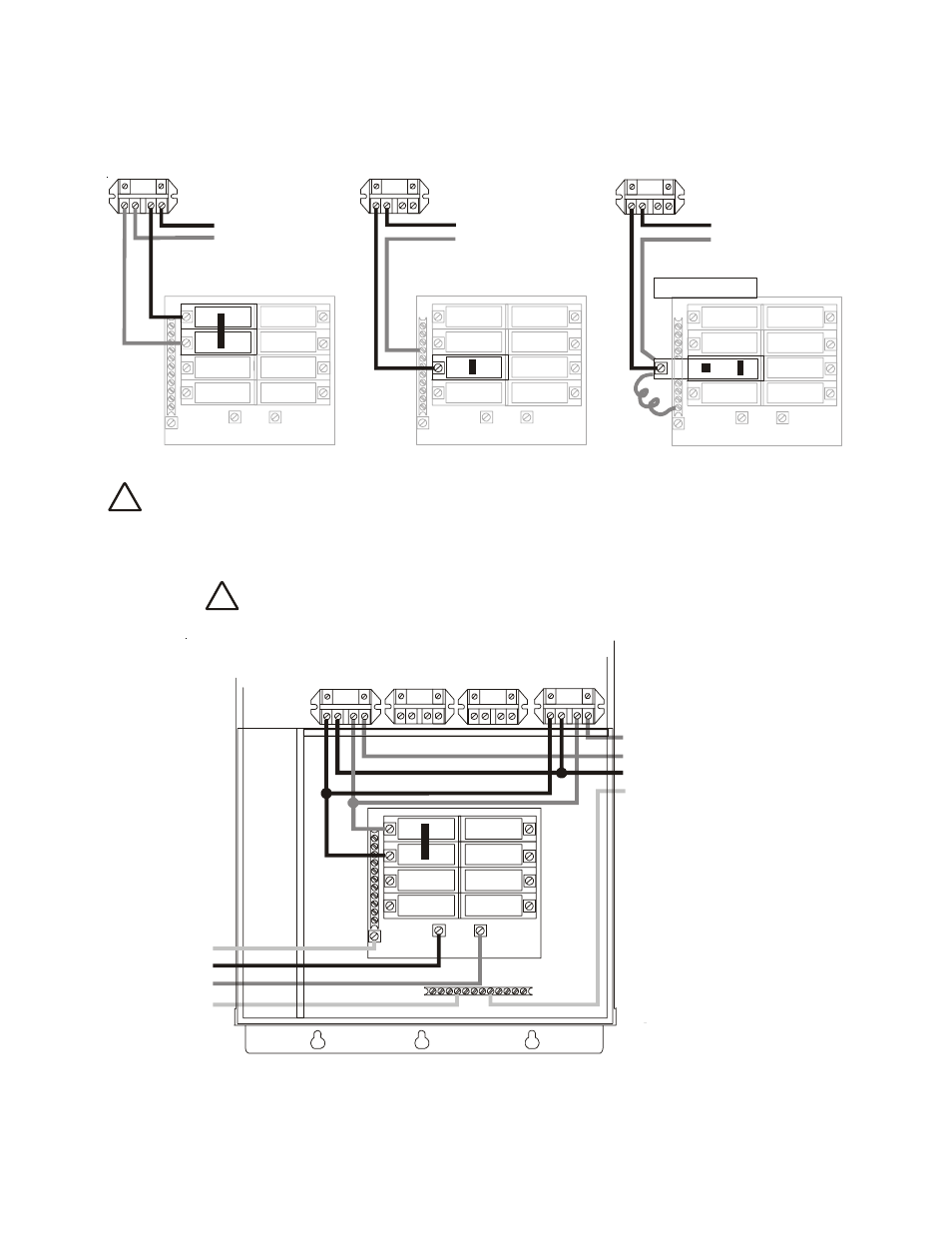

3HP/30A at 240V (1½HP/30A at 120V). Refer to the diagram below for typical relay wiring:
! WARNING: Do not use the Aqua Logic to control an automatic pool cover. Swim-
mers may become entrapped underneath the cover.
Two speed filter pump: Requires 2 relays (FILTER plus one of the AUX relays) for proper operation of
both speeds.
! IMPORTANT: Be sure to follow the wiring diagram below AND to configure
the control logic according to the instructions on page 19.
Lights: A ground fault circuit breaker must be used to supply power for high voltage pool/spa lighting.
Low voltage lights will require an external transformer. For lighting systems that have both a light source
and color wheel: connect the light source to the “Lights” relay and then connect the color wheel to one of
the AUX outputs.
12
N
2-Speed
Filter
Pump
G
L1
L2
Lo Speed
Hi Speed
Common
Ground
240 VAC
Load
120 VAC
Load
Wiring relays for 240 VAC
Pool Equipment
Wiring relays for 120 VAC
Pool Equipment
120 VAC
Load
Wiring GFCB for 120 VAC
Pool Equipment
