4. Electrical Wiring
The Aqua Logic Control Center requires both high and low voltage connections. Low voltage connections
will be made to actuators, sensors, remote keypad, etc. High voltage connections will be made to pumps,
lights, etc., as well as providing direct input power to the Control Center. Always:
-Ensure that Power is disconnected prior to doing any wiring
-Follow all local and NEC (CEC if applicable) codes
-Use copper conductors only
Main Service (Power to the Circuit Breaker Subpanel)
The Aqua Logic circuit breaker subpanel is rated for 100A service. Run properly rated conductors (L1,
L2, N, and ground) from the primary house electrical panel to the main power connections on the Aqua
Logic circuit breaker base. The connection at the main house panel should be to a 240VAC circuit
breaker rated at 100A maximum.
10

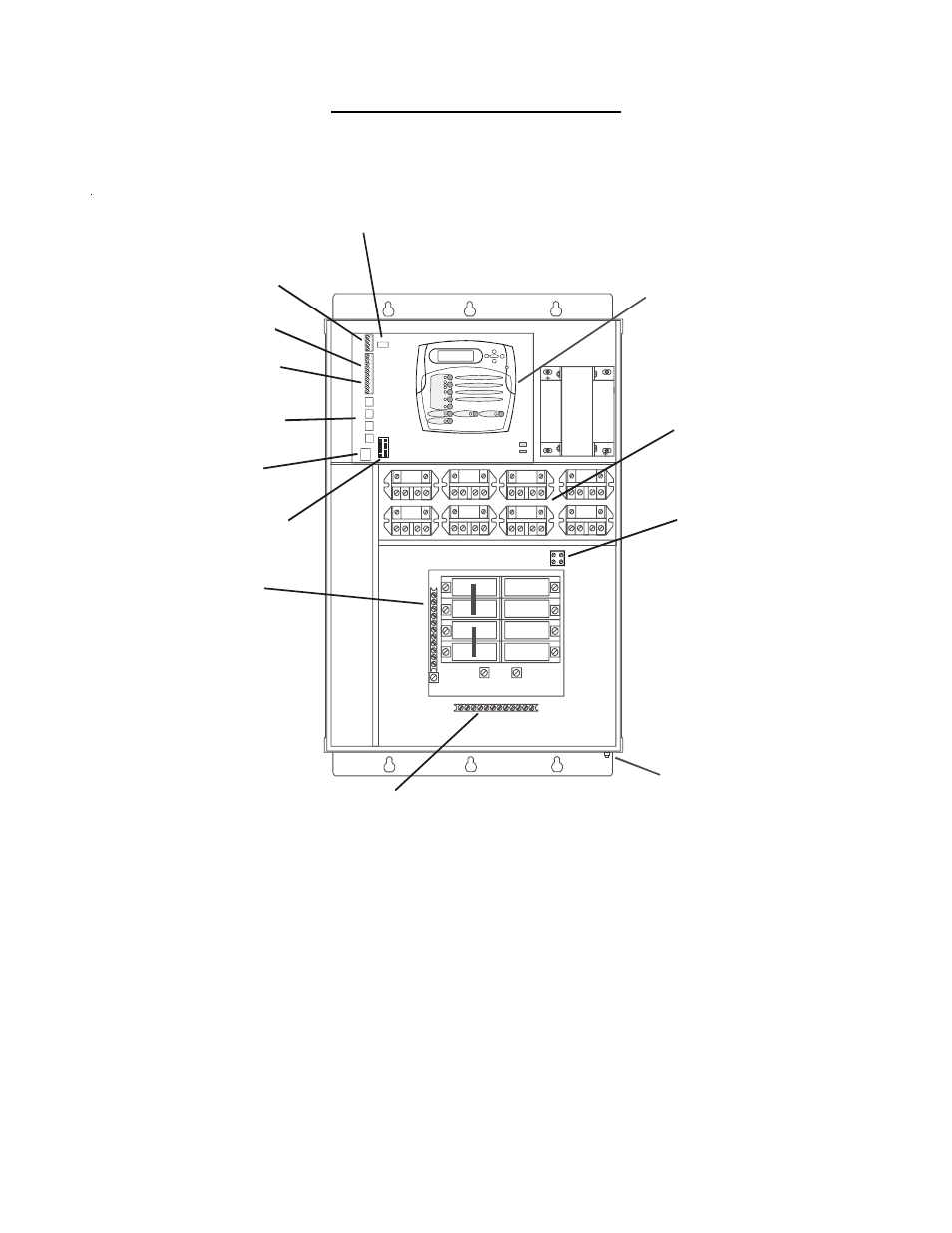

8 High Voltage Relays
(4 relays for PS-4 unit)
Control Power
Input
Bonding Lug(s)
“Local” Display
Subpanel
Ground Bus Bar
L2
N
L1
4 Valve Connectors
2 Heater Outputs
3 Temp Sensor Inputs
Remote Display/Keypad
Connector
Flow Switch
Connector
Cell Connector
Wireless Base
Receiver Connector
1
3
2
4
