Catalog No.: 6000.312D

Effective: 8-15-08

Replaces: 2-1-08

Job:

Engineer:

Contractor:

Prepared By:

Date:

Model:

Indoor/Outdoor:

MBTUH Input:

Sealed Combustion Chamber

100% Factory Fire Tested

Efficiency: 85%

Minimum Non-condensing Inlet Temperature: 105°F

Thermal Shock Proof Heat Exchanger

Limited Twenty-year Thermal Shock Warranty

Limited Five-year Heat Exchanger Warranty

Diagnostic Center with Fault History

PolyTuf Powder Coated Cabinet

No Combustible Floor Shield Required

Fan-assisted

Non-ferrous Bypass

Patented Burner Security Blanket

Heat Exchanger

Bronze Headers
ASME Inspected and Stamped

160 PSIG Working Pressure

National Board Approved
Cupro Nickel Finned Tubing
ASME Steel Tube Sheet
Silicone High Temp O-Rings
125 PSIG ASME Pressure Relief Valve
Temperature and Pressure Gauge
Water Connections

Left – Standard
Right – Option A-6

Bronze Pump, 1/3 HP, 120V, 60Hz
Non-Ferrous Pool Bypass Assembly

with Automatic Control

Controls

120V, 60Hz, 1∅ Power Supply
120/24V 60Hz Transformer
100% Shut-off/Lockout
Hot Surface Ignition
Remote Flame Sensor
High Limit Control, Auto Reset
On/Off Power Switch
Manual Shut-off, Front-mounted
Flow Switch
Blocked Vent Pressure Switch
Combustion Air Proving Switch
Economaster Pump Time Delay
Poolstat

Gas Train

Gas Pressure Regulator
Safety Shut-off Valve
Firing Control Valve
On/Off Firing
Fuel

Natural Gas
Propane Gas

Design Certified ANSI Z21.56/

CSA 4.7

Burner

Ultra-low NOx:

Less Than 30 PPM

Construction

Indoor/Outdoor Construction
Enclosed Front Controls

Venting

Vent Location

Top – Standard
Rear – Option D-14

Vent Termination Cap

Outdoor – Option D-11
Indoor, Horizontal –

Option D-15

Indoor, Vertical (by others)

Combustion Air

In-Line Filter Kit (TruSeal

only) – Option D-17

Air Intake Elbow –

Option D-16

Options

C-6

Ignition Module, Manual Reset

D-21 TruSeal™ Direct Vent
F-10 Low Water Cut-Off, Remote

Probe

I-1

High Limit Control, Auto Reset

S-1

Low Gas Pressure Switch,
Manual

S-2

High Gas Pressure Switch,
Manual

X-1

SureRack™ Kit

X-2

SureRack Add-on

Regulatory Agency Requirements

G-1

CSD-1

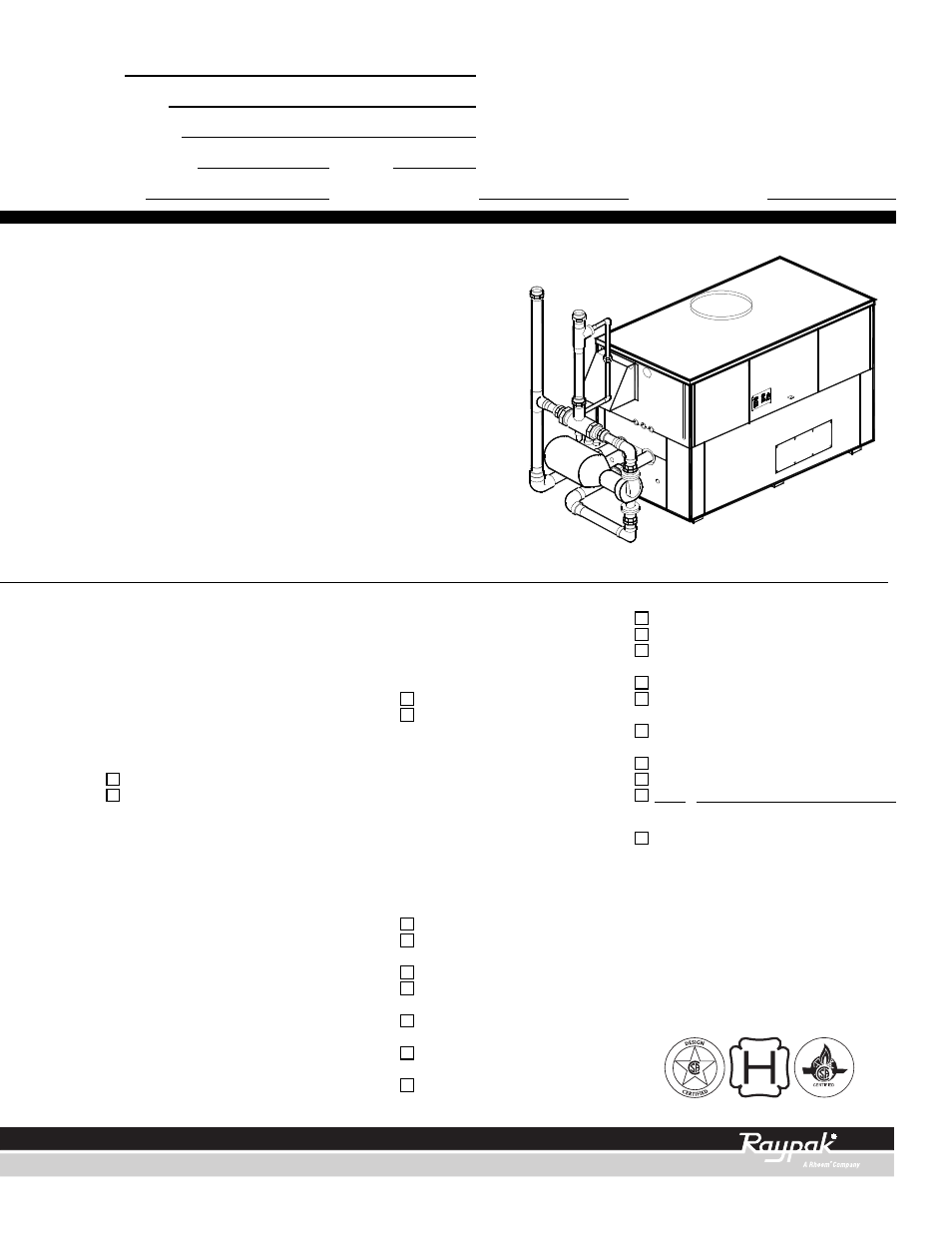

Hi Delta

®

- Type P

Commercial Pool Heaters

Models 302B & 402B

L

W
