Runco VX-2ix Owner’s Operating Manual

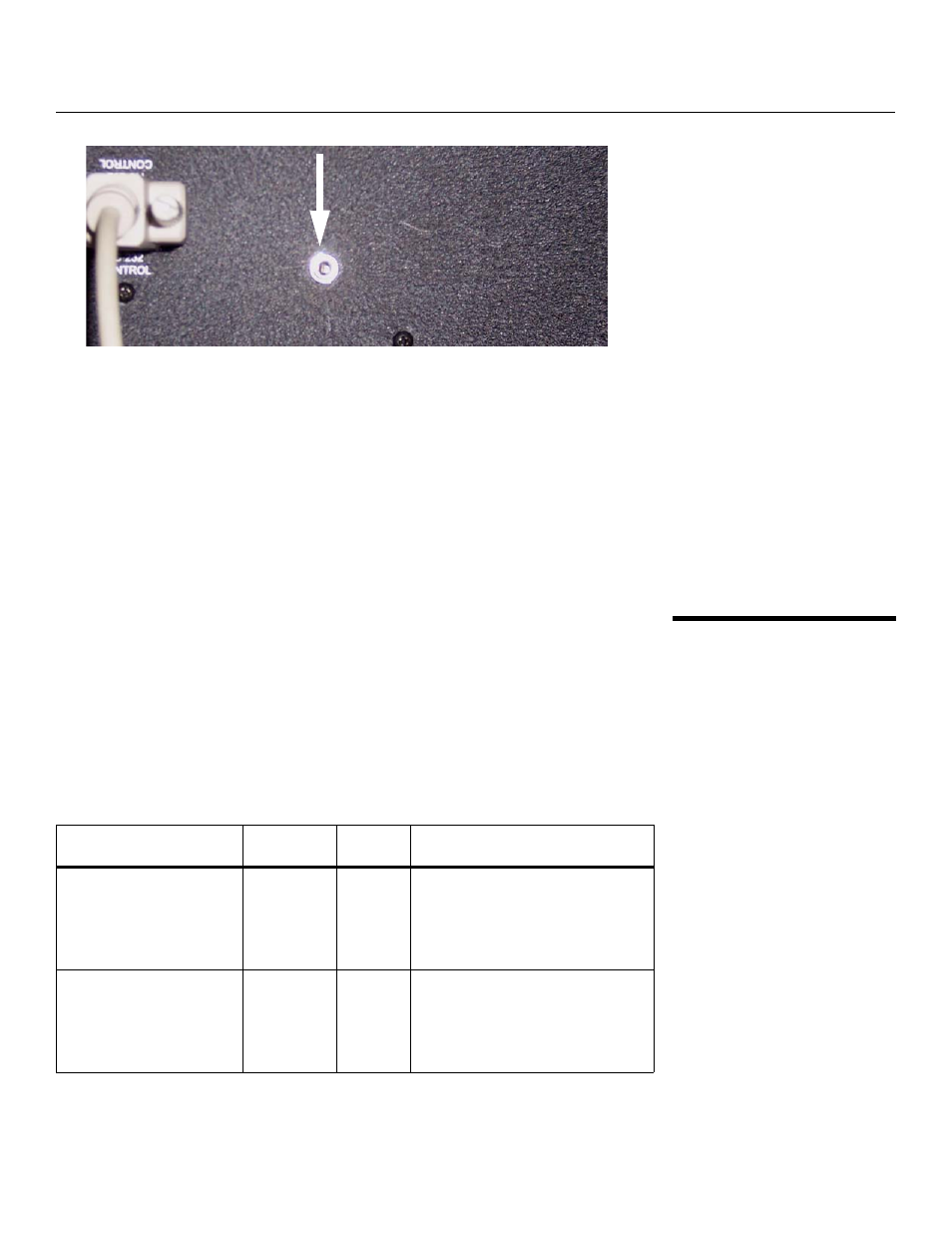

Figure A-3. VX-2ix Secondary RS-232 Port
4.
Connect the color sensor to any available COM or USB port.
5.
Launch HyperTerminal. Open a connection using these parameters: 19200 baud,
8 data bits, no parity,1 stop bit and no flow control.
6.
Press
. The VX-2ix responds with “+>” to indicate that it is ready to accept
commands.
7.
Start your color analyzer. Position the sensor approximately 6 to 12 inches from the
screen, facing it at a slight angle (upward or to one side) so that the color of the
screen is included in the calibration.
A.3
Serial Command
Syntax
Table A-1 lists the serial command set for color gamut adjustments. The “Parameter
(min/max)” column shows the valid parameter ranges, or “NA” for commands that take no
parameters.
When you enter a valid command, the VX-2ix executes it and acknowledges it with a plus
sign on the command line (+ >). When you enter an invalid command – one that is
misspelled or followed by values outside the valid range for that command – the VX-2ix
ignores it and returns a minus sign (- >).
Table A-1. Serial Commands for Gamut Adjustment
Command
Parameter
(min/max)
Value
Stored?
Description
GAMUT WHITE
NA
NA
Displays white field on screen for
measuring x and y coordinates;
shows current x and y
coordinates for white on the
command line.
GAMUT RED
NA
NA
Displays red field on screen for
measuring x and y coordinates;
shows current x and y
coordinates for red on the
command line.
