Page 38
26
Runco VX-2ix Owner’s Operating Manual
If your home theater contains a retractable screen, screen mask or other 12-Volt
trigger-activated equipment, connect it to a 12-Volt trigger output as shown in Figure
3-12.

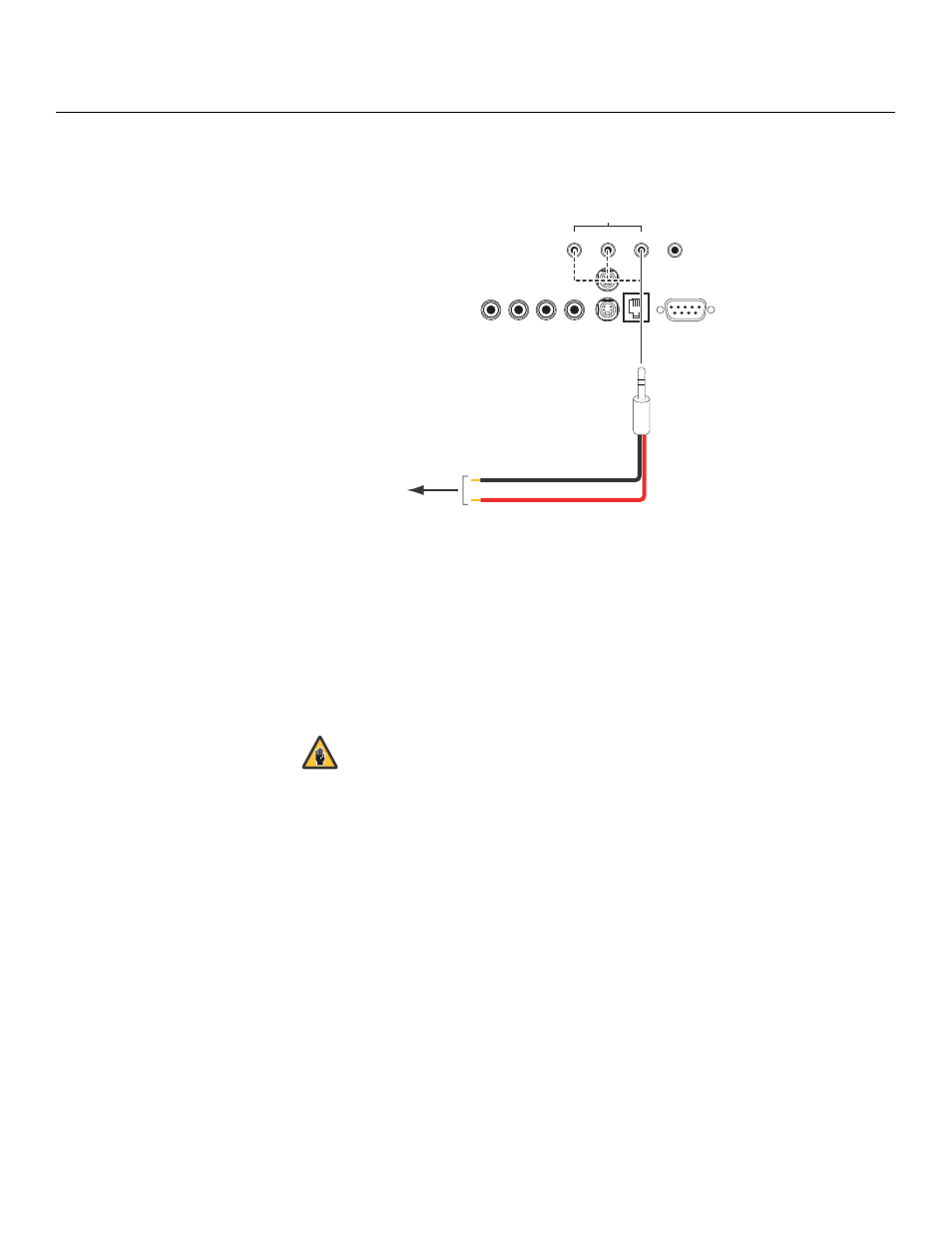

Figure 3-12. Connecting a 12-Volt Trigger Output to Other Equipment
Connecting to AC Power
Plug the female end of the power cord into the AC receptacle on the rear of the VX-2ix
(AC 100V ~ 240V). Then, connect the other end to your AC power source.
AutoScope Lens Motor: With AutoScope-equipped projectors, an additional power
cord is provided for the lens motor. Plug the female end of the AC power cord into the AC
input on the rear of the lens motor assembly. Connect the other end to a 110 VAC power
source.
Pb
Pr
Y
Video
3
IR
RS-232 Control
S-Video 1
S-Video 2
1
2
TRIGGERS
RS-232 Out
Component Video
to 12-Volt
trigger-activated
equipment
3.5-mm
mini plug
Tip = +12V
Sleeve = Ground
➤
The input voltage to the AutoScope lens motor must be between
100 and 120 VAC. Do not connect the AutoScope lens motor
to a 200-240 VAC power source!
Caution
