Cinema CINEMA Select Cinema to view 2.35
source material in its native
aspect ratio.
With a 16:9 screen and a
non-CineWide projector (no
anamorphic lens), the upper and
lower portions of the screen are
masked, but the geometry of the
active image area is unchanged.
With a 2.35:1 screen and a
CineWide-equipped projector,
the VX-2ix vertically stretches
the 2.35 image so that the active
image area fills the 16:9 chip
surface, eliminating the black
bars. The secondary
anamorphic lens then stretches
the image back to 2.35:1.
Virtualwide 2.35 SVC A 16:9 image is scaled
NON-linearly (more on the sides
than in the center) to fit a 2.35:1
screen.
Virtualwide 2.35 is available only
on CineWide-equipped VX-2ix
projectors.
Table 4-1. Aspect Ratio Settings (continued)
Aspect Ratio
Remote
Control
Key
Description

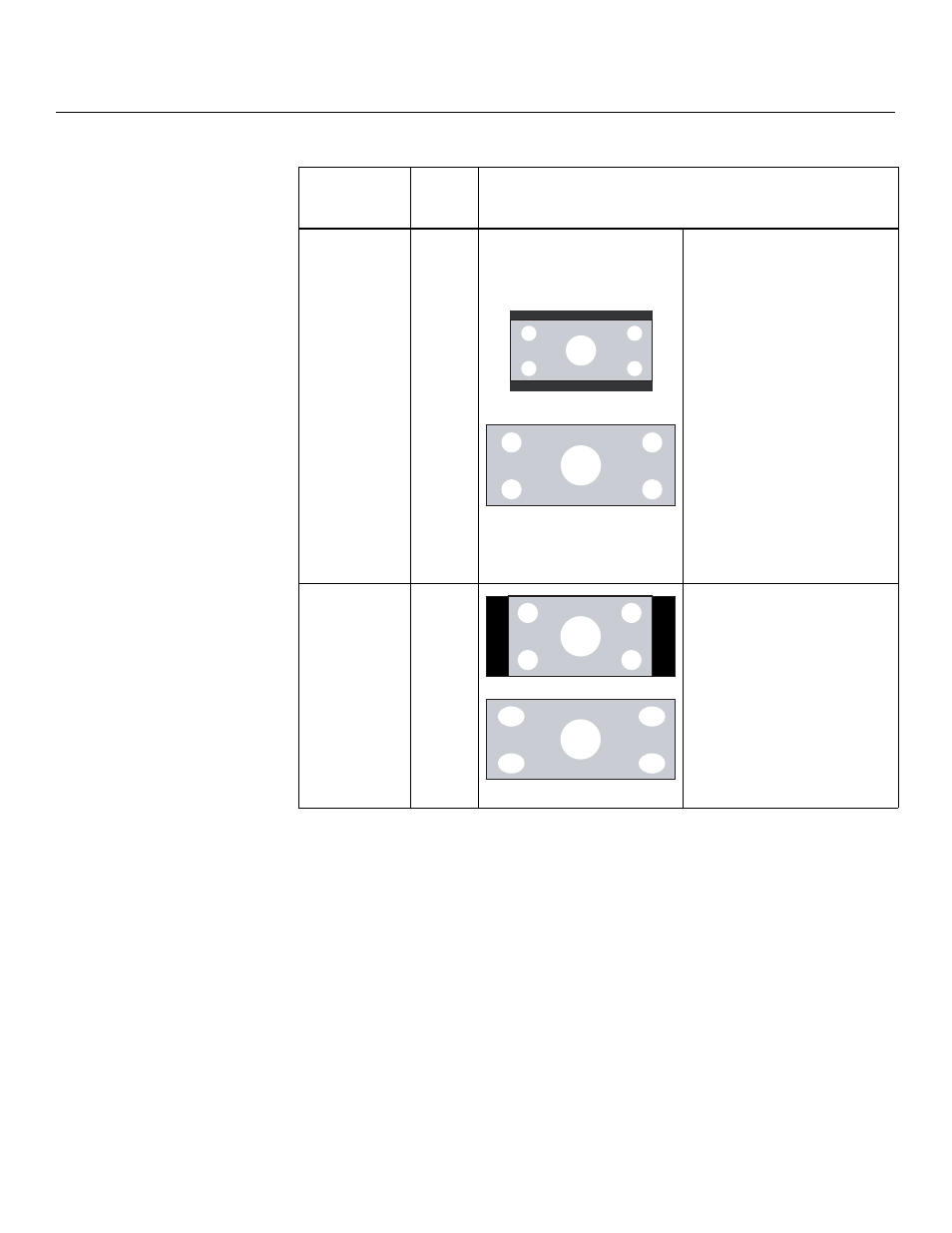

2.35:1 Image on
16:9 Screen
(without CineWide)
2.35:1 Image on
2.35:1 Screen
(with CineWide)
16:9 Image on
2.35:1 Screen with
VirtualWide 2.35
16:9 Image on
2.35:1 Screen
16:9 Image on
2.35:1 Screen
