Runco VX-2ix Owner’s Operating Manual
2.2
VX-2ix Rear Panel

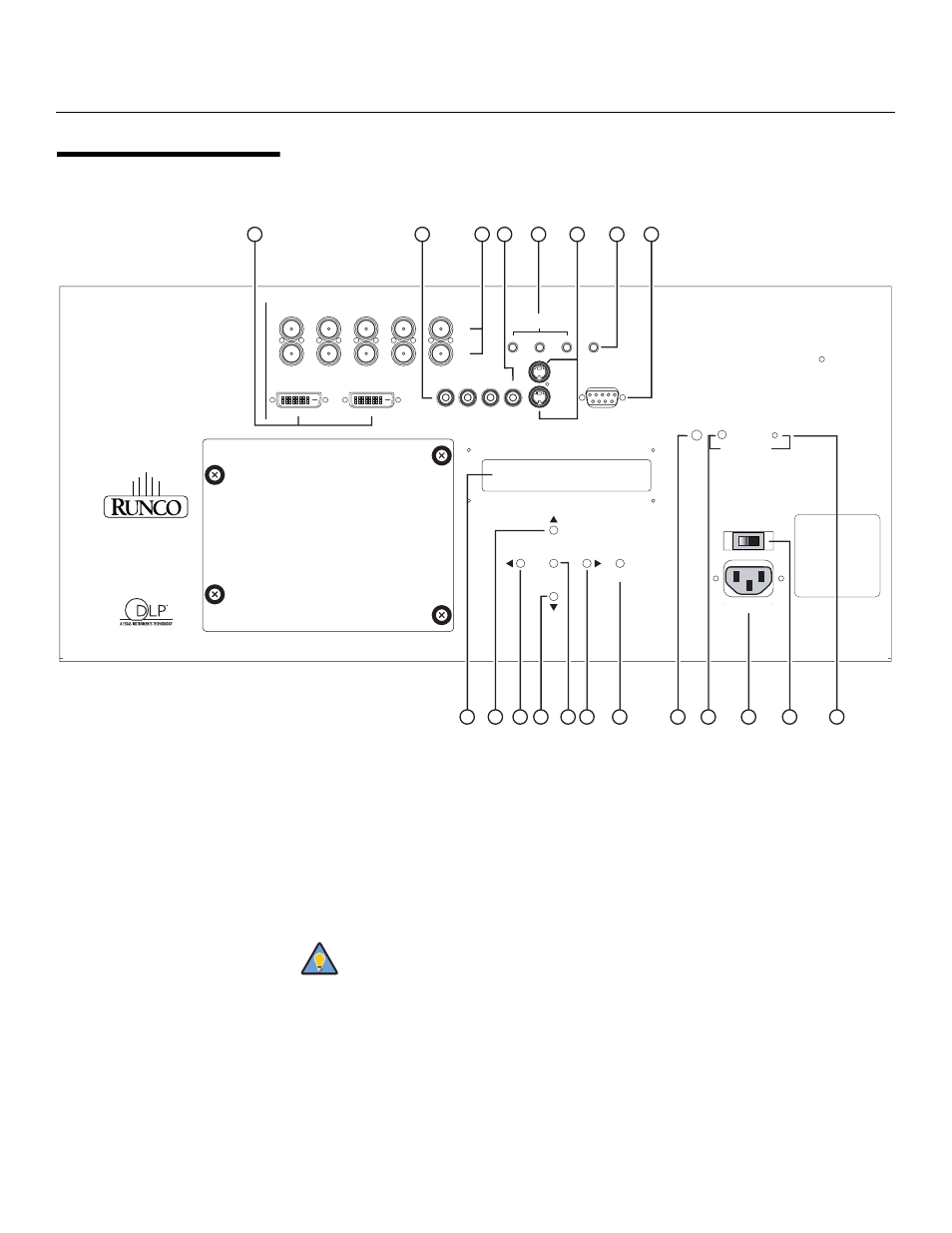

Figure 2-2 shows the VX-2ix rear panel.
Figure 2-2. VX-2ix Rear Panel
1.
DVI 1 / DVI 2 (Digital)
Two, HDCP-compliant digital video inputs for connecting a DVD player or HD tuner
with a DVI or HDMI output.
2.
COMPONENT VIDEO (RCA connectors)
Standard Definition (480i/576i) Component (YPrPb) input. This is the input for
component video from sources such as DVD players.
3.
HD1 / HD2 (Analog BNC connectors)
Two inputs (five BNCs per input) for connecting either RGB or component
high-definition television signals. The VX-2ix automatically detects the signal format:
RGB(HV) or YPrPb, 480p, 720p, 480i, 576i or 1080i.
4.
COMPOSITE VIDEO INPUT
Standard composite video input for connecting a VCR, laser disc player or other
composite video source.
