Venting – Raypak 1334001 User Manual

Page 13

NOTE: If louvers, grills or screens are used on the

openings, obtain the net free area from their suppli-
er or manufacturer. If the design free area of a louver
is not known nor available, it shall be assumed that
wood louvers will have 20-25 percent free area and
metal louvers will have 60-75 percent free area as
specified in the National Fuel Gas Code.

Venting

Outdoor Installations

Model 0133

1. Remove the front (4) screws.

2. Line up outdoor top vent opening over heater vent

opening.

3. Lower outdoor top onto unit lining up slots in the

outdoor top with screws holes in jacket top.

4. Reinstall (5) screws to secure jacket top and out-

door top to unit.

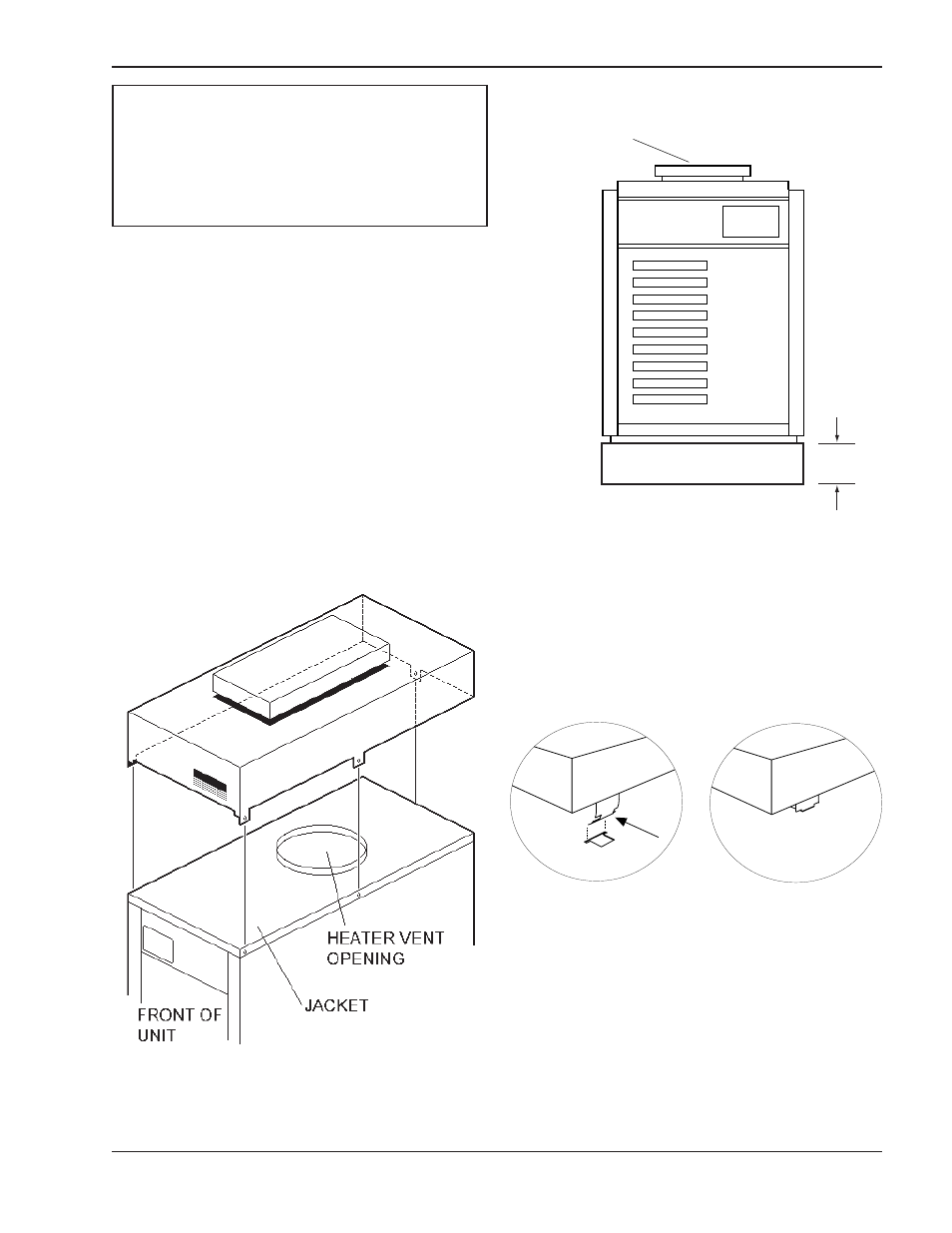

Fig. 4: Outdoor Top Installation

Models 0181-0401 and 0182-0400

Vent Terminal (Outdoor) Stackless Top

Installation

1. Insert tabs into keyhole (4 places).

2. Snap tabs into keyholes so as not to pull out.

Outdoor Top

8-3/8"

OUTDOOR

FLOOR BASE

Fig. 5: Outdoor Top Installation

Pagoda Top (Shipped Loose with Heater)

Fig. 6: Outdoor Top Installation
