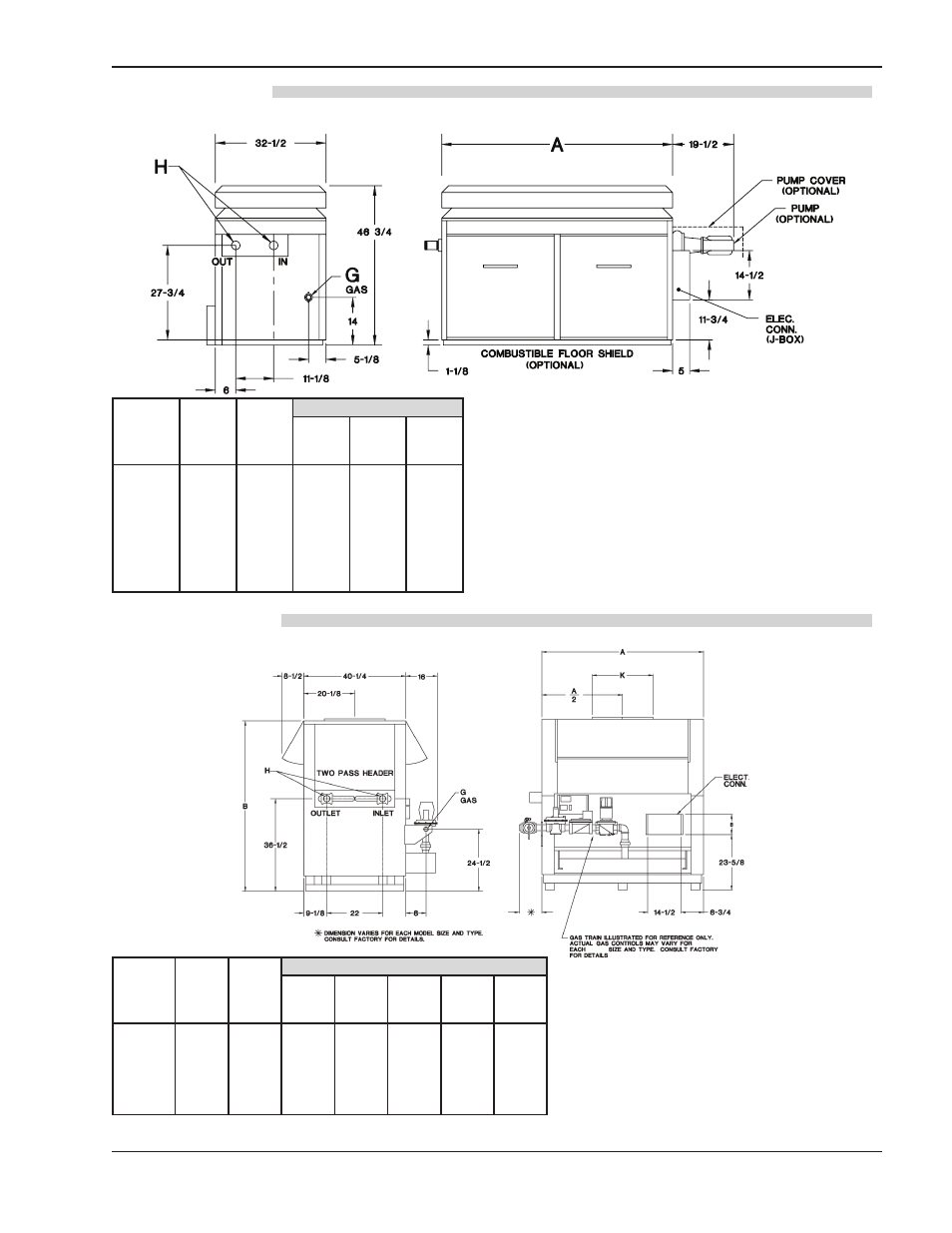

MODELS 0926-1758
MODELS 2100-4000
MODEL,
Model
Number
Input
MBH
Recovery
GPH*
Dimensions (in inches)
Width
A
Gas
Conn.
G
Water
Conns.
H
WH-0926
926.0
920
52-3/8
1
2-1/2
WH-1083
1083.0
1076
59-1/4
1
2-1/2
WH-1178
1178.0
1171
63-5/8
1-1/4
2-1/2
WH-1287
1287.0
1279
68-5/8
1-1/4
2-1/2
WH-1414
1413.0
1404
74-7/8
1-1/4
2-1/2
WH-1571
1570.0
1560
82-1/8
1-1/4
2-1/2
WH-1758
1758.0
1747
89-3/8
1-1/4
2-1/2
NOTE:
Ratings are shown for elevations up to 2,000 feet. For elevations
over 2,000 feet, reduce ratings 4% for each 1,000 feet above sea
level.
* Recovery based on manufacturer’s rating.
Model
Number
Input
MBH
Recovery
GPH*
Dimensions (in inches)
Width
A
Overall
Height
B
Gas
Conn.
G
Water
Conns.
H
Flue
Diameter
K
WH-2100
2100.0
2087
61
68-1/4
**
3
24
WH-2500
2499.0
2484
70
68-1/4
**
3
26
WH-3001
3000.0
2982
81-1/4
68-1/4
2
3
28
WH-3500
3500.0
3479
92-1/2
68-1/4
2
3
30
WH-4001
4000.0
3976
103-3/4
68-1/4
2
3
32
NOTE:
Ratings are shown for elevations up to 2,000 feet. For
elevations over 2,000 feet, reduce ratings 4% for each
1,000 feet above sea level.
* Recovery based on manufacturer’s rating.
** 1-1/2” or 2” contingent on code requirements
