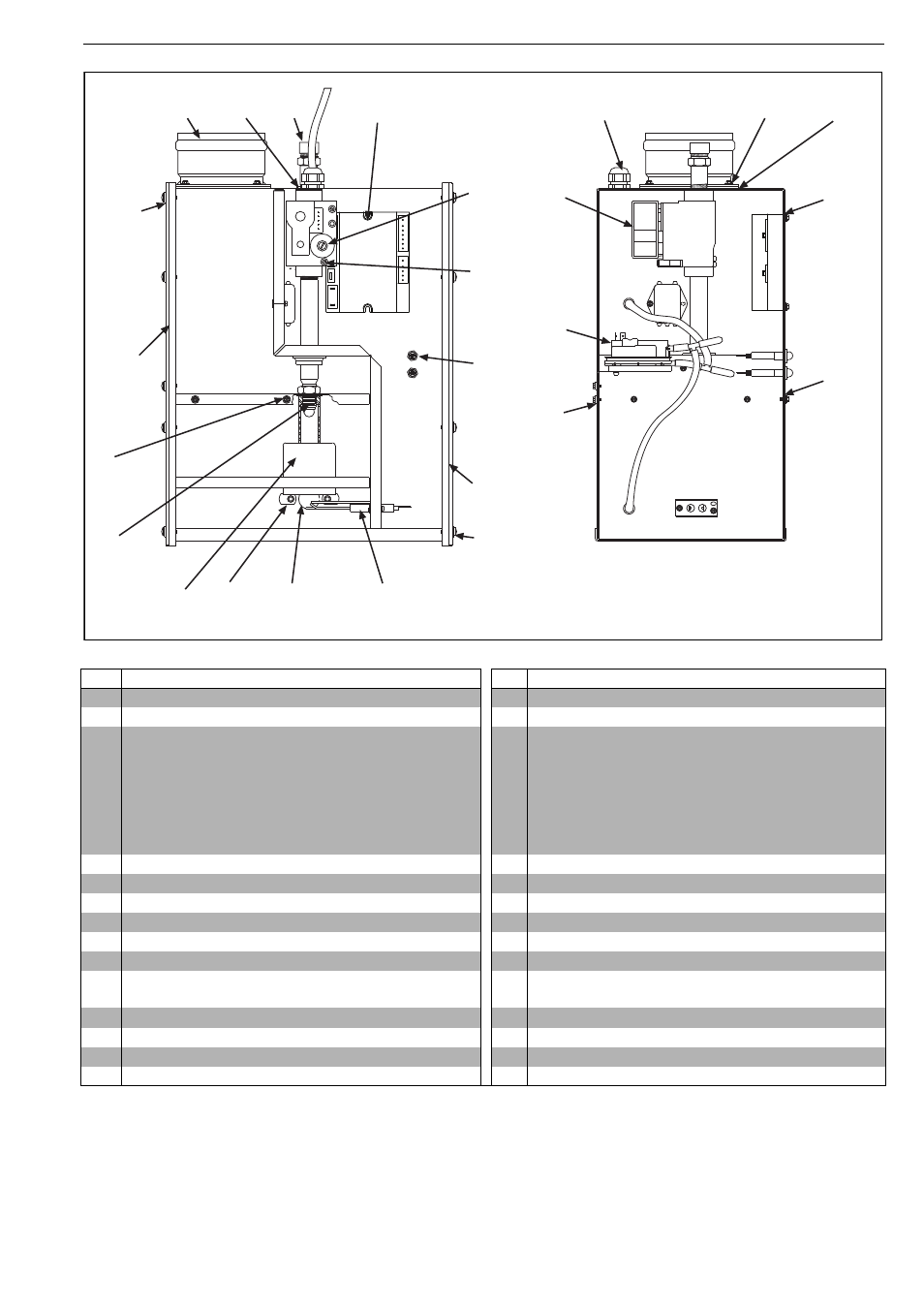

SECTION 17: R EPLACEMENT P ARTS
69 of 73
*See Page 70, Section 17.1.
Item Description Part Number Item Description Part Number
A Automatic Control Unit 90438702 P Gasket 1/2" OD x 1/4" ID 92700008
B Flex Line Adapter 91220700 Q Gasket 1/2" OD x 3/16" ID 92700001
C
Pressure Switch for
HE50
HE35
HE15, 20, 30, 45
HE25
HE40
90439801
90439802
90439803
90439804
90439805
R Gasket 3/8" OD x 3/16" ID 92700002
D Amber Neon Lamp 91320604 S Valve Gasket 03200100
E* Gas Valve 90033101 T Window Gasket 92700003
F Governor Screw N/A U Fresh Air Adaptor Gasket 92700005
G Outlet Pressure Tap N/A V Gasket 1/2" x 17 3/8" 92700006
H Cable Gland U169 W Gasket 1/2" x 8.5" 92700007
I Star Washer 96212100 N/S Ignition Wire 90427704
J
Jet Orifice
(See Page 73, Section 18.9)
N/A N/S Burner Tube Gasket 92700004
K Burner Cup Assembly 03020100 N/S Wire Harness- Main Power 03320404
L Mica Window Assembly 03360004 N/S Wire Harness- Pressure Switch 03320405
M Electrode Assembly 90427403 N/S Purple Wire 07250007
N Fresh Air Adapter 90501002 N/S Electrode Gasket 02558501
A B
C
D
E
F
G
H
J
I
K L, T
(2)
M
N
P
R
S V
V
(2)
W
(2)
Q
(6)
V
(2)
W
(3)
Q
(7)
R
(4)
R
(2)
R
(3)
