B LACKHEAT ® HE I NSTALLATION O PERATION AND S ERVICE M ANUAL
42 of 73

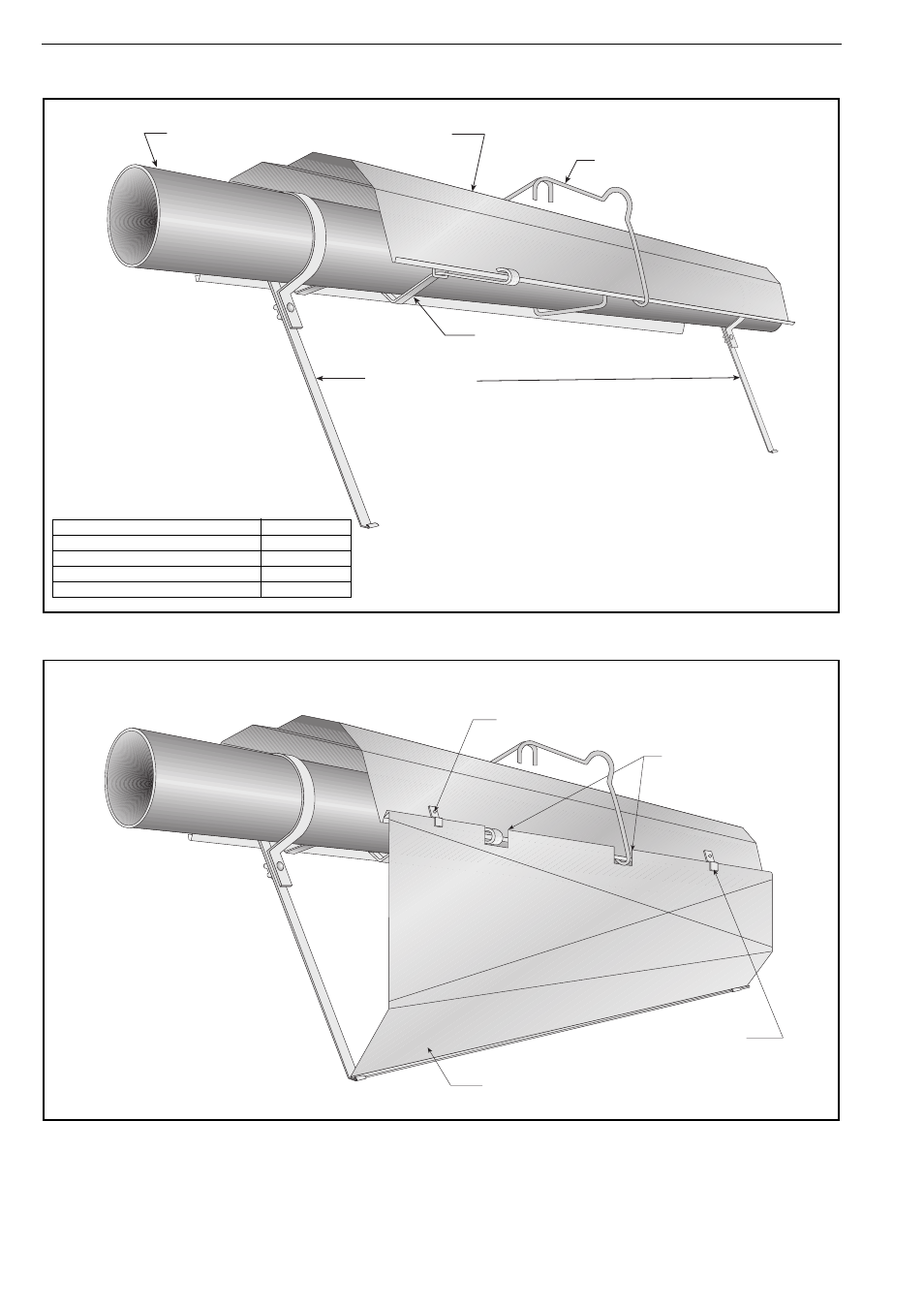

10.1 Reflector Side Extension Installation
Step 10.1.1 Bracket Installation
Step 10.1.2 Side Reflector Installation
Reflector Side
Extension Bracket
(2 per reflector)
Use additional supports
in high air movement
applications.
Tube and Reflector Hanger
Reflector Tube
Reflector Support
Description Part Number
Reflector Side Extension Package S7377K
Reflector Side Extension 01368000
Retainer Clips 02751200
Reflector Side Extension 01329910
Retainer Clip
(2 per side)
Cut relief notches for
supports and hangers
Reflector Side Extension
#8 x 3/8 Sheet Metal Screw
