SECTION 9: B URNER & F AN I NSTALLATION
37 of 73

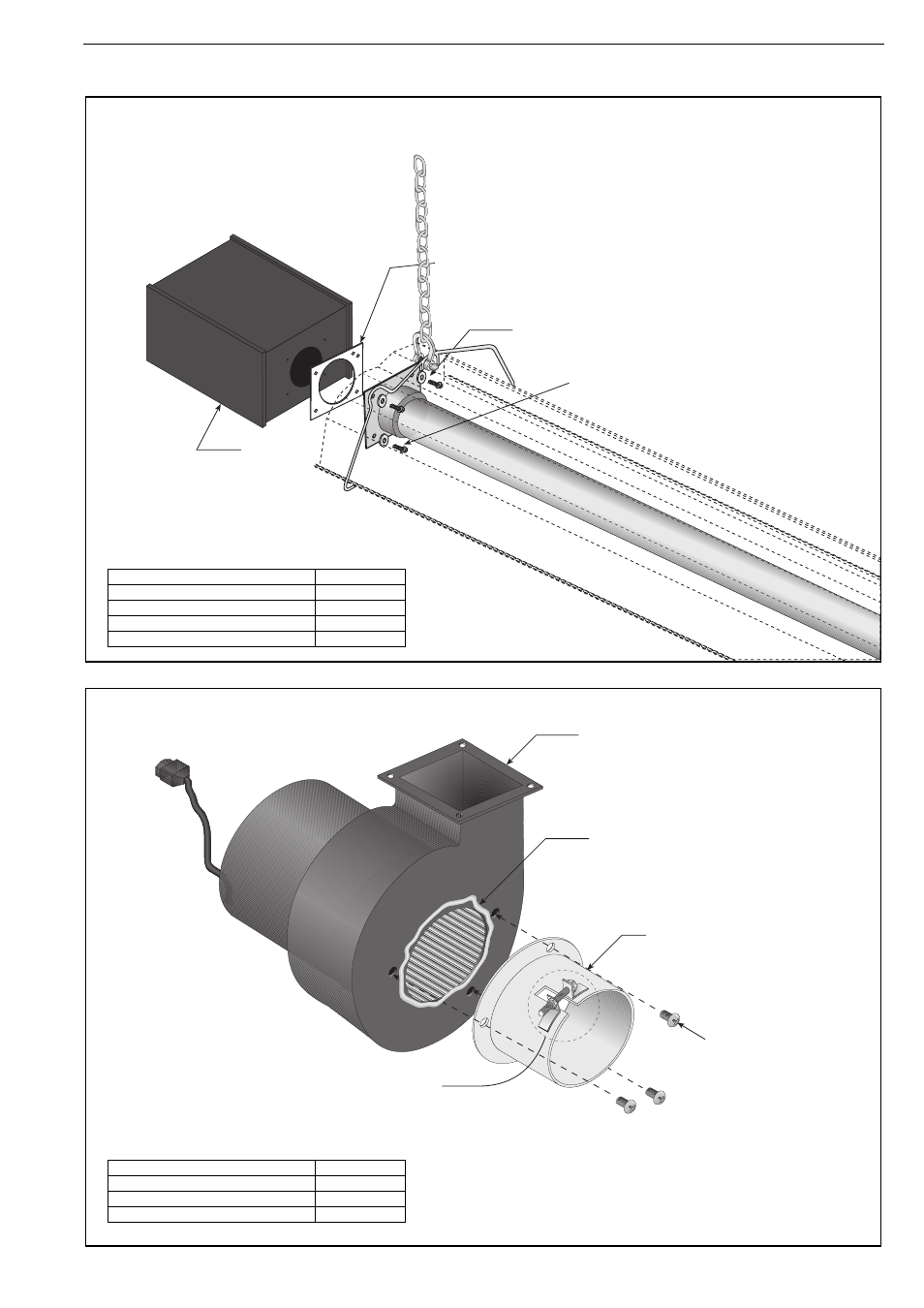

SECTION 9: BURNER & FAN INSTALLATION
Step 9.1 Burner Installation
Step 9.2 Standard Fan Assembly
Lock
Washer
Gasket
Bolt
(Torque: 13.5 Nm
120 in lb)
Burner
Description Part Number
Bolt 072600XX
Lock Washer 96411600
Gasket 02568200
Burner 033XXXXX
NOTE: Tube Clamp Package not shown for clarity.
For details, see Page 21, Step 6.5.
Fan Assembly
Vent Adapter
Screw
(Torque: 2 Nm
18 in lb)
Note: Apply Silicone
(Recommended)
Install vent adapter
with clamp in the
up position.
Description Part Number
Fan Assembly 072600XX
Vent Adapter C1323B
Screw C0061B
