B LACKHEAT ® HE I NSTALLATION O PERATION AND S ERVICE M ANUAL
20 of 73

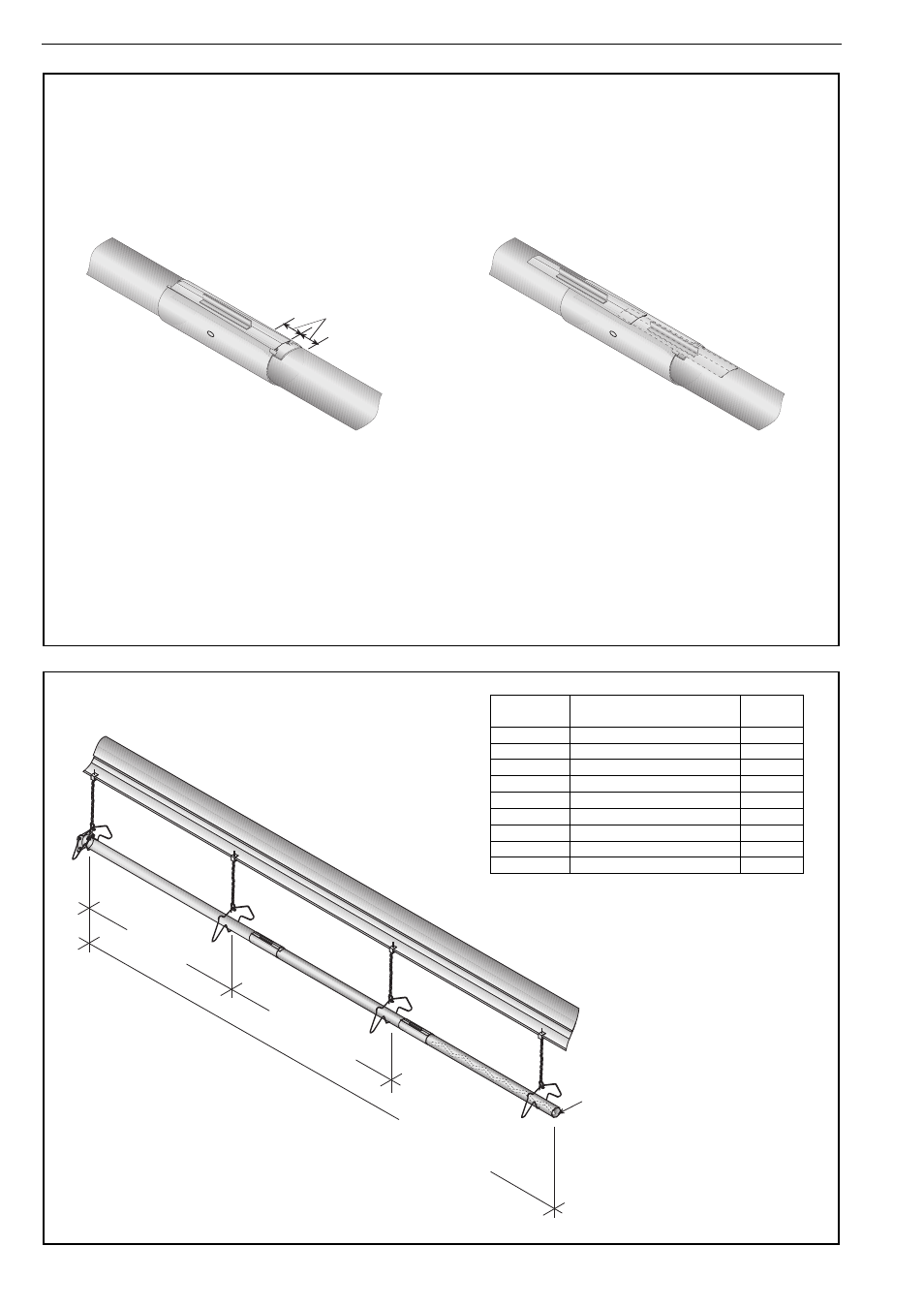

Step 6.4.1 Coupling and Tube Assembly (Continued)
Step 6.4.2 Coupling and Tube Assembly (Continued)
Incorrect Slide Bar
position
Correct Slide Bar
dimensions
± 50 mm
Drive slide bar until tight.
End of slide bar should be
within tolerance listed below.
• Repeat Step 6.4 A - D until all tubes are assembled. See Page 20, Section 6.4.2 shown below.
Tighten slide bar as shown below.
3050 mm Typ
± 250 mm
2290 mm
± 250 mm
Total Overall
Tube Length
Weld spot
at end of
heat exchanger
Model Overall Tube Length (mm)
Number
of Tubes
HE15ST 6000 2
HE20ST 9000 3
HE25ST 9000 3
HE30ST 12,000 4
HE35ST 12,000 4
HE40ST 12,000 4
HE45ST 15,000 5
HE50ST 15,000 5
HE55ST 18,000 6
