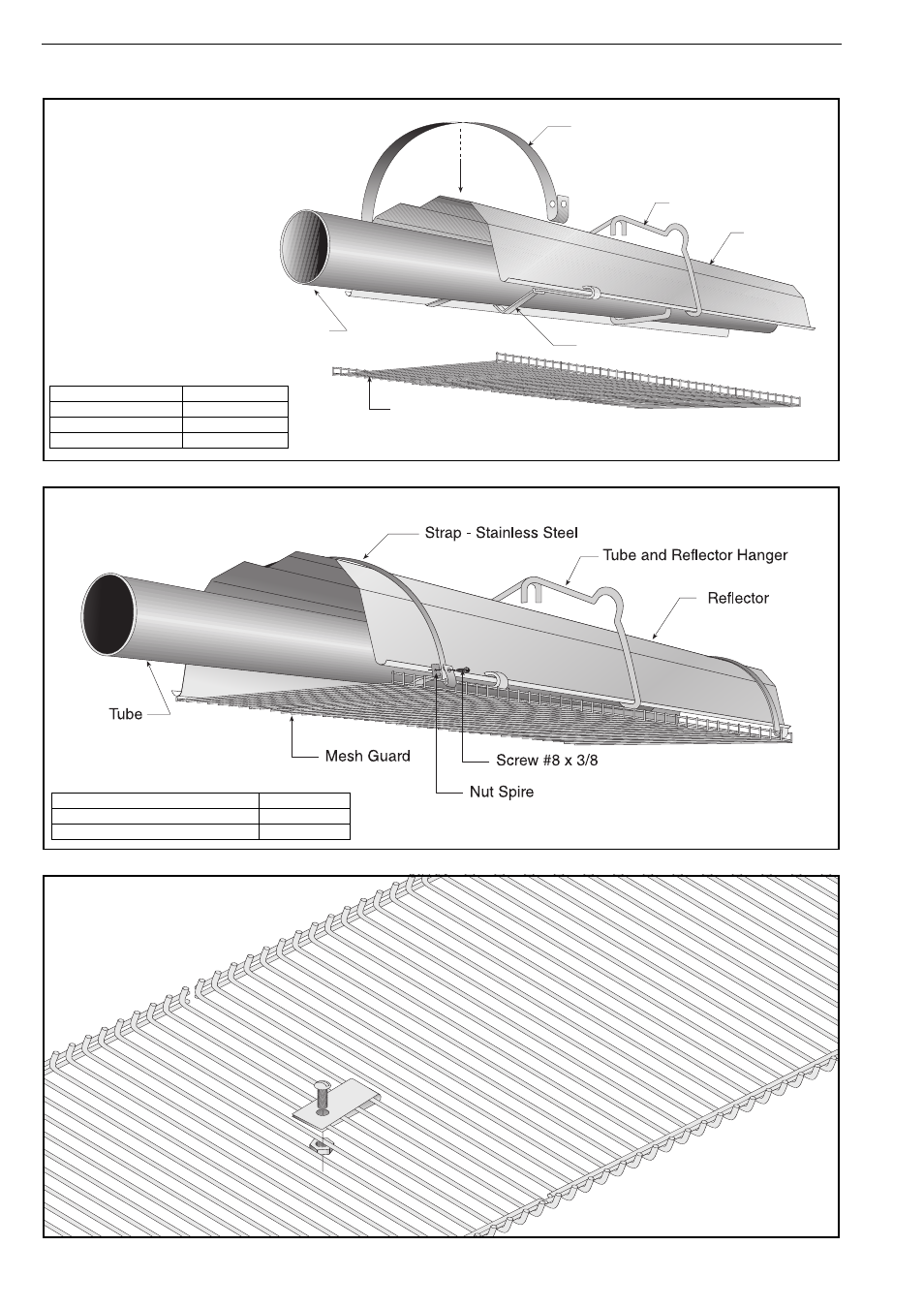

10.5 Sports Hall Guard Installation
Step 10.5.1 Grille Installation
Step 10.5.2 Fastener Installation
Step 10.5.3 Mesh Guard Connection
Tube and
Reflector Hanger
Reflector
Tube
Reflector Support
Strap - Stainless Steel
Mesh Guard
Description
Part Number
Mesh Guard 2438 mm
E0009855
Mesh Guard 1524 mm
C2329B
Strap Stainless Steel
S5218W
Description
Part Number
Nut Spire
C1088B
Screw #8 x 3/8
C1089B
