3.1.1 H-UDI Connector (J1)
Rev.1.00 June 1,2005 3-3
REJ11J0002-0100Z
3
3.1.1 H-UDI Connector (J1)
The M3A-HS60 includes an H-UDI (J1) connector for connection to the E10A-USB emulator.

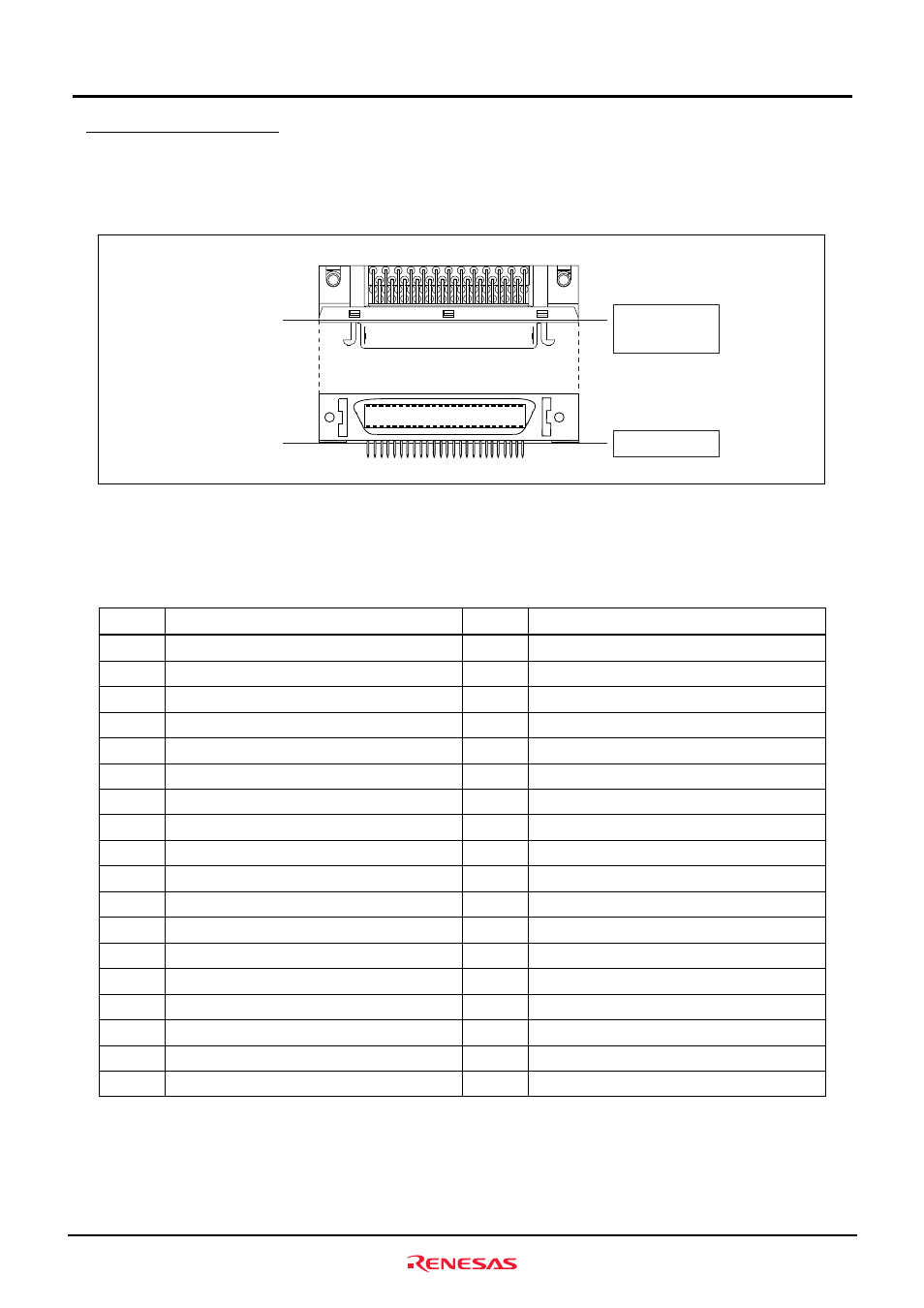

Figure3.1.2 shows a pin arrangement of the H-UDI connector.
Top view of the
Component side
Side view
Board edge
Board edge
35
36
1
2
J1
Figure3.1.2 Pin Arrangements of the H-UDI Connector
Table3.1.1 lists pin assignments of H-UDI connector.
Table3.1.1 Pin Assignments of H-UDI Connector (J1)
Pin Signal Name Pin Signal Name
1 AUDCK(PE0) 19 TMS
2
GND
20
GND
3 AUDATA0(PE6) 21 TRST#
4
GND
22
GND
5
AUDATA1(PE5)
23
TDI
6 GND 24 GND
7
AUDATA2(PE4)
25
TDO
8 GND 26 GND
9
AUDATA3(PE3)
27
ASEBRKAK#/ASEBRK#
10 GND 28 GND
11
AUDSYNC#(PA16)
29
+3.3V
12 GND 30 GND
13
NC
31
RES#
14 GND 32 GND
15
NC
33
GND
16
GND
34
GND
17 TCK 35 NC
18
GND
36
GND
