SECTION 5: H EATER I NSTALLATION
11
SECTION 5: HEATER INSTALLATION
5.1 General
Heaters are designed for floor standing vertical
installation. Special versions supplied with steel
channels to support the heater are available and
may be mounted horizontally. When installed
horizontally, the heater will normally lie on its left
side when viewed from the burner. The heater should be placed on a firm, level, non-combustible
surface that can support its weight. See Page 5,
Section 4.1
for weight details.
5.2 Handling
All cabinet heaters are supplied secured to a
wooden pallet and shrink wrapped. Use the pallet to
support the heater during handling and installation.

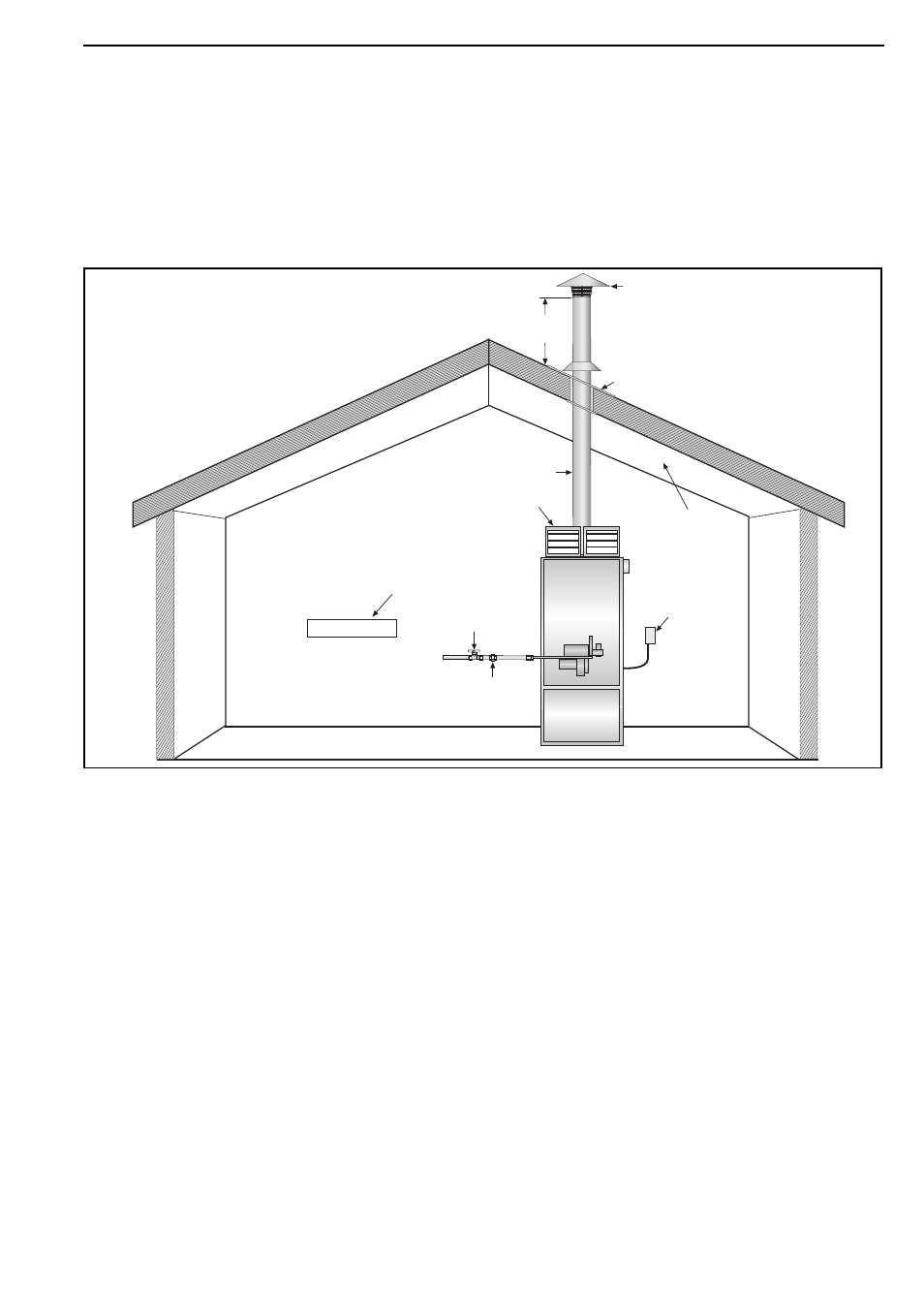

Figure 2: Typical Installation of a Gas Fired Cabinet Heater
1 m
Minimum
Roof
Flues up to 200 mm dia. are
fitted with Bird Screens, over
200 mm with a Rain Cap.
Air
Distribution
Heads
Flue
Lead Roof Plate
Building Ventilation
Electric Supply
Gas Isolating Valve
Union
Connection
