SECTION 4: SPECIFICATIONS
4.1 PGP & POP Internal Heaters

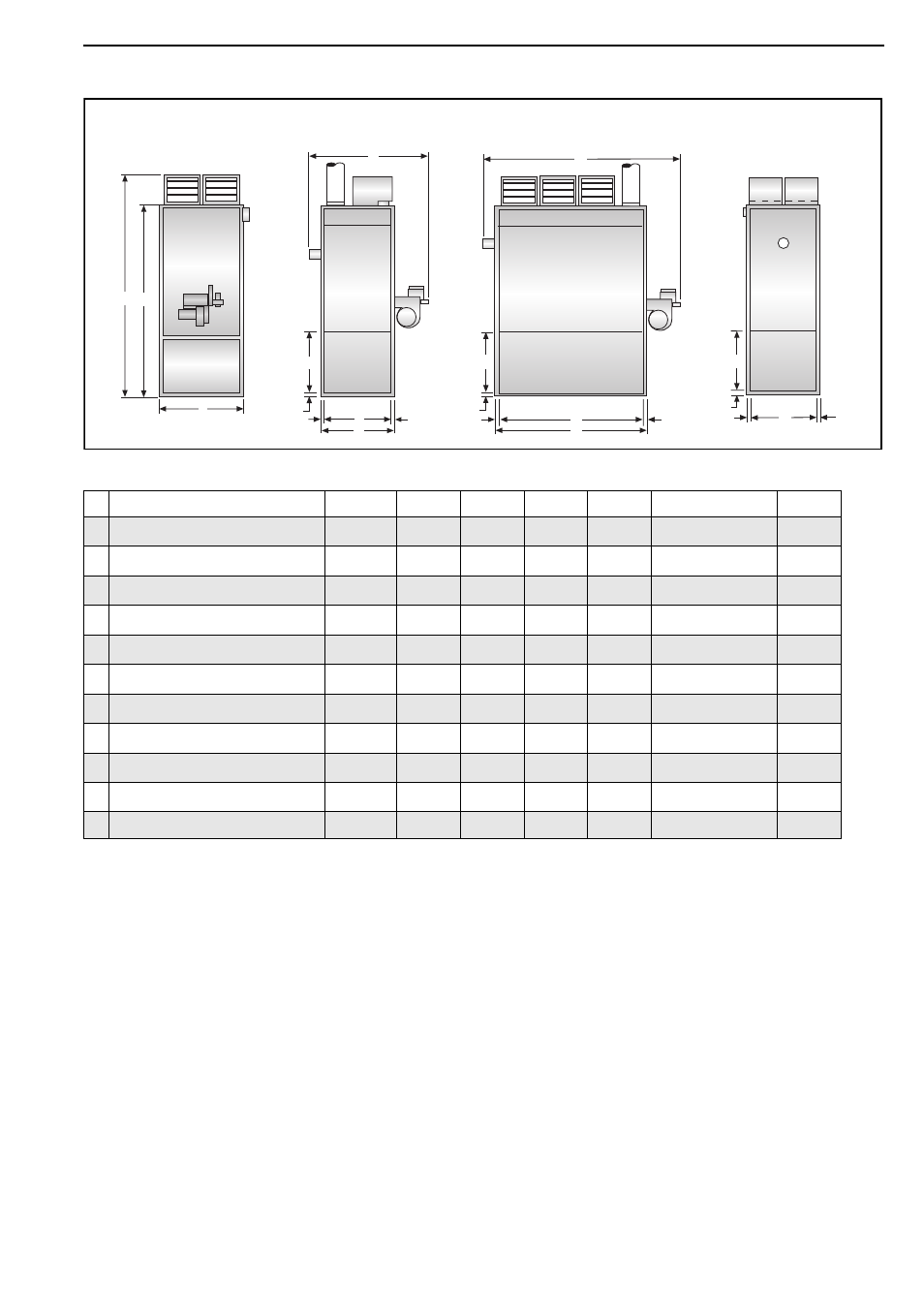

Dimension Data - PGP & POP Internal Heaters

NOTES: Horizontal cabinet heaters are designed to lie on their left side as standard.

For vertical models, add 54 mm (2 in) to the right side of the cabinet for the fan/limit thermostat.
For horizontal models, add 54 mm (2 in) to the top of the cabinet for the fan/limit thermostat.
*All heaters must be connected to a suitable flue constructed of single wall stainless steel.

E C

A

38

70

D

38

G

F

B

38

70

38

D

G

F

B

38

38

108

G

H

Front View

(all models)

Side View

(Models 015 - 050)

Rear View

(all models)

Side View

(Models 060 - 0100)

Model

015/020

030

040

050

060/070/080

0100

A

Width

mm

(in)

724

29

724

29

857

34

1016

40

1016

40

1016

40

B

Depth, Cabinet Only

mm

(in)

857

34

857

34

857

34

1016

40

1676

66

1994

79

C

Height, Cabinet Only

mm

(in)

1740

69

1740

69

1930

76

1930

76

1930

76

1930

76

D

Depth, Overall

mm

(in)

1267

50

1267

50

1337

53

1496

59

2156

85

2496

98

E

Height, Including Heads

mm

(in)

1988

78

2058

81

2235

88

2235

88

2235

88

2235

88

F

Left/Right Air Inlet Spigot - Depth

mm

(in)

781

31

781

31

781

31

940

37

1600

63

1918

76

G

Left/Right Air Inlet Spigot - Height

mm

(in)

457

18

457

18

560

22

560

22

560

22

559

22

H

Rear Air Inlet Spigot - Depth

mm

(in)

648

26

648

26

781

31

781

31

NA

NA

J

Rear Air Inlet Spigot - Height

mm

(in)

361

14

361

14

446

18

446

18

NA

NA

Flue Diameter*

mm

(in)

178

7

178

7

178

7

178

7

229

9

229

9

Weight

kg

200

200

245

270

440

530
