E-14
PC CONTROL COMPUTER IN DVI-D IN
SC TRIGGER
VIDEO IN S-VIDEO IN
S-VIDEO S-VIDEO RGB/DVI RGB/DVI VIDEO VIDEO AUDIO IN AUDIO IN COMPONENT
Y Cb/Pb Cr/Pr
VIDEO IN S-VIDEO IN
AUDIO OUT
R L
VIDEO OUT
S-VIDEO OUT
AUDIO IN
L R
VCR/ Laser disc player

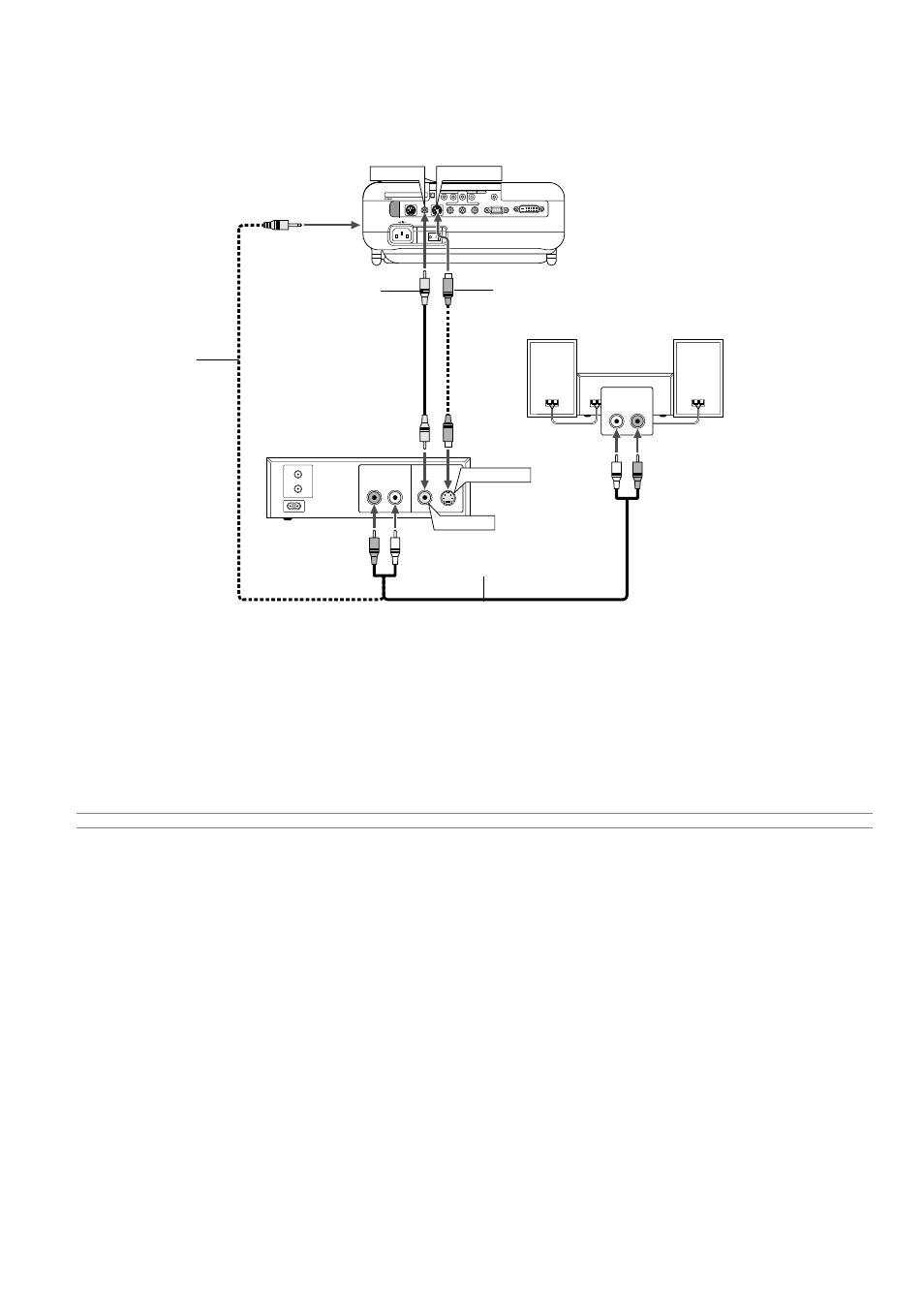

Connecting Your VCR or Laser Disc Player
Audio equipment
S-video cable (supplied) Composite video
cable (supplied)
Audio cable (not supplied)
Use the supplied composite video cable to connect your VCR or laser disc player to your projector.
To make these connections, simply:
1. Turn off the power to the projector and VCR or laser disc player.
2. Connect one end of the composite video cable to the video output connector on the back of your VCR or laser disc player, connect the other end
to the Video input on your projector. Use an audio cable (not supplied) to connect the audio from your VCR or laser disc player to your audio
equipment (if your VCR or laser disc player has this capability). Be careful to keep your right and left channel connections correct for stereo
sound.
3. Turn on the projector and the VCR or laser disc player.
NOTE: Refer to your VCR or laser disc player owner's manual for more information about your equipment's video output requirements.
VIDEO AUDIO IN
or
S-VIDEO AUDIO IN
Audio cable
(supplied)
