2. INSTALLATION AND CONNECTIONS
Connecting an External Monitor
PC CONTROL
COMPONENT IN
COMPUTER IN
VIDEO IN AUDIO IN
AUDIO OUT S-VIDEO IN
R
Cr/Pr
Cb/Pb Y
L
AUDIO IN
AC IN
MONITOR OUT
MONITOR OUT
RGB/VGA signal cable
(supplied)
RGB/VGA signal cable (not supplied)

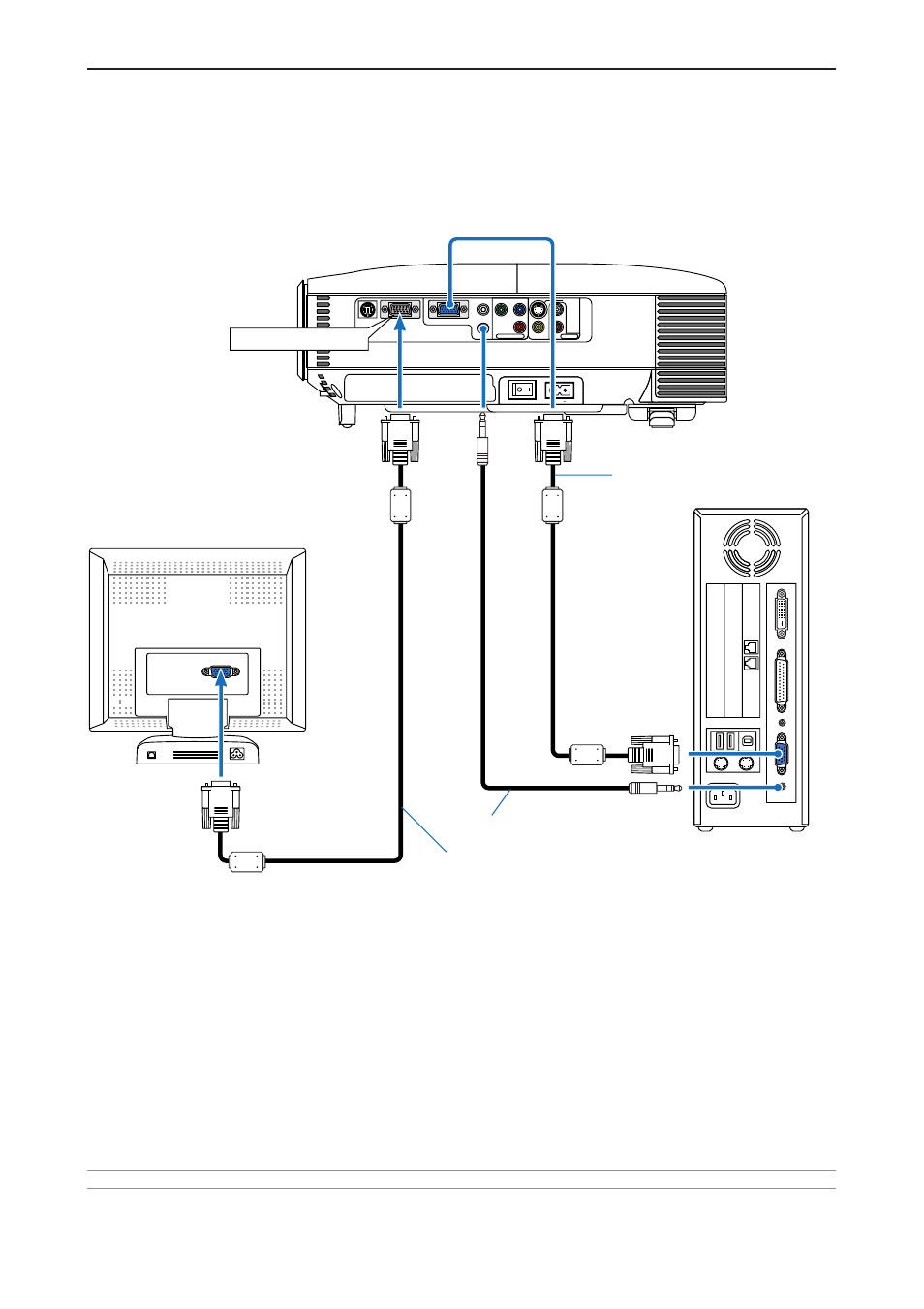

You can connect a separate, external monitor to your projector to simultaneously view on a monitor the RGB
analog image you're projecting.
To do so:
1. Turn off the power to your projector, monitor and computer.
2. Use an RGB/VGA cable to connect your monitor to the MONITOR OUT (Mini D-Sub 15 pin) connector on
your projector.
3. Connect the supplied power cable. See page E-19 .
4. Turn on the projector, monitor and the computer.
NOTE: Daisy chain connection is not possible.
Audio cable (not supplied)
