E-3

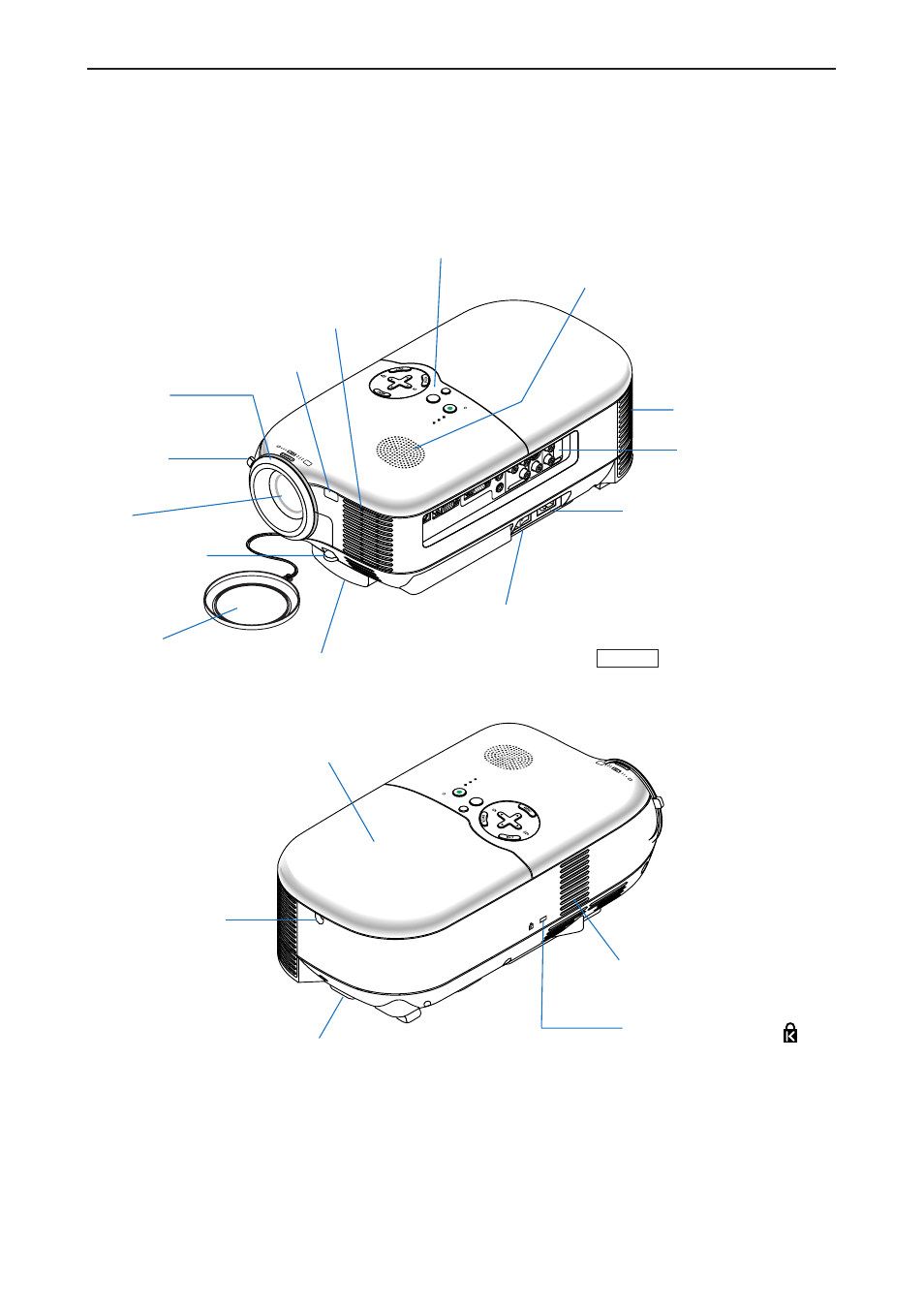

Part Names of the Projector
1. INTRODUCTION
CO NT RO L
CO MP ON EN T I N
VID EO IN
AU DIO IN
S-V IDE O I N
R
Cr/ Pr
Cb /Pb
Y
L/m ono
AU DIO IN
CO MP UT ER IN
MO NIT OR OU T
SE LE CT
LA MP ST AT US PO WE R
ON /S TA ND B Y
AU TO AD J.
AC IN
SELECT
LAM P STA TUS POW ER
ON/S TAN D B Y
AUT O ADJ.
SOURCE
* This security slot supports the MicroSaver® Security System. MicroSaver® is a registered trademark of
Kensington Microware Inc. The logo is trademarked and owned by Kensington Microware Inc.
Remote Sensor (See page E-9 )
Controls (See page E-4 )
Speaker
Ventilation (outlet)
Terminal Panel
(See page
E-5 )
AC Input
Connect the supplied power
cable's two-pin plug here, and
plug the other end into an ac-
tive wall outlet. (See page
E-19 )
Main Power Switch
When you plug the supplied power cable into an active wall outlet
and turn on the Main Power, the POWER indicator turns orange and
the projector is in standby mode. (See page
E-20 )
Ventilation (inlet)
Adjustable Tilt Foot
(See page
E-24 )
Adjustable Tilt
Foot Lever
(See page
E-24 )
Lens Cap
Lens
Focus ring
(See page
E-25 )
Zoom lever
(See page
E-24 )
Lamp Cover
(See page
E-45 )
Lamp Cover Screw
(See page
E-45 )
Ventilation (inlet)
Built-in Security Slot ( ) *
Adjustable Rear Foot
(See page
E-23 )
