INSTALLATION AND CONNECTIONS
Ͼ
Making Connections

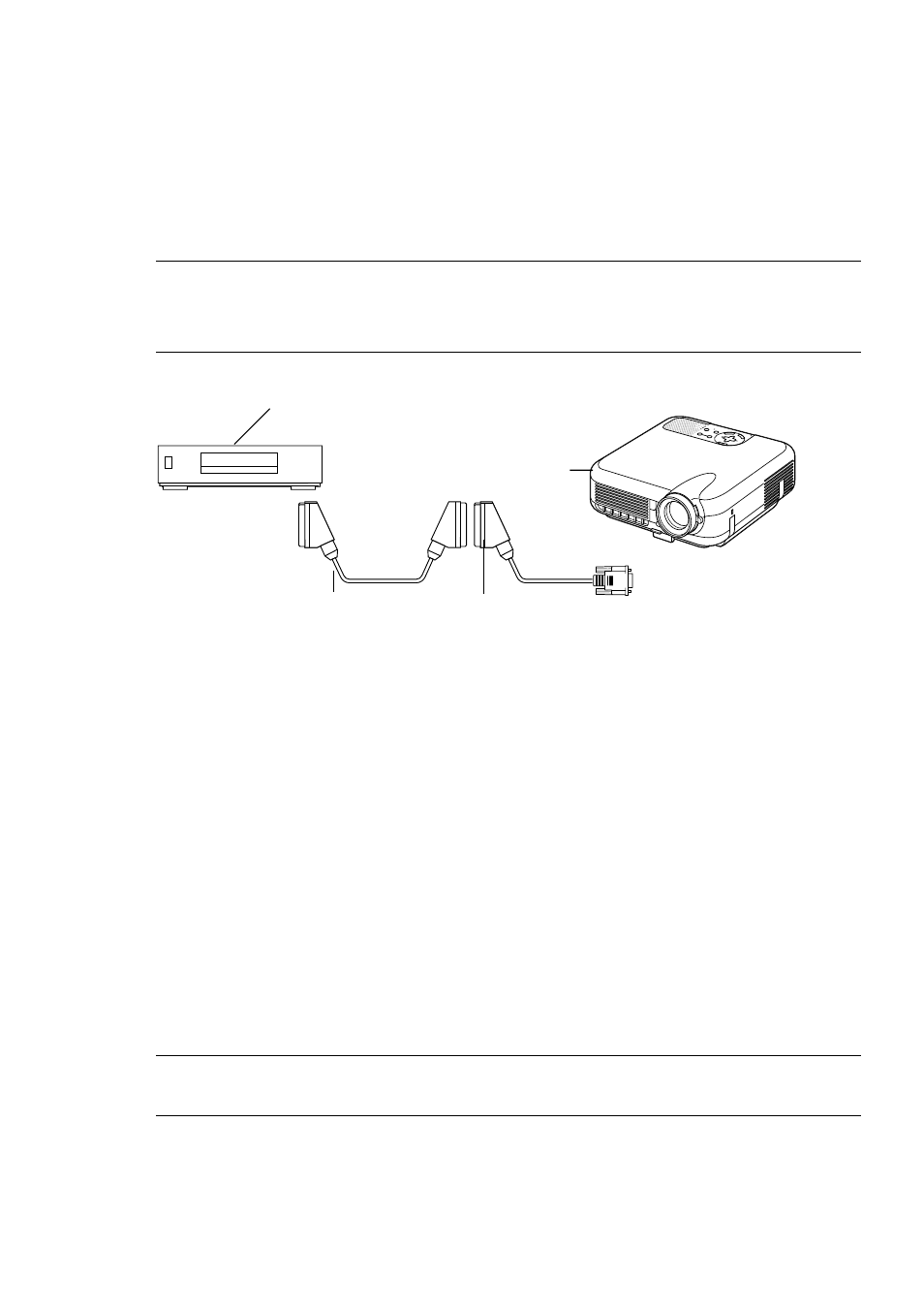

To connect SCART output (RGB)
Before connections: An exclusive SCART adapter (ADP-SC1) and a com-
mercially available SCART cable are required for this connection.
NOTE:
•
Audio signal is not available for this connection.
•
The RGB IN 2 connector does not support SCART signal and Plug & Play.
