Page 11

E-11

INTRODUCTION

Part Names of the Projector

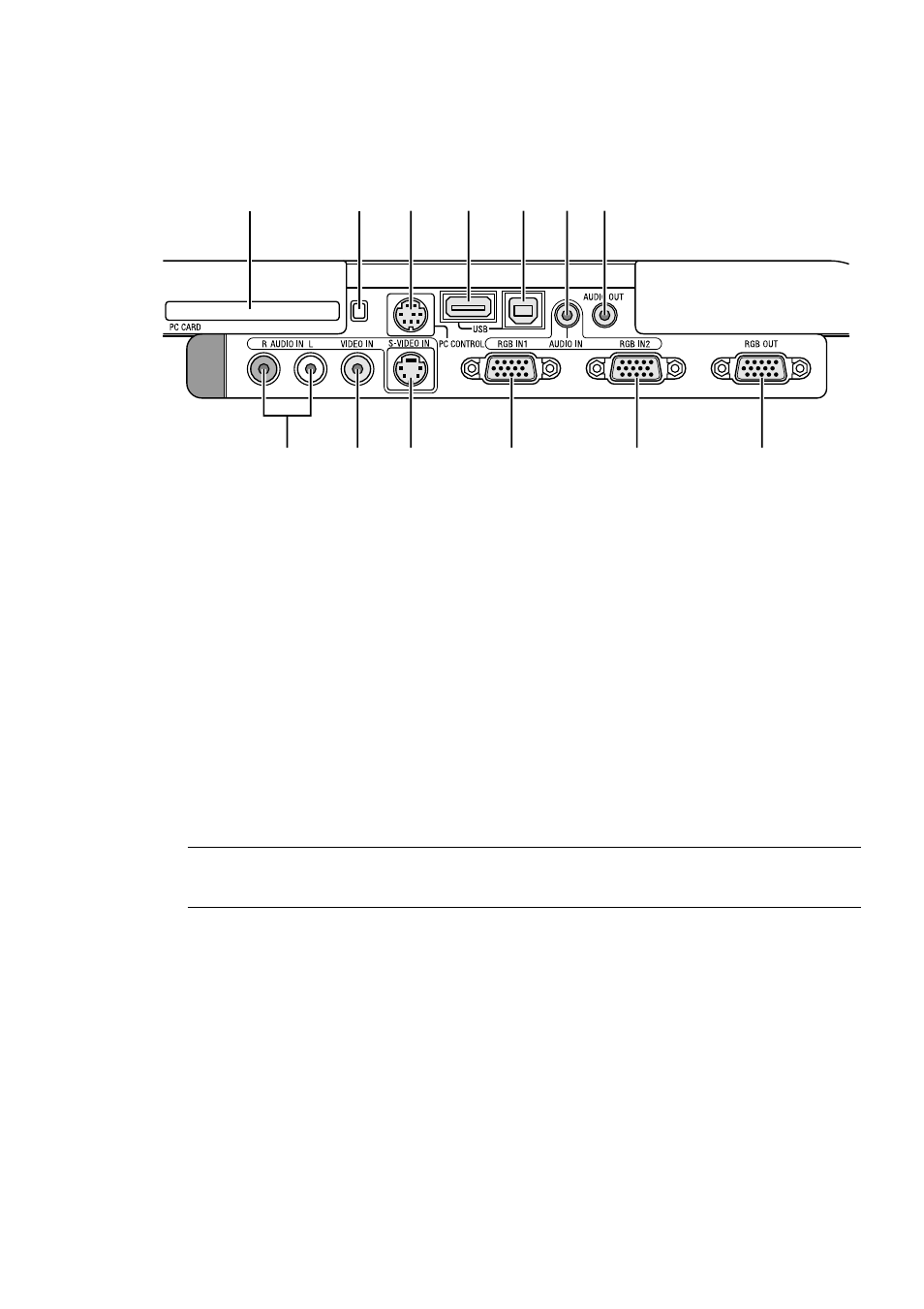

Terminal Panel Features

11 3 5

Terminal Panel Features

1. RGB IN 1 / Component Input Connector (Mini D-Sub 15 Pin)

Connect your computer or other analog RGB equipment such as IBM

compatible or Macintosh computers. Use the supplied RGB cable to

connect to your computer. This also serves as a component input con-

nector that allows you to connect a component video output of compo-

nent equipment such as a DVD player. This connector also supports

SCART output signal. See page E-28 for more details.

2. RGB IN 2 / Component Input Connector (Mini D-Sub 15 Pin)

This connector has the same function as the RGB IN 1 connector.

NOTE: The RGB IN 2 does not support SCART output signal and Plug &

Play.

3. RGB AUDIO IN Mini Jack (Stereo Mini)

This is where you connect audio output from your computer or DVD

player. A commercially available audio cable is required.

4. RGB OUT Connector (Mini D-Sub 15 Pin)

You can use this connector to loop your computer image to an external

monitor from the RGB 1 or 2 input source.

The RGB analog signal set on RGBOUT Terminal is output during idle

mode. See pages E-31 and 100.
