1005r CallPilot server 35
Label Description
R Hard drive 1 pull handle
S Hard drive 1 release lever
T Hard drive 0 pull handle
U Hard drive 0 release level
Back panel

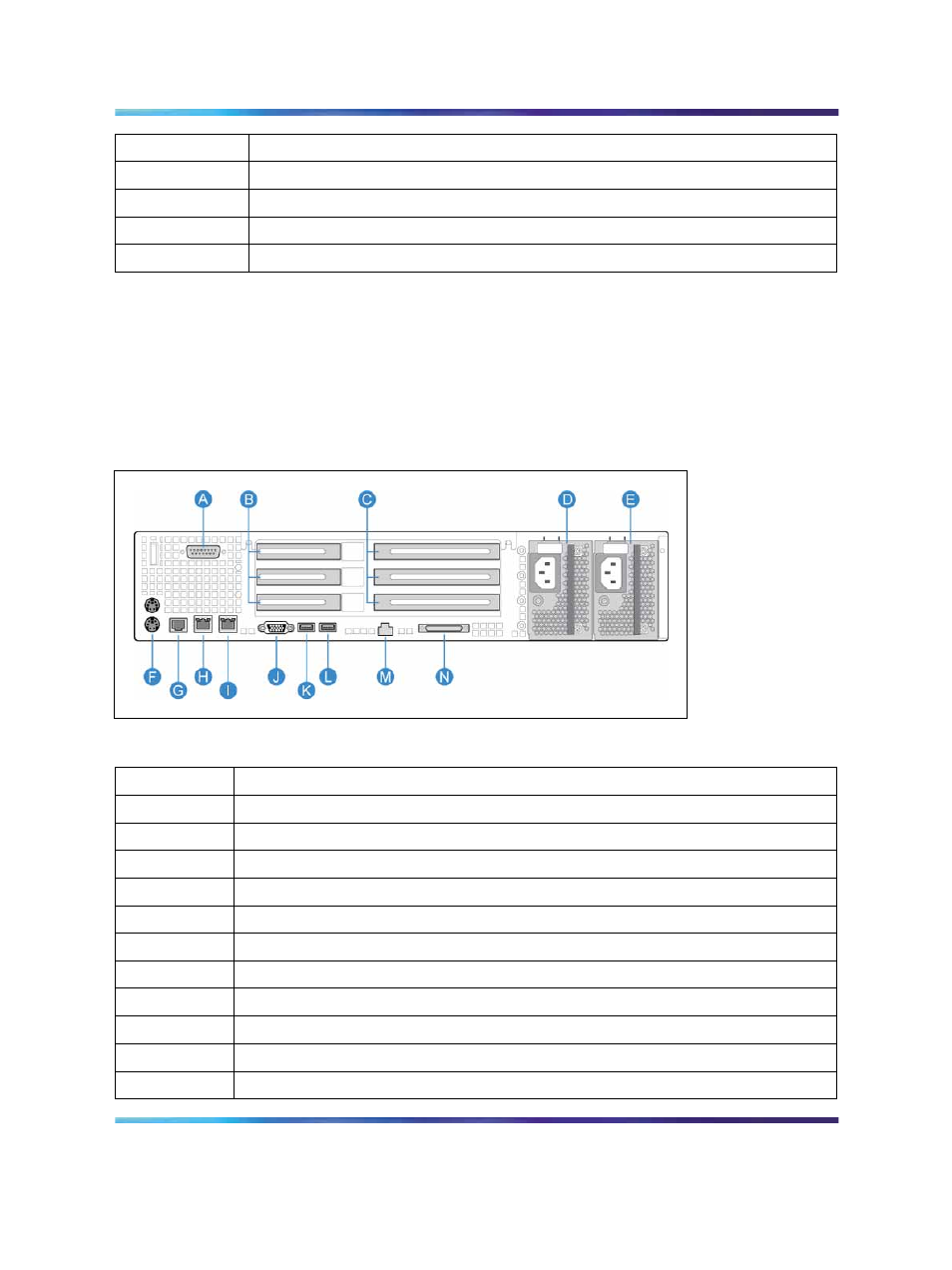

Figure 5 "1005r CallPilot server - back panel" (page 35) shows the back
panel on the 1005r. The back panel controls and features are described in
Table 18 "1005r CallPilot server - back panel controls and features" (page
35)
.
Figure 5
1005r CallPilot server - back panel
Table 18
1005r CallPilot server - back panel controls and features
Label Description
A DB15 Telco alarm connector (not used)
B PCI low profile cards (1, 2, 3 from bottom to top)
C MPB 96 cards (1, 2, 3 from bottom to top)
D Power supply 1
E Power supply 2
F PS/2 mouse and keyboard input
G RJ45 COM2 serial port
H Nortel server subnet (CLAN) input
I ELAN input
J Video input
K USB 1
