MASTER KEYS/SOURCE BUTTONS
The Master Keys available on the Solo
™ and Select ™ Master Keypad Module and the Source Buttons on the
hand-held R-4 Remote accessory (Figure 21) provide "one-touch activation" of the A4.6Ci and its connected
source components.
The Master Keys on the Solo and Select Master Keypad Modules are equipped with back-lit LEDs for indicat-
ing Zone ON/OFF, Zone Mute, and Zone Input Selection status.
The Source Buttons on the R-4 Remote correspond to the Master Keys on the Solo Master Keypad Module
(Master Key 1 = Tuner, Master Key 2 = Source Button 2, Master Key 3 = Source Button 3, and Master Key 4 =
Source Button 4).
The eight available Master Keys and their corresponding four Source Buttons are individually programmable.
Once programmed, they operate the system identically in each zone. Note: Master Keys on the Solo and Select
Master Keypad Module should be labeled the same in each zone.
OPERATIONAL OVERVIEW
Source Buttons on
the Hand-Held R-4
Remote Accessory

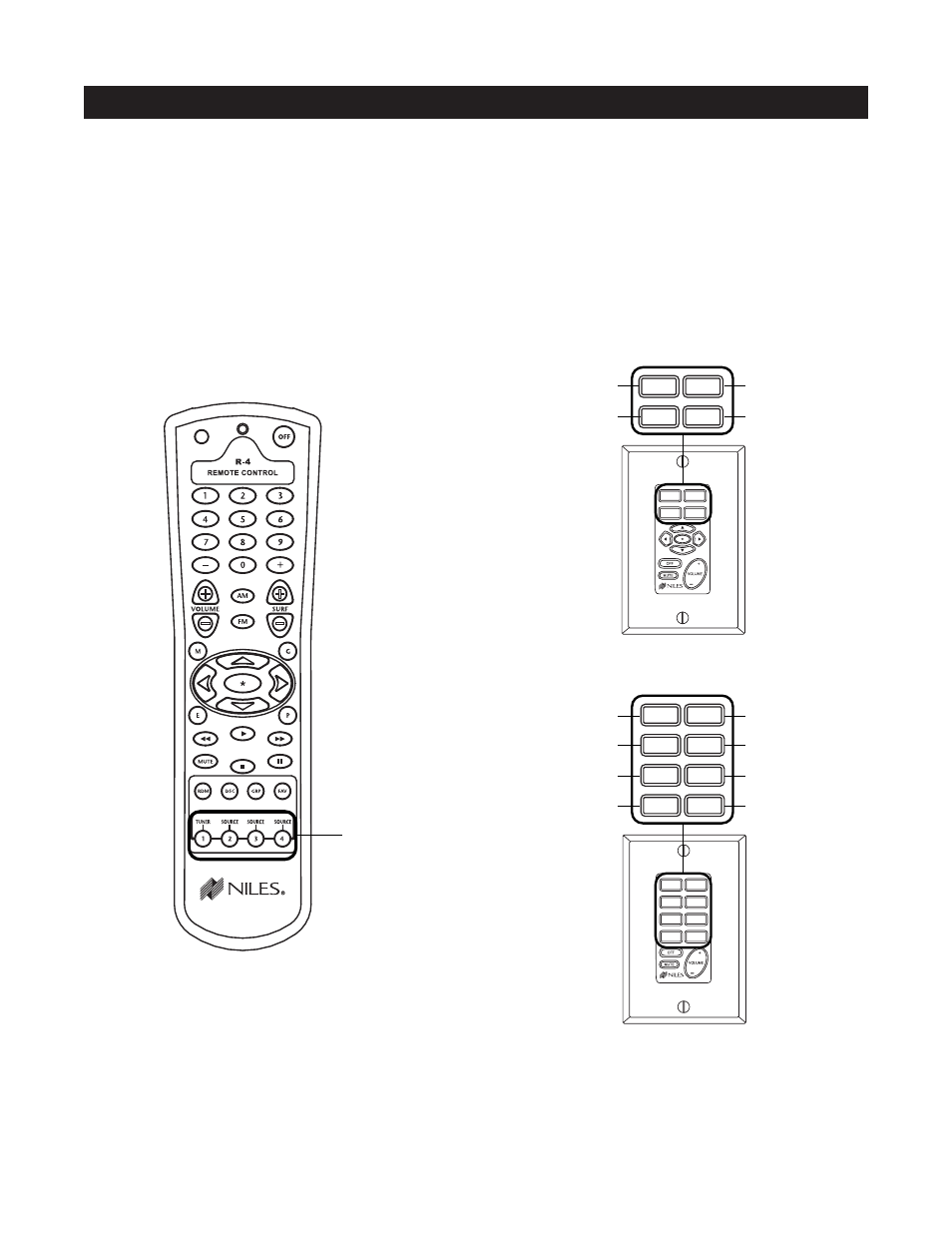

Figure 21
DVD TUNER
CD DSS
Master Keys on the Solo ™
Master Keypad Module
Master Key #2
Master Key #4
Master Key #1
Master Key #3
DVD TUNER
CD DSS
DVD
JAZZ ROCK
BLUES POP
TUNER
CD DSS
Master Keys on the Select ™
Master Keypad Module
Master Key #2
Master Key #4
Master Key #1
Master Key #3
DVD
JAZZ ROCK
BLUES POP
TUNER
CD DSS
Master Key #6
Master Key #8
Master Key #5
Master Key #7
