National Instruments NI MATRIXx Xmath User Manual
Page 113
Chapter 6
Tutorial
6-18
ni.com
Generate Figure 6-14:
syscl = feedback(sysol);
sysolr=sys*syscr;
sysclr=feedback(sysolr);
compare(syscl,sysclr,w,{radians,type=5})
f14=plot({keep,legend=["original","reduced"]})

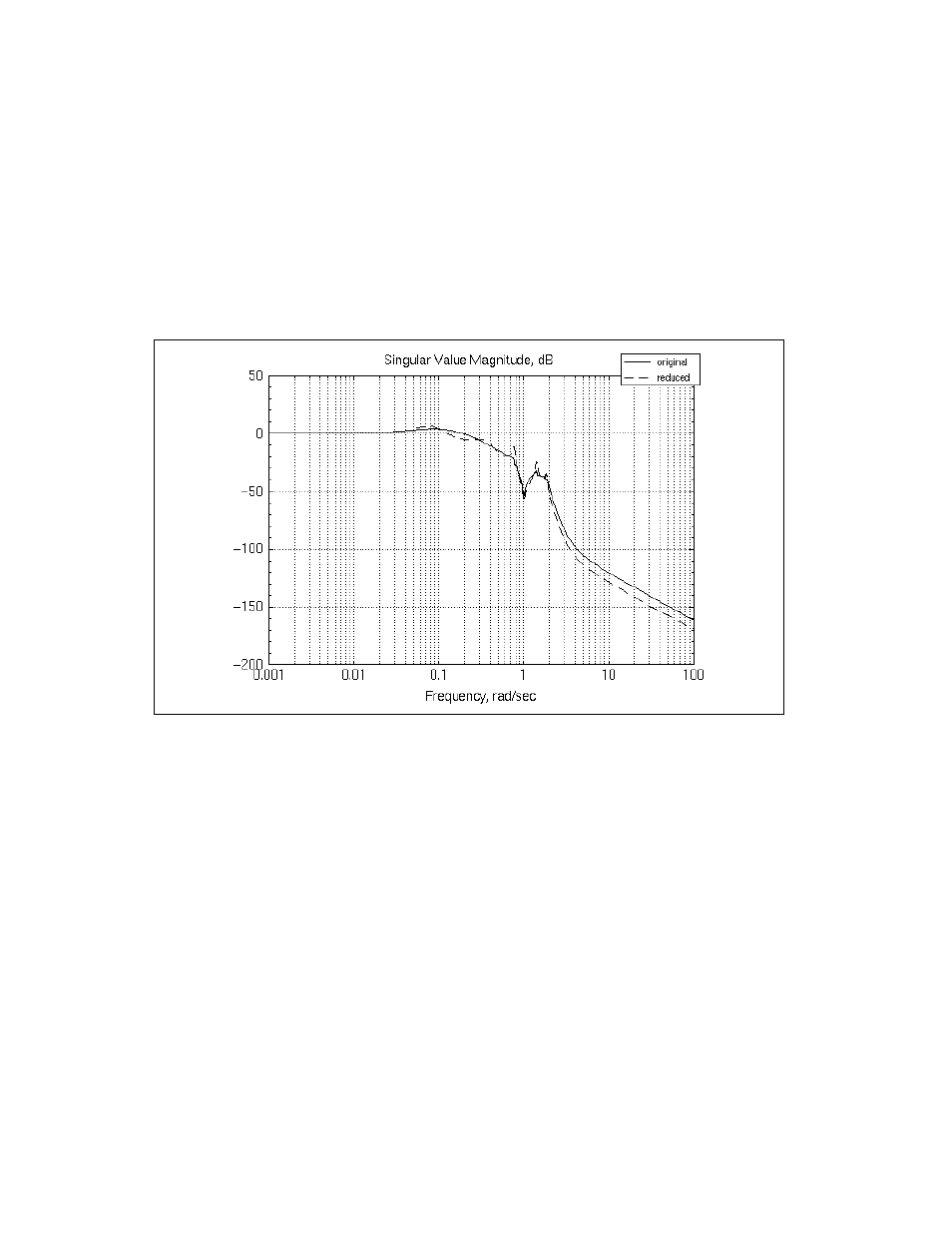

Figure 6-14. System Singular Values of wtbalance with "input spec"
