1. Get started

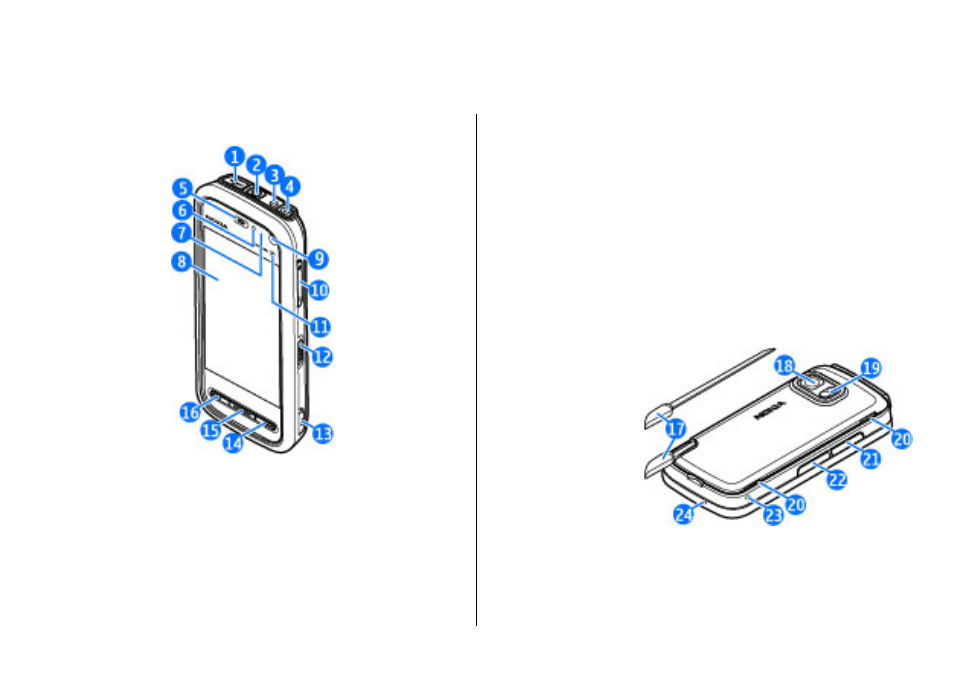

Keys and parts

1 — Micro USB connector to connect to a compatible PC
2 — Nokia AV Connector (3.5 mm) for compatible headsets,

headphones, and TV-out connectors
3 — Charger connector
4 — Power key
5 — Earpiece
6 — Light sensor

7 — Proximity sensor
8 — Touch screen
9 — Secondary camera
10 — Volume/Zoom key
11 — Media key
12 — Screen and key lock switch
13 — Capture key
14 — End key
15 — Menu key
16 — Call key

17 — Pen stylus
18 — Camera lens
19 — Camera flash
20 — Loudspeakers
