LED status monitor & definition 41
3088/I Getting Started Guide 6 • Diagnostic tools
LED status monitor & definition
See LED status indicators in “LED status indicators” on page 21.
System tools for testing
Testing and troubleshooting can utilize a broad range of tools. Various types of tools are a part of the 3088/I
capabilities, from observing the LED’s status, tracking the error counters, and using network tools which are
described in this section.
Ping & Traceroute
Ping and Traceroute are familiar to all IP network users. Go to the Tools hyperlink under System Management in
the Configuration Menu. You will find both Ping and Traceroute tools available. Enter the IP address that you
want to ping or traceroute. Click on the appropriate button to invoke the desired test.

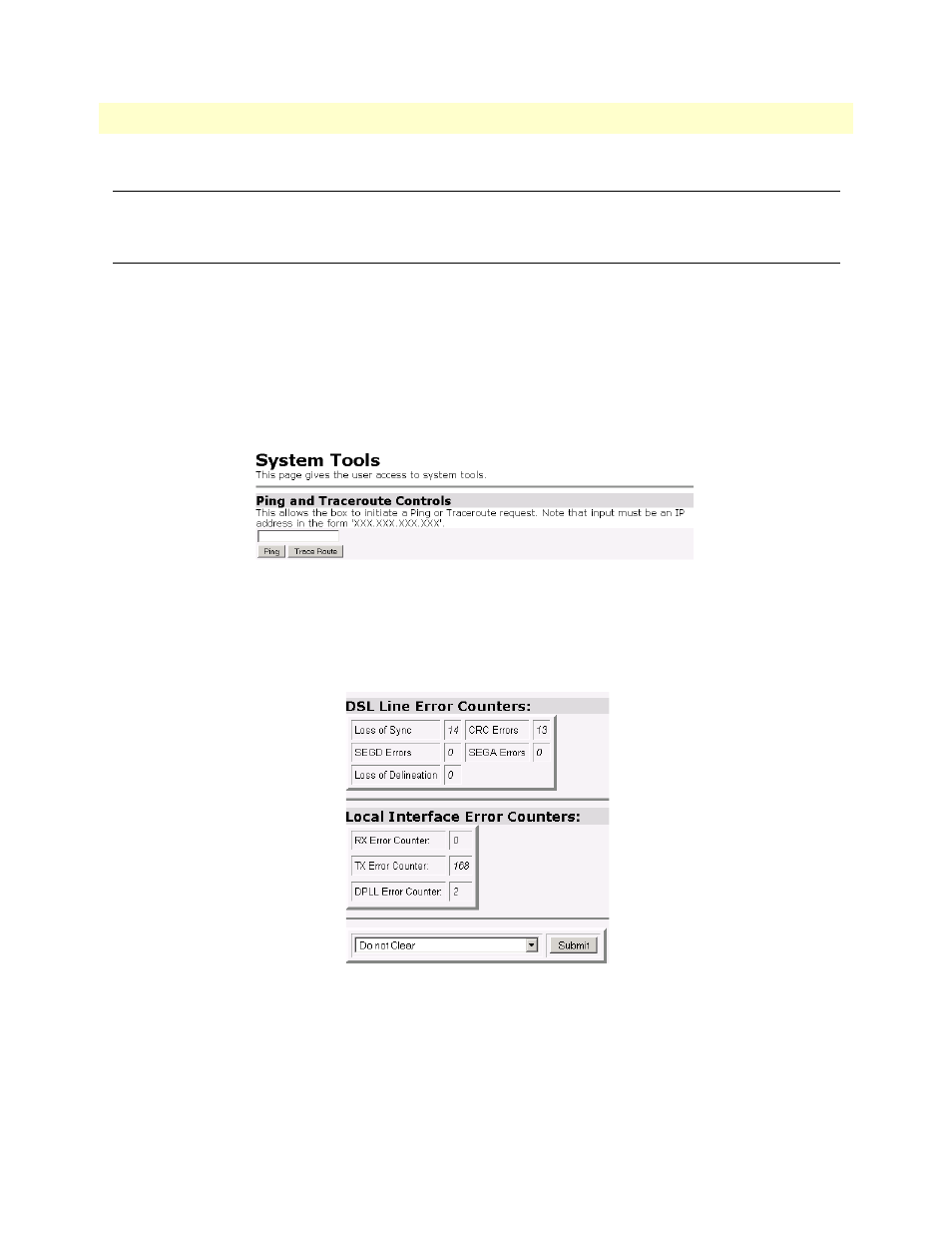

Figure 29. Ping and Traceroute
Clearing error counters
The error counters may be cleared in the Configuration web page or here in the Status web page. Select Clear All
Counters and click on the Submit button.
Figure 30. Clearing Error Counters
