Configure the IP address 19
3088/I Getting Started Guide 2 • Initial Configuration
Connect to the local IP network
Now you can connect the G.SHDSL NTU to your local IP network and complete the remaining configura-
tion from your PC using a standard web browser.
Connect the G.SHDSL NTU’s Ethernet port (green) to the same Ethernet segment as your PC (see figure 4 ).
The front-panel Ethernet Link LED should turn on. If it does not, press the rear-panel MDI-X switch so that
the Ethernet Link LED illuminates.
You can check the connection with the ping command. For example shown in figure 4 , you would ping
10.10.4.10 from a PC on the IP network.

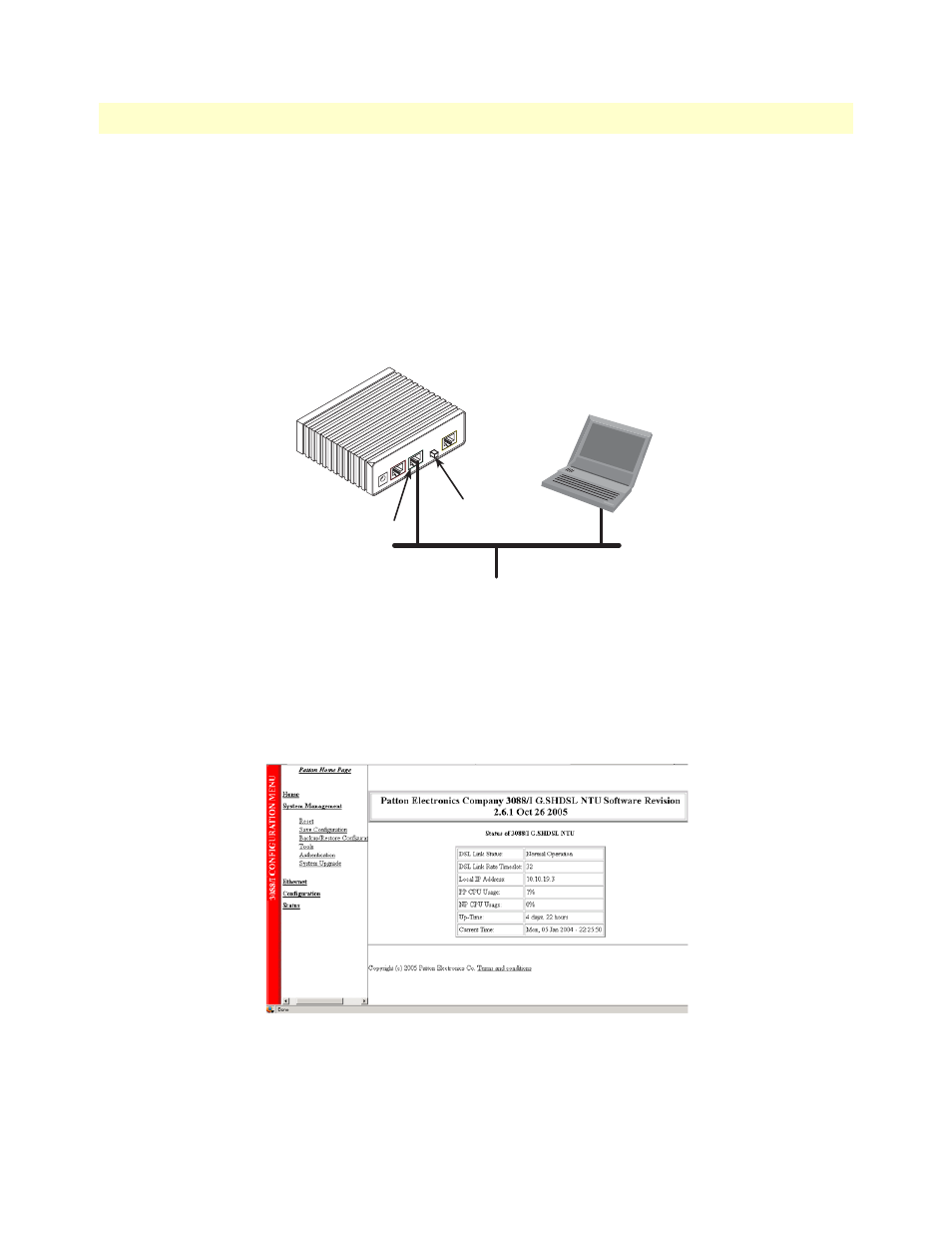

Figure 4. Connecting the G.SHDSL NTU to the local IP network (Model LB510A shown)
Log onto the web management interface
You will now access the web management graphical user interface (GUI) to configure the G.SHDSL NTU
using a standard web browser (such as Netscape Browser, Mozilla Firefox, or Internet Explorer).
1. At your PC, open a web browser and enter the IP address you assigned to the NTU’s Ethernet LAN port
in step 2 of section “Modify the IP address” on page 18. (In this example, 10.10.4.10.) (see figure 5 )
Figure 5. G.SHDSL NTU web management home page
2. Log in to the web management home page using the username superuser and the password superuser.
MDI-X
Line
Ethernet
Power
Console
Connect to Ethernet port Ethernet port
PC
MDI-X switch
