Saving the configuration 35
3088/I Getting Started Guide 5 • System Management
Saving the configuration
To save all configuration changes into non-volatile memory, click on the hyperlink Save Configuration in the
System Management menu item. Click on the Save button and wait until you see the message that verifies the
save was executed properly.

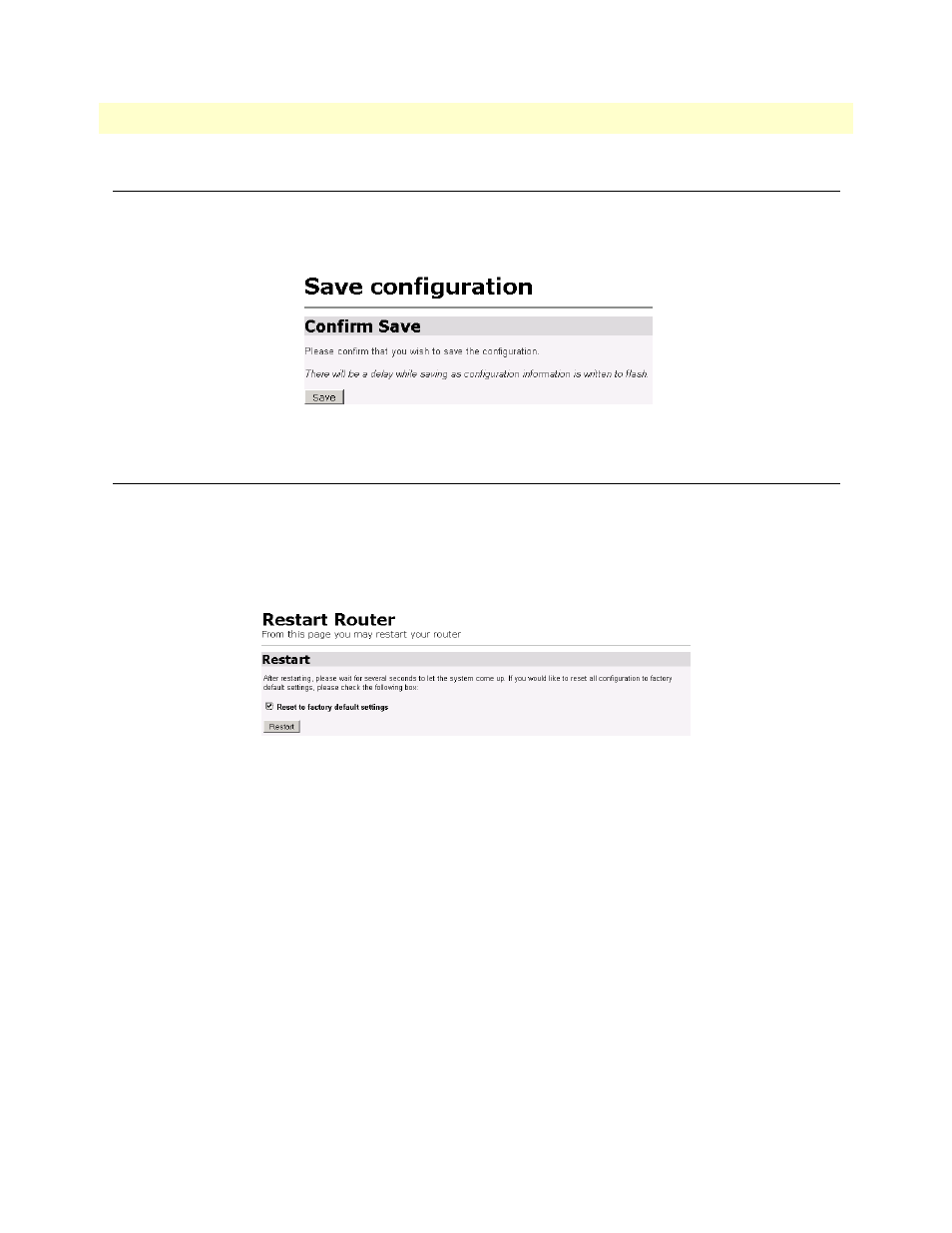

Figure 20. Saving the configuration to non-volatile memory
Reset for Factory Default
To recover from a forgotten password, the user may reset the unit to its factory configuration. Click on the
Reset hyperlink in the System Management menu. If you want to reset to factory default settings, check the box
for that function. (See
figure 21 .) Click on the Restart button. Wait until the 3088/I has completely restarted
before doing anything. At this point, you should return to the console port since the IP address also returns to
its default setting. (See the next section.)
Figure 21. Resetting the 3088/I to factory default
Console
The 3088/I offers a console command line interface. The terminal emulator should be configured to 9600 bps/
1 stop bit/ no parity/ XON-XOFF flow control. This is typically used when doing the initial configuration of
the IP address and subnet mask. (See also
“Configure the IP address” on page 17.)
