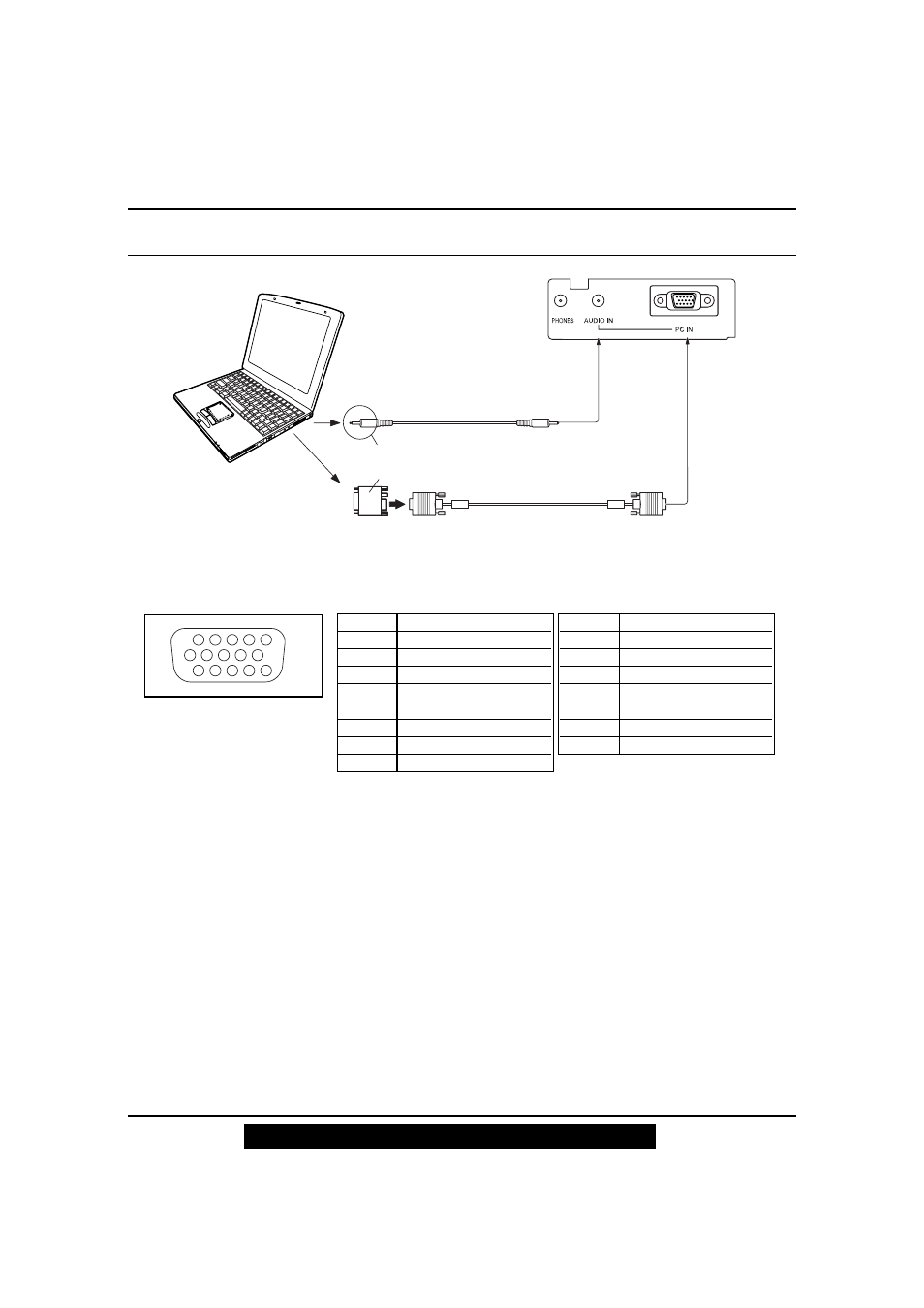

How to connect the PC Input Terminals
Signal Names for D-SUB 15P Connector
Pin Layout for PC Input
Terminal
Notes:
• Some PC models cannot be connected to the set. A conversion adapter is required to use the RGB cable (D-SUB
15P) to connect a Macintosh computer to the set. There is no need to use an adapter for computers with PC / AT
compatible D-SUB 15P terminal.
• The computer shown in the illustration is for example purposes only. Additional equipment and cables shown are not
supplied with this set.
• The picture will become dark if an RGB signal with a vertical scanning frequency of 62 Hz is input. To obtain the
optimum picture quality with the projection display, a vertical scanning frequency of 60 Hz is recommended.
• Do not set the horizontal and vertical scanning frequencies for PC signals which are above or below the specified
frequency range.
• Select the desired RGB input position by pressing the TV/VIDEO button. (P. 33)
Installation
PC audio cable (M3 stereo mini pin)
Connect a cable which matches
the audio output terminal on the computer.
Conversion adapter (If necessary)
RGB cable (D-SUB 15P)
COMPUTER
Pin No. Signal name
1 R
2 G
3 B
4 NC
5 NC
6 Ground for R
7 Ground for G
8 Ground for B
Pin No. Signal name
9 NC
10 Ground
11 NC
12 NC
13 HD/CSYNC
14 VD
15 NC
1
6 7 8
3
9
4 5
10
15 14 13 12 11
2
NC: Not connected
