Getting Started
Installation
How to connect the AV Out Terminals
The “AV Out” Terminals output the same signals as the main picture on the projection display screen and sound from
the speaker at that time, e.g. TV programs or signals from INPUT 1, 2, 3 terminals.
Notes:
• Never connect the VIDEO IN and OUT terminals to the same video recorder, as this could cause incorrect operation.
• Even if TV is in Split or PIP mode, OUT terminals only output the main picture and sound signals. A sub-picture,
including channel search, etc., will not be output.
• VIDEO OUT terminals will not output Y, P B , P R , or RGB signals.
• The S-Video OUT terminal outputs the same signal that is input from the S-Video IN terminal.

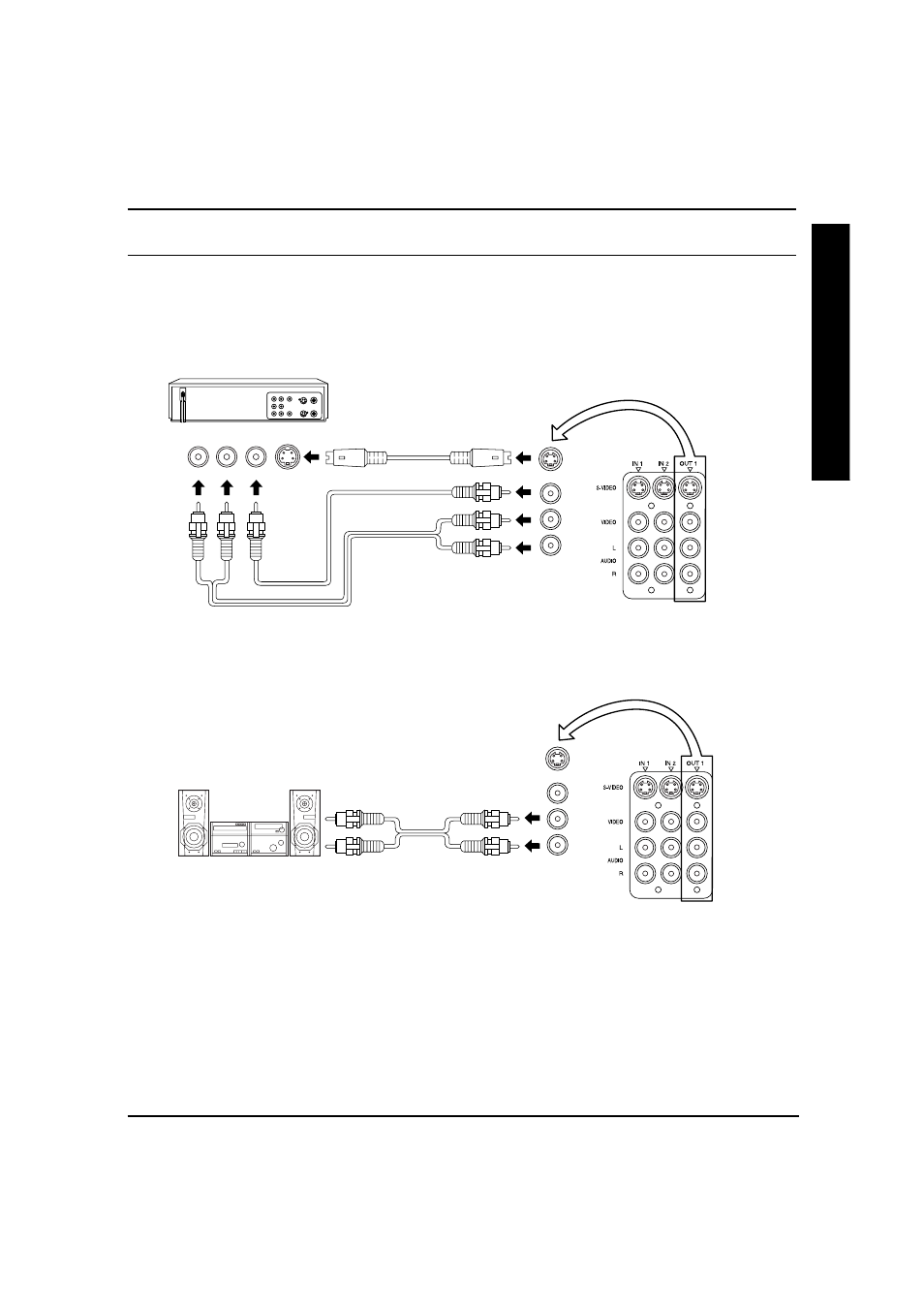

Recording Equipment
(VHS VCR)
VIDEO
AUDIO
Audio
IN
Video
IN
S-Video
IN S-VIDEO
R L
(A Stereo Amplifier and Speakers)
Stereo System
AUDIO
Or
