Operation

42

Planar PD7170 Installation/Operation Manual

PREL

IMINA

RY

Native

Select Native to

display the source

signal in its native
resolution, centered in

the display area with

no re-sizing or
overscan.

With SDTV and EDTV
sources, the PD7170

scales the image

horizontally to achieve
a 16:9 aspect ratio.

16:9

4:3

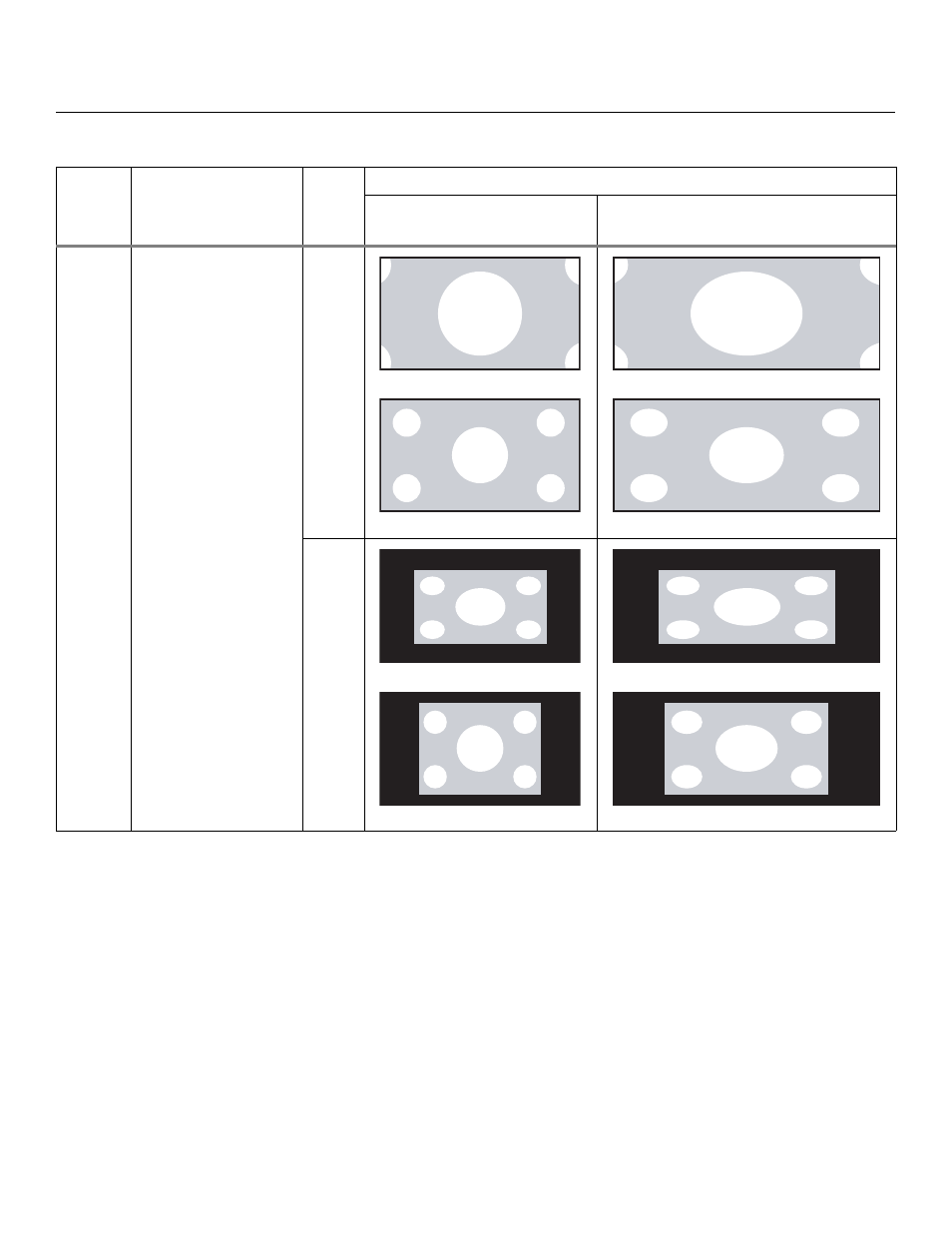

Table 4-2. Aspect Ratio Settings (continued)

Aspect

Ratio

Setting

Description

Aspect

Ratio of

Source

Signal

Geometry of Projected Image

With Standard Lens

(1.78:1 Screen)

With Anamorphic Lens (2.35:1 Screen)

1080i HDTV Image

720p HDTV Image

1080i HDTV Image

720p HDTV Image

480i SDTV Image

800x600 PC Image

480i SDTV Image

800x600 PC Image
