Page 22: 3. pd7170 rear panel, Prel imina ry
8
Planar PD7170 Installation/Operation Manual
PREL
IMINA
RY
2.2
PD7170 Rear Panel
Figure 2-3 shows the PD7170 rear panel.

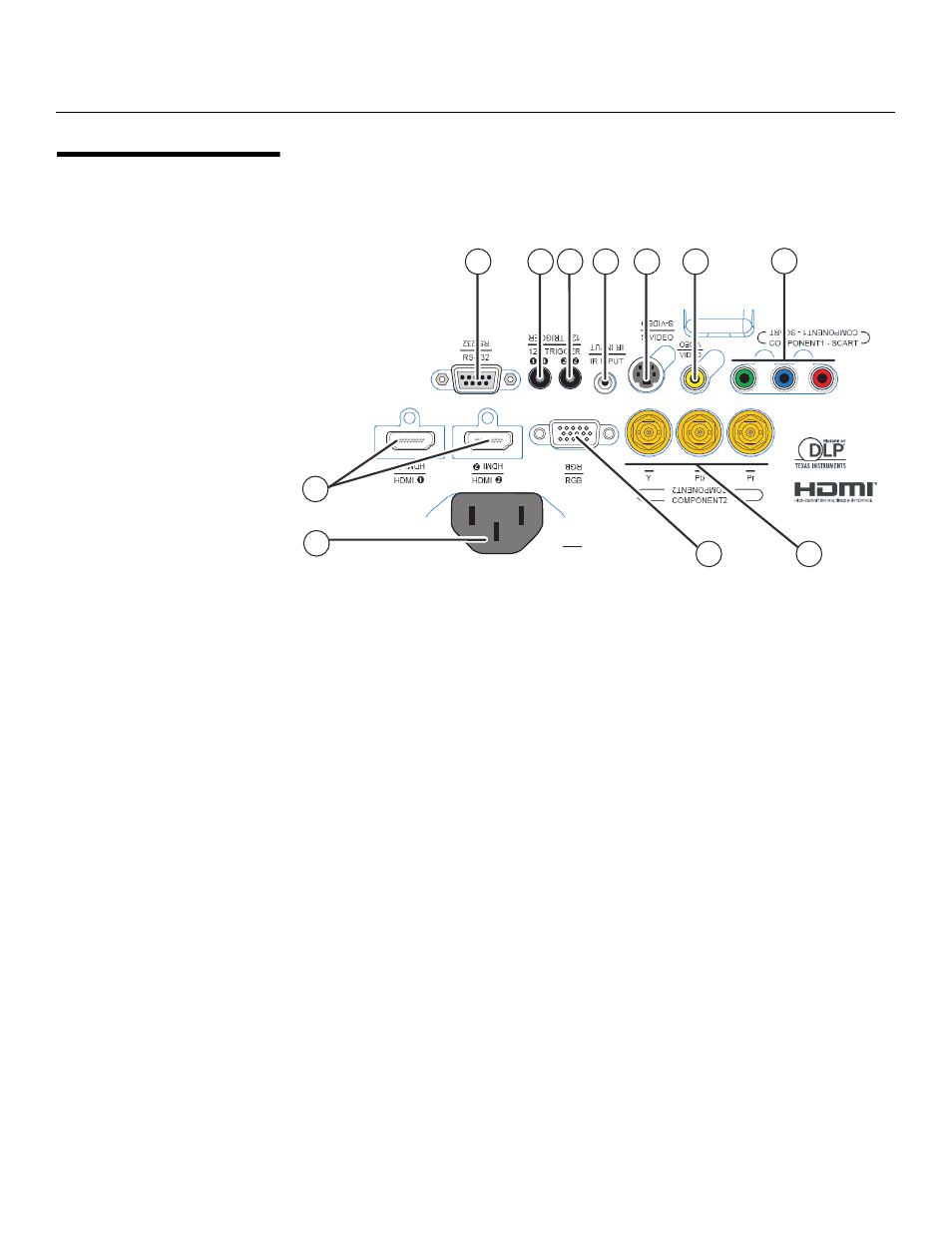

Figure 2-3. PD7170 Rear Panel
1. HDMI 1 (Digital)
HDMI 2 (Digital)
HDCP-compliant digital video inputs for connecting an HDMI or DVI source.
2. POWER INPUT (100 to 240 VAC)
Connect the PD7170 to power here.
3. RGB
Provides a standard, 15-pin VGA-style connection to either an RGB or
component high-definition source, or to a personal computer. The PD7170
automatically detects the input signal resolution.
4. COMPONENT 2
Three BNCs for connecting component (YPbPr) video sources.
5. COMPONENT 1/SCART (RCA connectors)
Standard- or high-definition (480i/480p/576i/576p/720p/1080i/1080p)
Component (YPrPb) input for connecting a DVD/HD-DVD/BD player, HD
set-top box or other SD/HD source. Also provides RGB input for RGBS
sources.
6. VIDEO
Standard composite video input for connecting a VCR, laser disc player or
other composite video source. Also provides composite sync input for RGBS
sources.
AC
AC
1
5
2
3
6
7
8
9
11
4
(PD8150
only)
(PD8150
only)
10
