Main, Figure 4-2 . pd7170 main menu, Prel – Planar PD7170 User Manual
Page 53: 2. pd7170 main menu, Prel imina ry
Planar PD7170 Installation/Operation Manual
39
PREL
IMINA
RY
The PD7170 Main Menu, shown in Figure 4-2, provides access to the most
commonly-used projector functions.

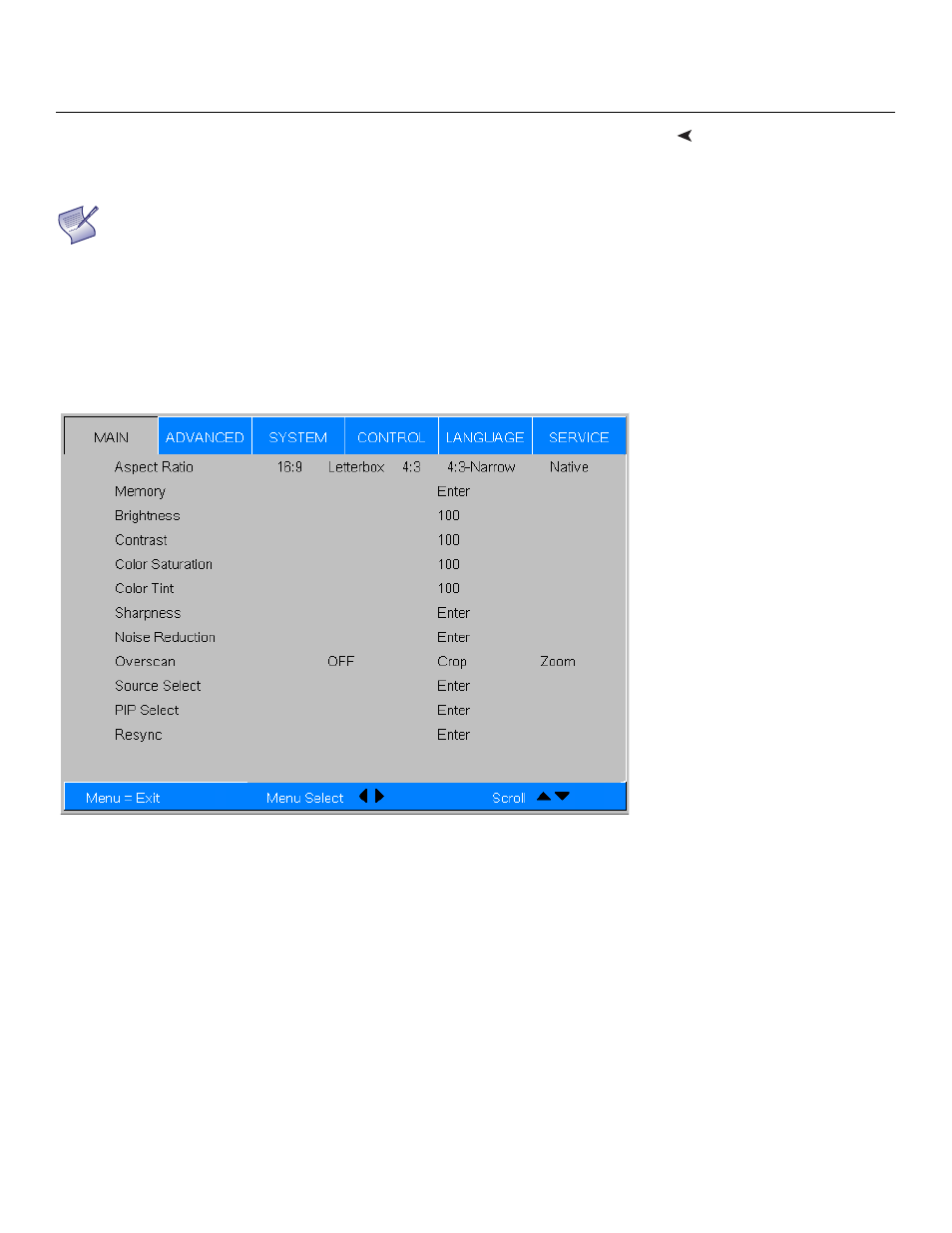

Figure 4-2. PD7170 Main Menu
1. For best results, Planar recommends that you set
DynamicBlack to Off before adjusting Brightness, Contrast
and other image quality settings in this menu (refer to
DynamicBlack on page 52). After you have completed the
initial calibration, set DynamicBlack to On if desired.
2. Image controls only operate on the active source. To adjust
the PIP source, switch to the PIP source (thereby making it
the active source), adjust the controls and then switch
back.
Note
