29
English
There is a wide range of audio and video equipment that can be connected to your TV.
The following connection diagrams show you how to connect them.
Note:
EXT1 can handle CVBS, RGB and Audio L/R;
EXT2 CVBS,Y/C, RGB and Audio L/R;
EXT3 CVBS and Audio L/R;
DVI can handle VGA, SVGA, XGA and 480p, 576p, 720p, 1080i and 1152i
Side can handle CVBS, S-VIDEO and Audio L/R.
It is preferable to connect peripherals with RGB output to EXT1 or EXT2 as RGB provides a better picture quality.
Note: If your recorder is provided with the EasyLink function, it should be connected to EXT2 to benefit from the
EasyLink functionality.
EXT2 EXT1 DVI AUDIO AUDIO
OUT
CENTRE
SUBW
IN
ANTENNA
R
L
R
L
EXT3

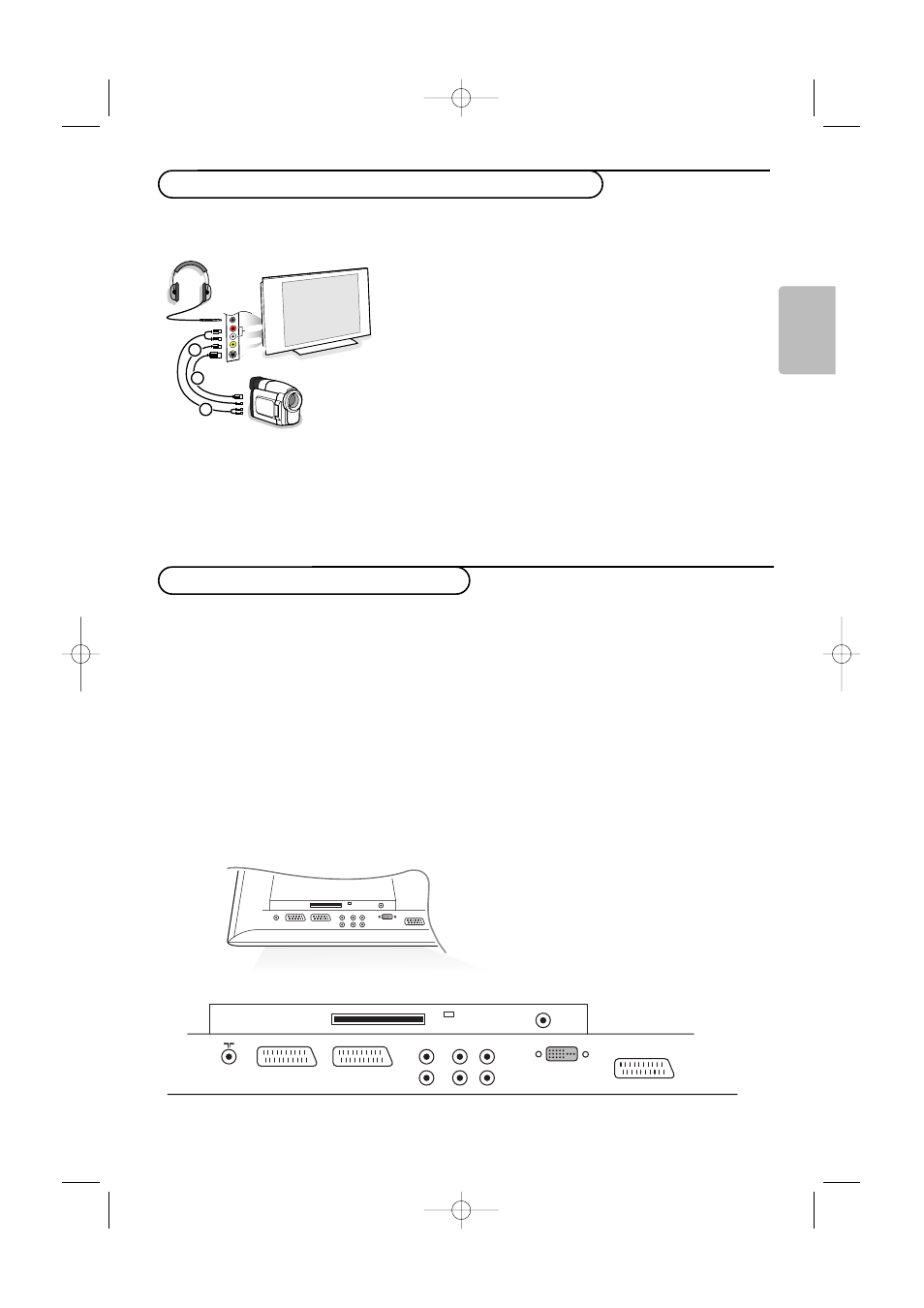

Camera, Camcorder or Game
& Connect your camera, camcorder or Game as shown.
é Connect to VIDEO 2 and AUDIO L 3 for mono
equipment. For stereo equipment also connect
AUDIO R 3.
S-VHS quality with an S-VHS camcorder is obtained by
connecting the S-VHS cables with the
S-VIDEO input 1 and
AUDIO inputs 3.
Do not connect cable 1 and 2 at the same time. This may cause
picture distortion !
Headphone
& Insert the plug into the headphone socket L as shown.
é Press ¬ on the remote control to switch off the internal
loudspeakers of the TV.
The headphone impedance must be between 8 and 4000 Ohm. The
headphone socket has a 3.5 mm jack.
In the Sound menu select
Headphone volume to adjust the
headphone volume.
VIDEO
3
2
1
S•VIDEO
AUDIO
Connect Peripheral Equipment
Equipment to connect to the side connections
