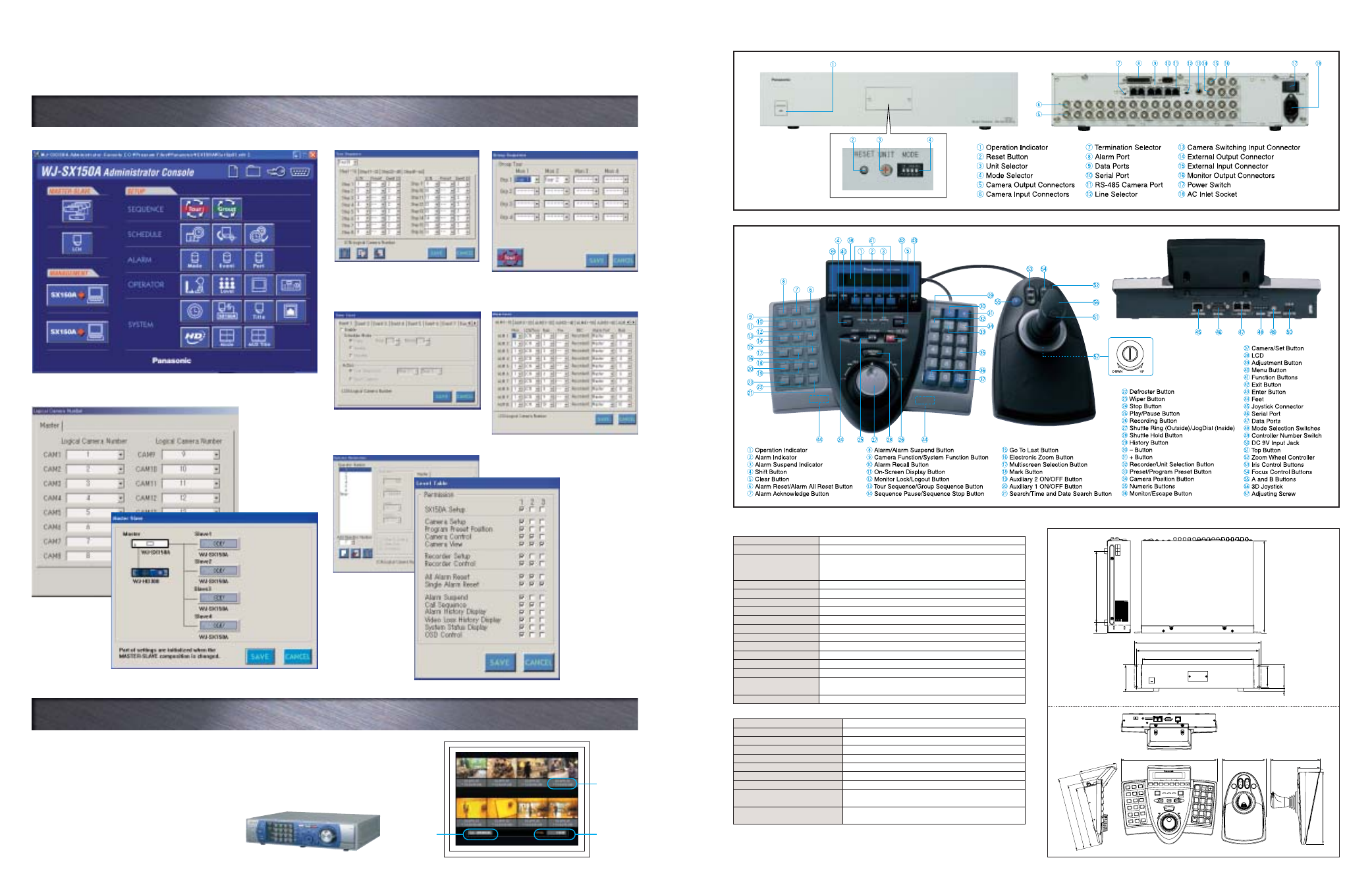

MAJOR OPERATING CONTROLS
Matrix Switcher; WJ-SX150A
Front View Rear View
System Controller; WV-CU650
Front View Rear View
Main Menu
Operator Registration
This menu can be used to program which monitor will
carry out the spot/tour sequence of a specific camera,
when an alarm signal is input.
This window is used to edit a tour sequence. There
are 32 tour sequences available, each with up to 64
steps. Each step needs a camera number associated
pan/tilt preset position and a dwell time.
Alarm Event
Tour Sequence
Timer Event
This window is used to edit a group sequence. There are
4 group sequences available, each with up to 4 monitors.
Group Sequence
This window is used to
restrict the operators'
control of functions
according to their levels.
Level Window
This window is used to
assign the camera control
to the operators, according
to their priorities.
The Matrix System150 can be connected to a WJ-HD300A Series Digital Disk
Recorders equipped with a high-capacity hard disk drive to construct a
featured-loaded system for long-duration recording of multiple types of high-
quality images. The Filtered Search function supports searches using multiple
date/time and camera channel criteria. The Playback VMD function instantly
identifies scenes with movement, making it
simple to find and playback critical scenes
buried in large amounts of image data. Search
results can be displayed as thumbnails.
Simple System Setup from a PC Simple System Setup from a PC
Flexible and Compatible with a Wide Range of Equipment Flexible and Compatible with a Wide Range of Equipment
System Configuration is Simple and Trouble-Free.
The main menu is the heart of the System150 Setup Utility.
The above all photographs were taken for the purpose of explanation; actual images may differ.
This window can be used to edit the time and type of
action.
SPECIFICATIONS
System Controller; WV-CU650 (for WJ-SX150A)
APPEARANCE
WJ-SX150A
Unit: mm (Inches)
Power Source 120 V AC, 60 Hz
Power Consumption 60 W
Camera Input (1 - 16) 1.0 V[p-p]/75 Ω composite video signal
0.5 V[p-p]/75 Ω data signal and
2.5 V[p-p]/75 Ω vertical timing pulse multiplexed
Camera Output (1 - 16) 1.0 V[p-p]/75 Ω composite video signal
Monitor Output (1 - 4) 1.0 V[p-p]/75 Ω composite video signal
External Input 1.0 V[p-p]/75 Ω composite video signal
External Output 1.0 V[p-p]/75 Ω composite video signal
RS-485 (Camera) Port RS-485 6-conductor modular jack
Data Port RS-485 6-conductor modular jack
Alarm Port 25-pin D-sub connector
Serial Port 9-pin D-sub connector
Camera Switching Input RCA pin jack
Ambient Operating Temperature –10 °C ~ +50 °C (14 °F ~ 122 °F)
Ambient Operating Humidity Less than 90 %
Dimensions 420 mm (W) x 88 mm (H) x 350 mm (D) (without rubber foot)
(16-9/16" (W) x 3-7/16" (H) x 13-3/4" (D))
Weight (approx.) 6 kg (13.2 lbs.)
480 (18-7/8")
420 (16-9/16")
465 (18-5/16") (Mounting Pitch)
350 (13-3/4")
270 (10-5/8")
40 (1-9/16")
88
(3-7/16")
98 (3-7/8")
76 (2")
(Mounting Pitch)
10
(3/8")
WV-CU650
290 (11 -7/16" ) 134 (5 -1/4" )
111 (4
-3/8"
)
2.5 (1 /8" )
180 (7
-1/16"
)
194 (7
-5/8"
)
221 (8
-11/16"
)
218 (8
-9/16"
)
1 (1
/16"
)
146 (5 -3/4" )
64 (2 -1/2" )
CLEAR OPERATE
ADJUST MENU F1 F2 F3 F4 EXIT ENTER
ALARM
PLAY/PAUSE
SHUTTLE HOLD
STOP
REV FWD
REC STOP REC
ALARM ALM RESET ACK
ALM SUSPEND ALM ALL RESET
OSD CAM FUNC ALM RECALL
SEQ PAUSE MON LOCK TOUR SEQ
MULTI SCREEN GOTO LAST EL-ZOOM
AUX1 ON MARK AUX2 ON
OFF OFF
WIPER SEARCH DEF ON
OFF T&D SEARCH
SEQ STOP LOGOUT GROUP SEQ
SYS FUNC
1 3
PREV
RECORDER PRESET PGM PRESET CAM POSI
CAM (SET) MON (ESC)
UNIT
2
4 6 5
7 9 8
0
ALM SUSPEND SHIFT
+ –
SYSTEM CONTROLLER
WV-CU650
DC9V IN MODE DA TA SERIAL CONTOR OLLER NO. JOYSTICK
OPEN
IRIS
CLOSE
FAR
FOCUS
NEAR A B
Power Source 9 V DC, 300 mA (using the supplied AC adapter)
Power Source (supplied AC adapter) 120 V AC, 60 Hz, 200 mA
Data Output/Input Port 6-conductor modular jack (RS-485, Full duplex) x2
Serial Port 9-pin D-sub connector
Controller Number 1 to 8 (rotary switch)
Ambient Operating Temperature –10 °C ~ +50 °C (14 °F ~ 122 °F)
Monitor Number Selection 1 to 4
Camera Number Selection Up to 64
Dimensions (W x H x D) Main Unit: 290 x 111 x 221 mm (11-7/16" x 4-3/8" x 8-11/16")
3D Joystick Unit: 134 x 146 x 218 mm (5-1/4" x 5-3/4" x 8-9/16")
Weight (without the AC adapter) Main Unit: 1.3 kg (2.86 lbs.)
3D Joystick Unit: 0.8 kg (1.76 lbs.)
Matrix Switcher; WJ-SX150A
Logical Camera Number
Master - Slave
System Configuration Software is Included.
WJ-HD316A Ensures
High-quality, Moire-free Images
Time and date
Camera channel/
Recording event Number of
listed data
