Playing Back Pictures on a TV Screen
Playback Mode: 9
Playing back pictures using the AV cable
Preparations:
Set the [TV ASPECT]. (P
)
Turn this unit and the TV off.
• Do not use any other AV cables except the supplied one. (Only for DMC-F2PU/
DMC-F2PR).
• Do not use any other cables except a genuine Panasonic AV cable (DMW-AVC1: optional).
(Only for DMC-F2P/DMC-F2PC)

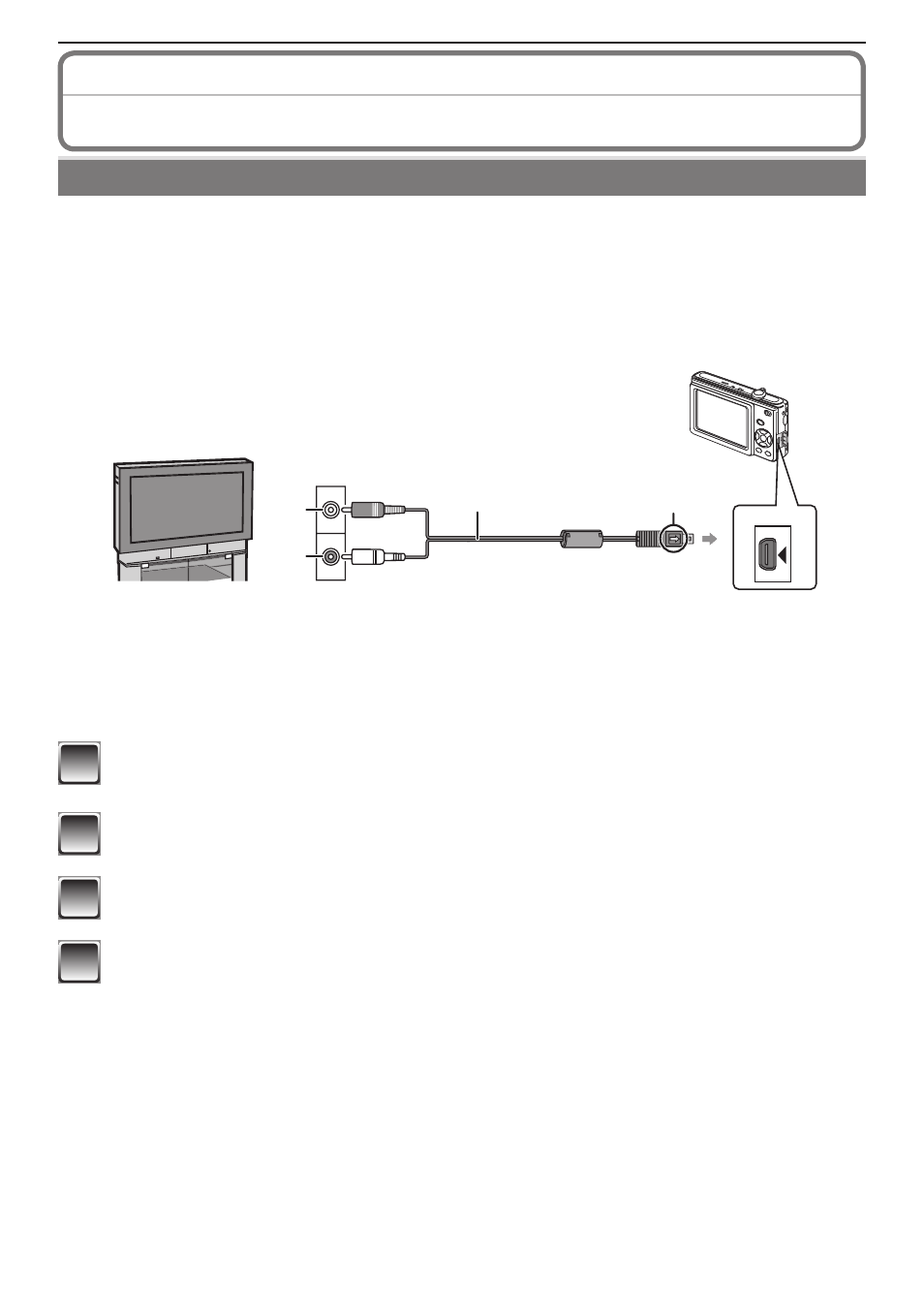

B
1
2
A
AV OUT
DIGITAL
1
Yellow: to the video input socket
2
White: to the audio input socket
A
Align the marks, and insert.
B
AV cable
• Check the directions of the connectors, and plug them straight in or unplug them straight
out. (Otherwise the connectors may be bent out of shape which will cause trouble.)
1
Connect the AV cable B to the video input and the audio input
sockets on the TV.
2
Connect the AV cable to the [AV OUT/DIGITAL] socket on the camera.
3
Turn the TV on and select external input.
4
Slide the recording/playback switch to [5].
Turn the camera on and play back the picture.
