2.2 External Dimensions
PDP-507CMX
WEIGHT: 35.5 kg (78.3 lbs) (without stand)
MATERIAL: Front: Resin; Rear cover: Metal plate, Front protector panel: Glass
TREATMENT: Front: Paint; Rear cover: Paint (All paints are Pioneer original colors)
For packaging information, refer to “3.4.2 Unpacking” (pg. 30).
(Unit: mm)
: center of gravity

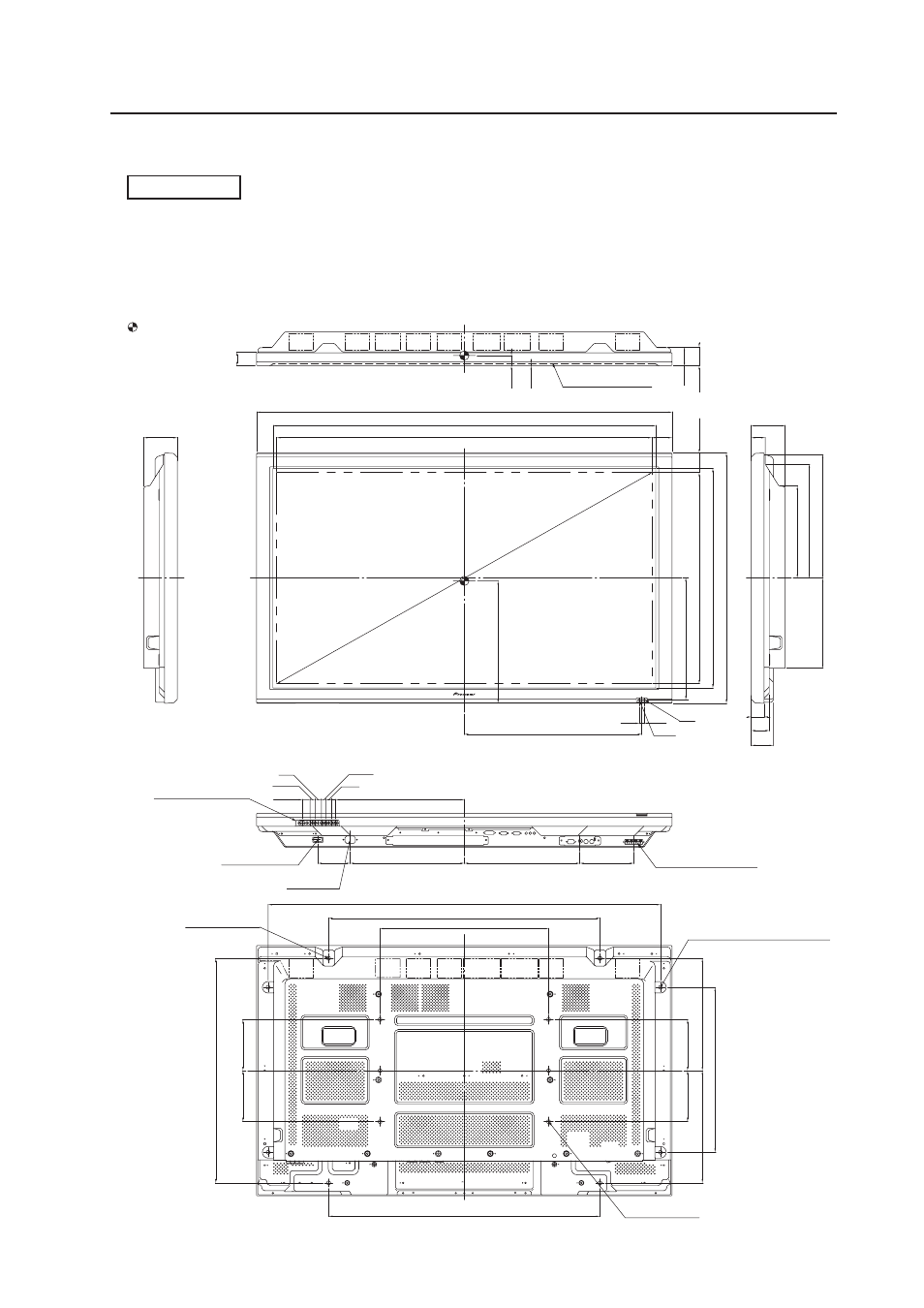

External Dimensions
99
41
TOP VIEW
1222
1126
1103.6(SCREEN AREA)
5.5 30 FILTER SURFACE 53
54.5
99
41
57.55
59
271
335.5
363.7
264.6
736 646
620.9(SCREEN AREA)
357.85
360
38
53
65
RIGHT SIDE VIEW
IR
LED
7.5 7.5
522
1266.3
LEFT SIDE VIEW
19 13.5
14.7 15
13.5 22.3 378 CONTROL BUTTONS
POWER BUTTON
AC INLET
4-M8.DEPTH14
BOTTOM VIEW
95 335.7 339.9 158.6 SPEAKER TERMINAL
FOR SPEAKER(M8.DEPTH12)
1154
798
496
150
150
330
330
485
6-M8.DEPTH18
REAR VIEW
798
150
150
660
