3.2.2 Calculating heat quantity
As a courtesy to our customers, we have included the power formula for calculating air conditioning needs.
For power consumption, allow 370 W = 370 VA per unit.
Since most of the power consumed is transformed into heat, power consumption may be regarded as roughly equal to
generated heat.
1 Conversion to calories
[W] × 0.86 = [kcal/h]
Heat generated per display: 370 W × 0.86 = 318 kcal/h
2 Conversion to British Thermal Units
[W] × 3.41 = [BTU/h]
Heat generated per unit: 370 W × 3.41 = 1262 BTU/h
3.2.3 Product mounting holes
We recommend using mounting hardware available from Pioneer. If you use other mounting hardware, mount the
hardware to the unit using the M8-bolt holes on the unit. Tighten the bolts with a torque between 50 kg/cm and 80 kg/
cm. Applying a torque beyond these limits may lead to internal component failure.
Locations of usable mounting holes are shown below.
Installation Conditions
Always use a minimum of 4 mounting holes that are evenly distributed on opposite sides of both the horizontal
and vertical center lines.
Use bolts that can be driven 12 mm to 18 mm into holes “a” and from 12 mm to 14 mm into holes “b” as shown
in the Side View above.
Do not block or cover vents on the rear panel.
Take precautions to prevent the walls from being soiled by the Plasma Display’s exhaust outlets.
This unit incorporates glass components. Install only on flat surfaces.
Always turn every bolt by hand two to three times then check to make sure the bolt is straight.
You may tighten using a tool but do not over-tighten the bolts.
Do not use loctight or similar bonding products.
Please use M8 (P=1.25) bolts. DO NOT use any other type of bolt.
[507CMX]
12 mm to
18 mm

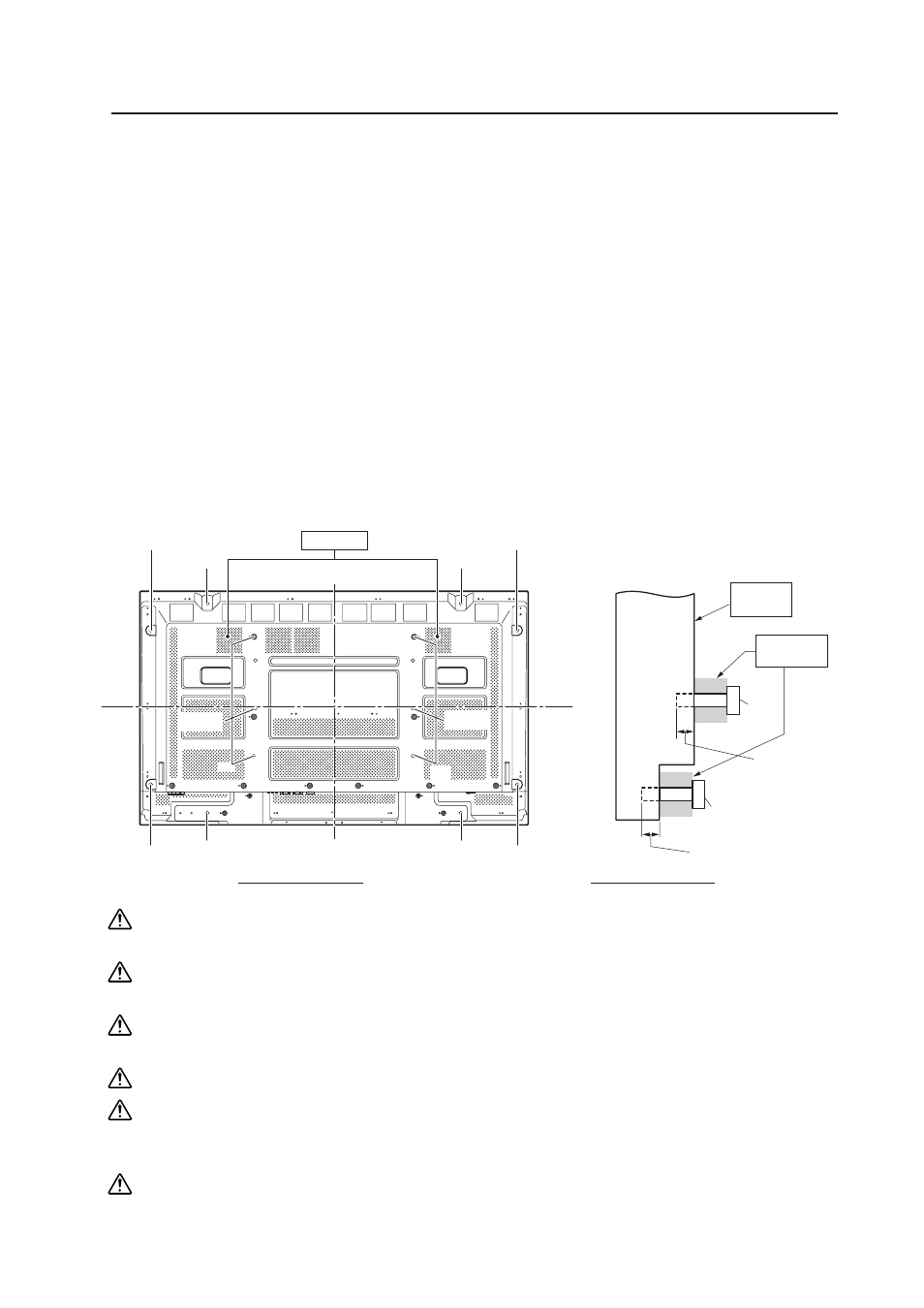

Rear view diagram Side view diagram
b hole
b hole
b hole
b hole
a holes
Center line
a Holes (10 places)
b Holes (4 places)
This unit
a hole
Bolt
Bolt
12 mm to 14 mm
Vent (fan)
Attaching
surface
Installation
bracket etc.
b hole
a holes
a hole
a hole
a hole
a hole
