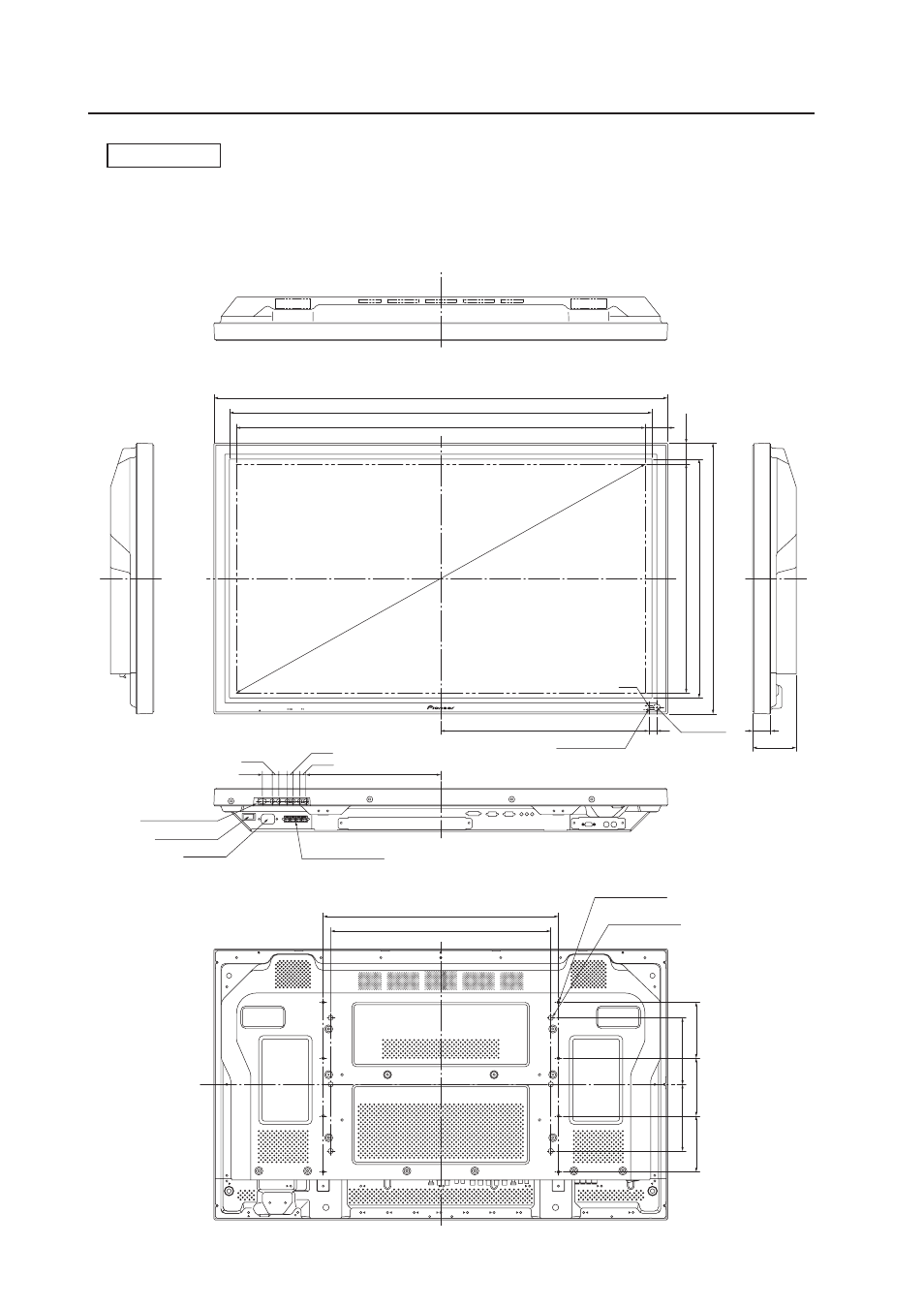

External Dimensions
PDP-427CMX
WEIGHT: 30.5 kg (67.3 lbs) (without stand)
MATERIAL: Front: Resin; Rear cover: Metal plate, Front protector panel: Glass
TREATMENT: Front: Paint; Rear cover: Paint (All paints are Pioneer original colors)
For packaging information, refer to “3.4.2 Unpacking” (pg. 30).
(Unit: mm)
952
1022
610 538
468.6 18 40.4
98
304
13.5
15
13.5
19
14.7
22.3
SPEAKER TERMINAL
POWER BUTTON
CONTROL BUTTONS
AC INLET
BOTTOM VIEW
RIGHT SIDE VIEW
TOP VIEW
LEFT SIDE VIEW
REAR VIEW
921.6(SCREEN AREA) 50.2
515.33(SCREEN AREA)
47.34
1055.89
for mount unit
6-M8 DEPTH 18
for mount unit
8-M4 DEPTH 16
150
150
126
130
126
530
496
Light sensor
Ambient light sensor
LED
